一、ElasticStack概述
1，ElasticStack组件介绍
ElasticStack分布式搜索引擎：
- 是Elastic公司开源的一套分布式系统，主要用于企业日志数据的 采集、存储、分析、可视化页面展示；
- ElasticStack提供四大核心组件；
| ElasticStack核心组件 | 中文名 | 作用价值 |
|---|---|---|
| ElasticSearch | 分布式搜索引擎 | 作用功能：【数据存储】【数据索引查询】； 能力：支持【PB级别】的数据扩展，可扩展到上百台服务器架构； |
| Beats | 轻量级数据采集器 | :one:【Filebeat】日志采集器（主讲）： :two:【Metricbeat】指标采集器： |
| Logstash | 数据处理管道（器） | 作用功能：将beat采集器采集的数据进行二次加工，再存储至ElasticSearch； |
| Kibana | 可视化数据分析平台 | 免费开源的数据分析与可视化页面展示平台，用于ElasticSearch数据的可视化展示； |

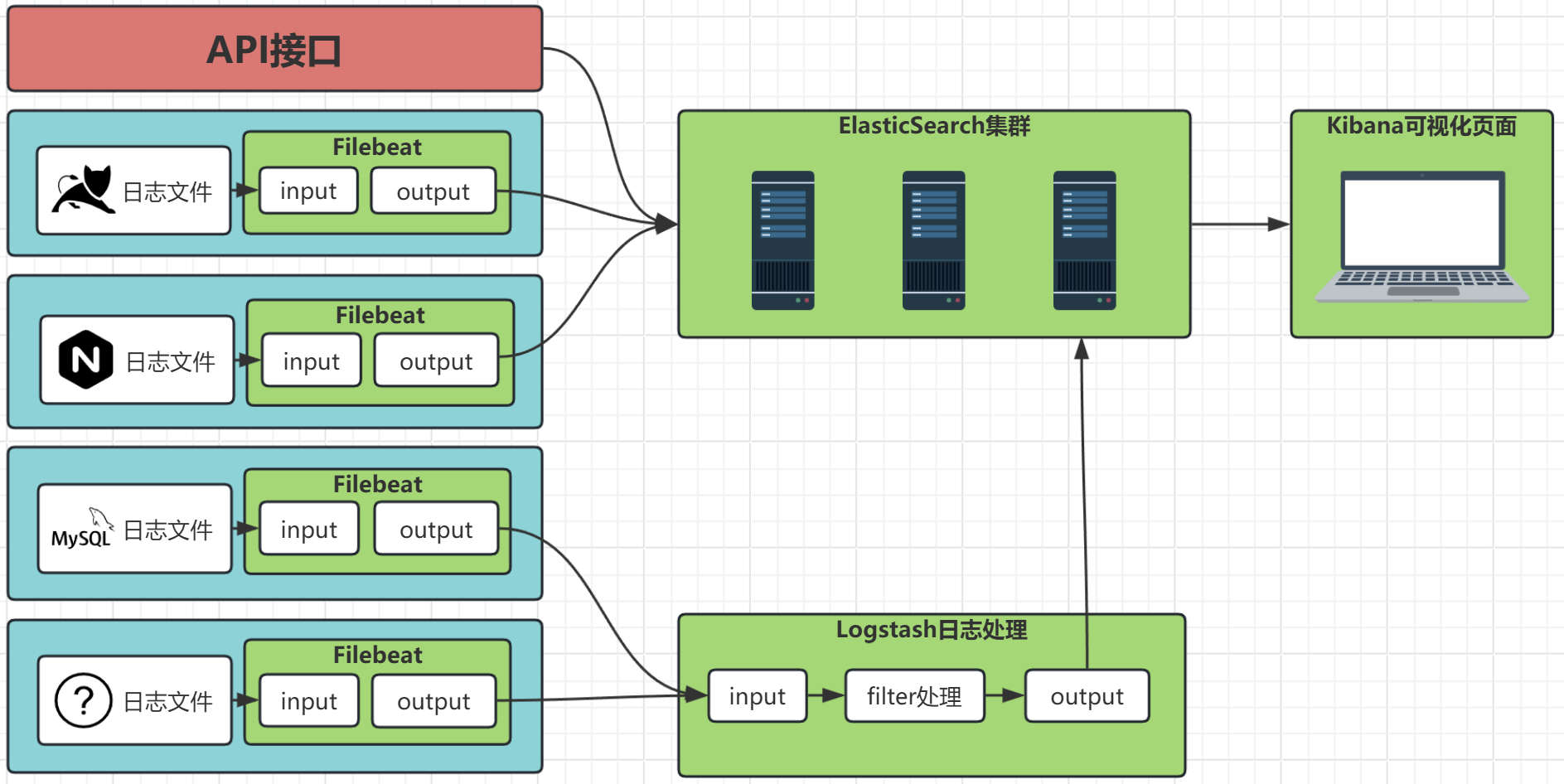

2，数据的流转方式
二、安装部署ElasticSearch
1，环境准备
· 主机准备
| 主机名 | 学习环境配置 | ip地址 |
|---|---|---|
| es01 | 学习环境：2核2g 生产环境：大于2核8g |
10.0.0.101 |
| es02 | 学习环境：2核2g 生产环境：大于2核8g |
10.0.0.102 |
| es03 | 学习环境：2核2g 生产环境：大于2核8g |
10.0.0.103 |
· 主机环境配置
1，内核参数设置
# 设置系统中，单个服务进程可以映射内存区域的最大数量（ES索引查询文件时，需要使用内存映射）
# OpenSearch官方最低要求【262144】
# ElastocSearch官方推荐 v8.16以上版本【1048576】
[root@es01:~]# echo "vm.max_map_count=262144" >> /etc/sysctl.conf
[root@es02:~]# echo "vm.max_map_count=262144" >> /etc/sysctl.conf
[root@es03:~]# echo "vm.max_map_count=262144" >> /etc/sysctl.conf
# 设置系统可以打开的文件描述符的总数；
[root@es01:~]# echo "fs.file-max=6553560" >> /etc/sysctl.conf
[root@es02:~]# echo "fs.file-max=6553560" >> /etc/sysctl.conf
[root@es03:~]# echo "fs.file-max=6553560" >> /etc/sysctl.conf
# 生效内核参数
[root@es01:~]# sysctl -p
[root@es02:~]# sysctl -p
[root@es03:~]# sysctl -p
vm.max_map_count = 262144
fs.file-max = 6553560
2，用户文件最大描述符设置
[root@es01:~]# vim /etc/security/limits.conf
[root@es02:~]# vim /etc/security/limits.conf
[root@es03:~]# vim /etc/security/limits.conf
...
elasticsearch soft nofile 65535
elasticsearch hard nofile 65535
elasticsearch soft memlock unlimited #锁定物理内存，不使用swap交换分区
elasticsearch hard memlock unlimited #锁定物理内存，不使用swap交换分区
[root@es01:~]# ulimit -n 65535
[root@es02:~]# ulimit -n 65535
[root@es03:~]# ulimit -n 65535
2，下载安装包
· 官网查看下载地址

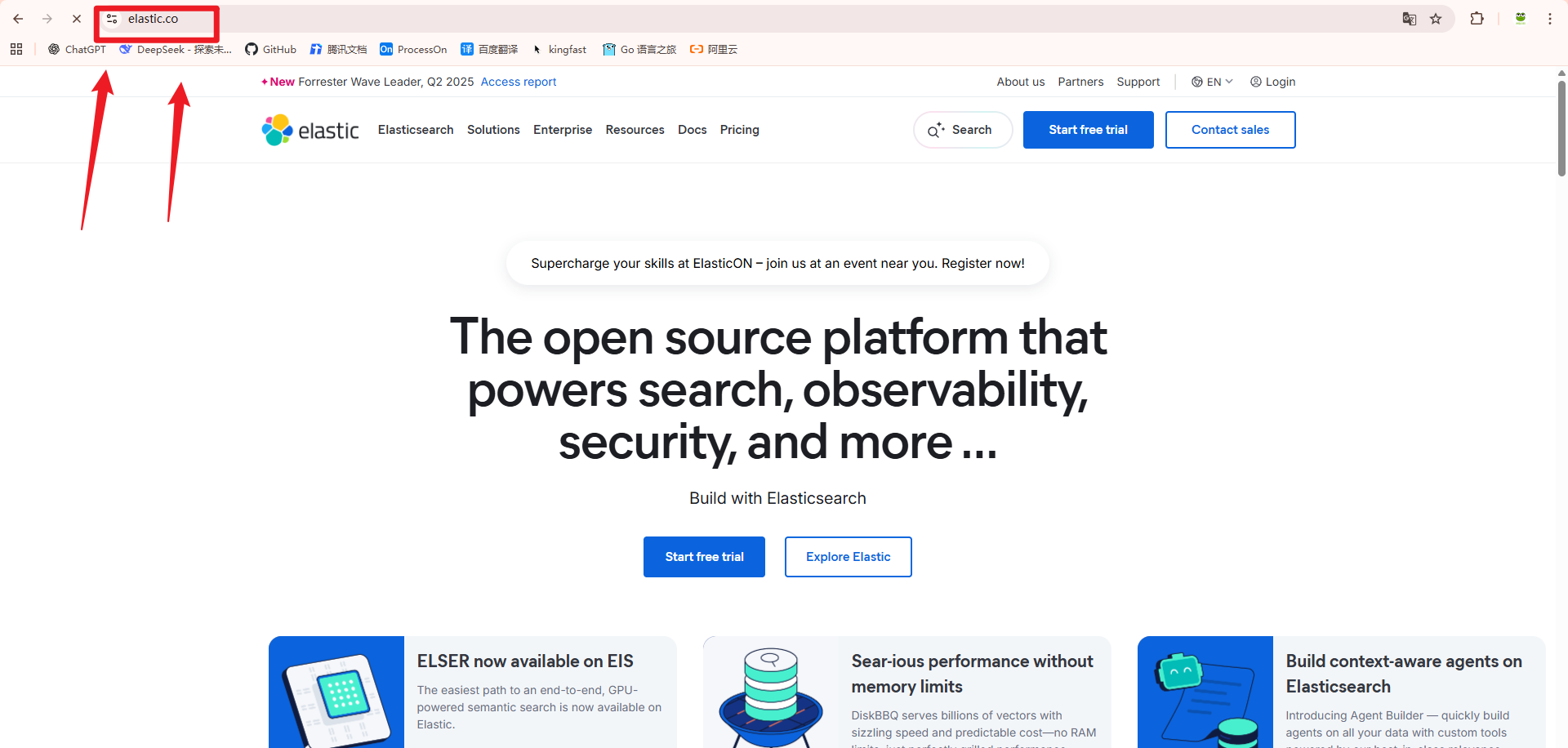

# 官网地址：
https://www.elastic.co/

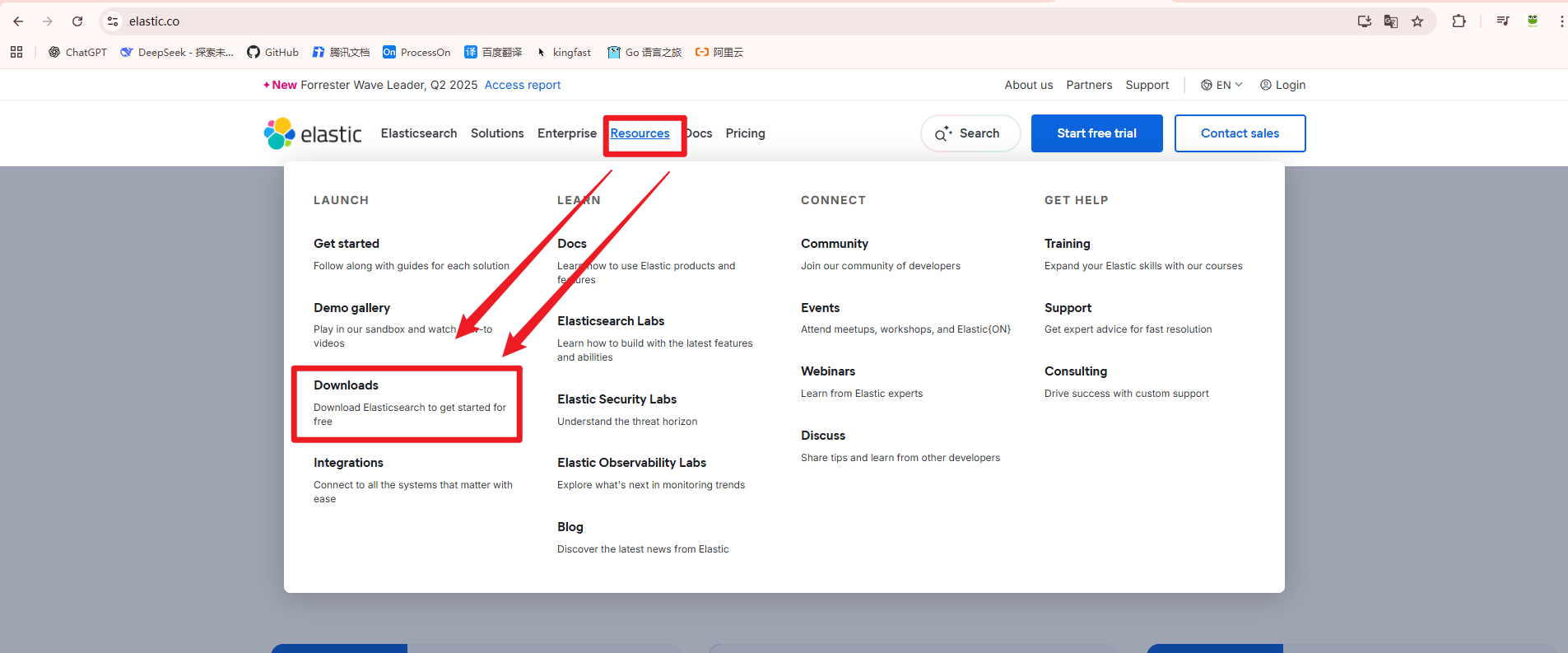

# 点击【Resources】标签
- 点击【Downloads】进入下载页面

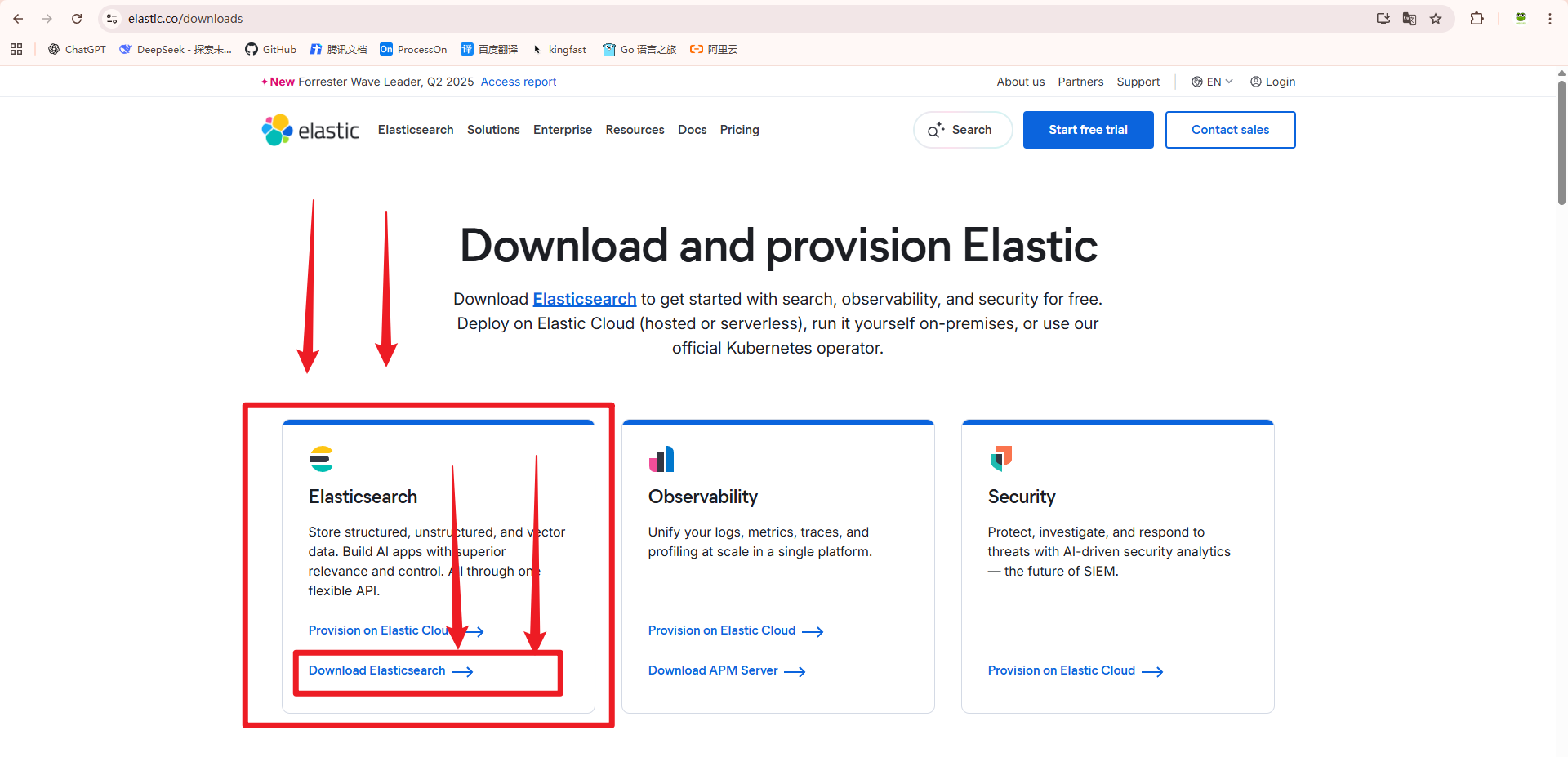

# 点击【Download Elasticsearch】，下载es

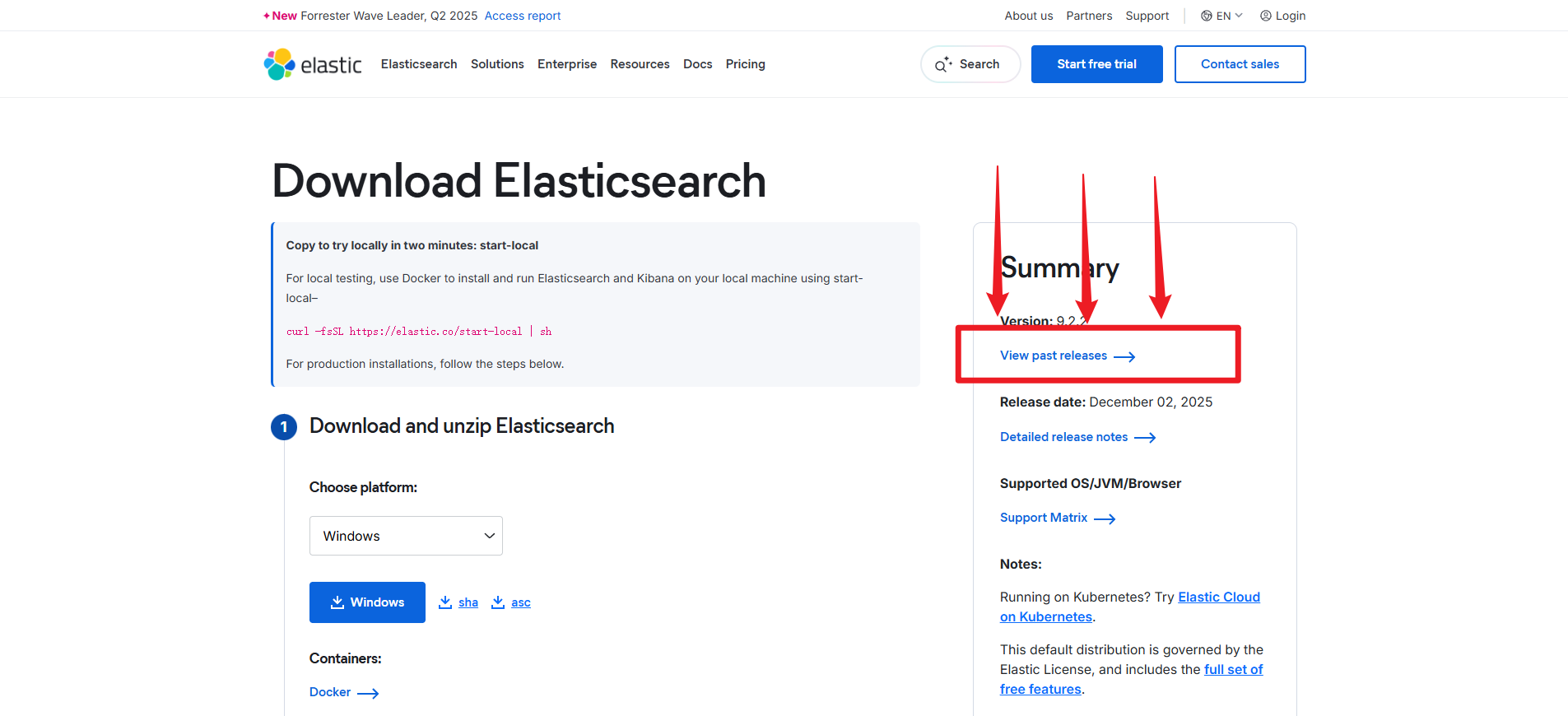

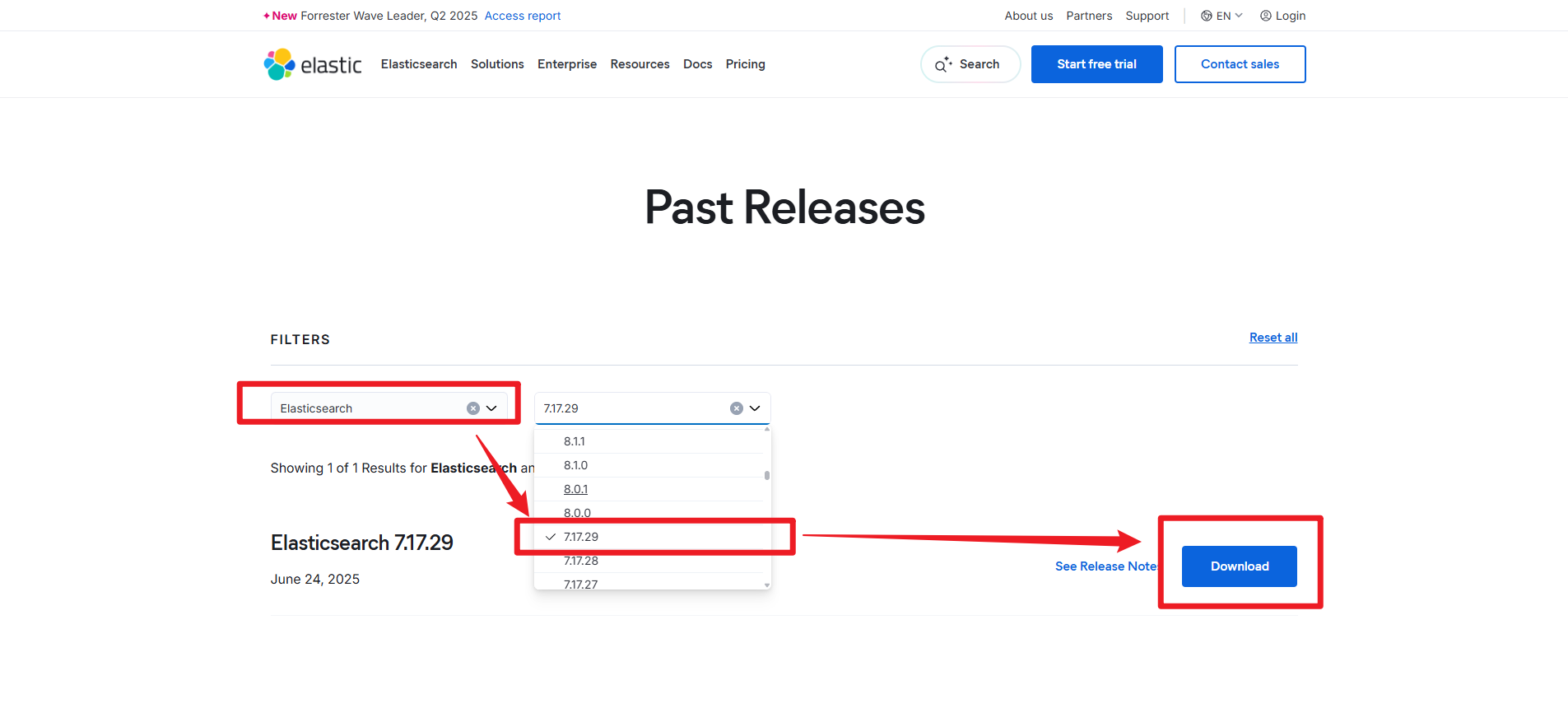

# 进入历史版本选择页面【View past releases】

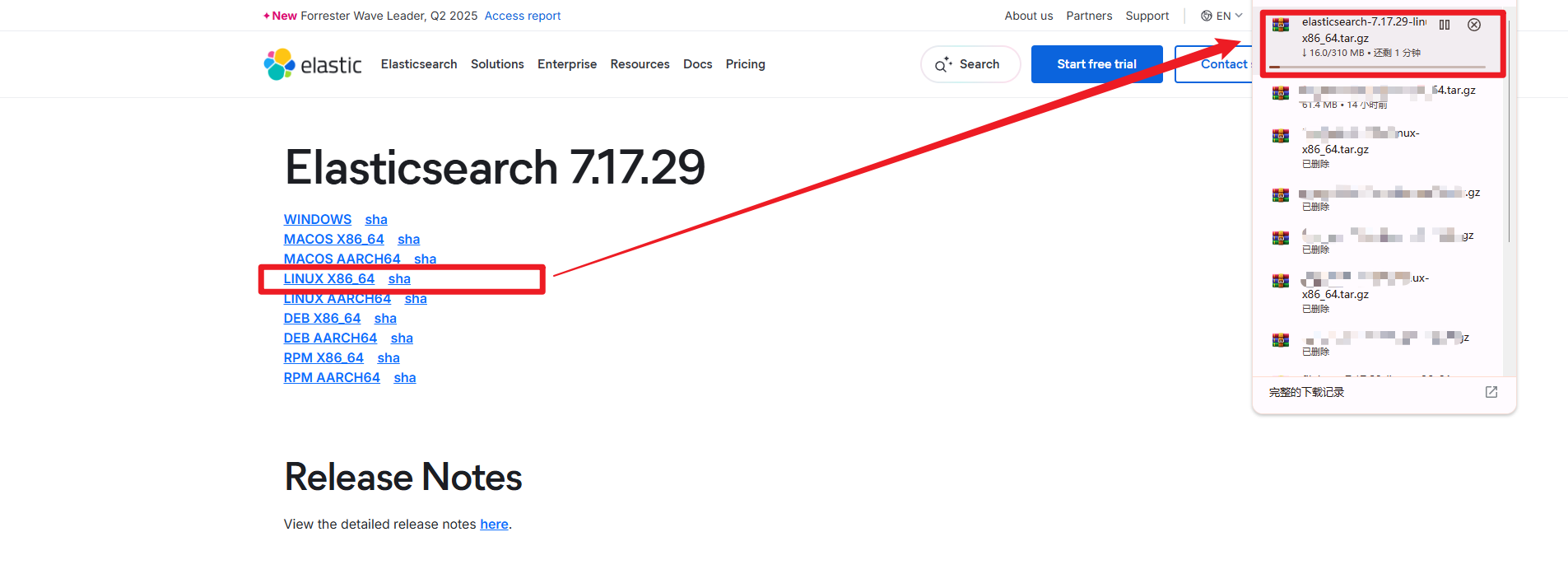

# 选择自己想要下载的版本，点击【Download】
# 选择系统架构类型，开始下载软件版
3，单点部署
· 解压安装包到工具目录
# 上传软件包
[root@es01:~]# rz -E
# 创建工具目录
[root@es01:~]# mkdir -p /tools/es
[root@es01:~]# mkdir -p /tools/es/{data,log}
# 解压安装包到工具目录
[root@es01:~]# tar xf elasticsearch-7.17.29-linux-x86_64.tar.gz -C /tools/es/
# 查看解压目录
[root@es01:~]# ls -l /tools/es/
total 12
drwxr-xr-x 2 root root 4096 Aug 8 12:22 data # 数据存储目录
drwxr-xr-x 9 root root 4096 Jun 19 09:41 elasticsearch-7.17.29
drwxr-xr-x 2 root root 4096 Aug 8 12:22 log # 日志存储目录
· 创建管理用户
# 创建虚拟用户
- 主流linux通用
[root@kibana ~ ]# useradd -r -s /bin/false elasticsearch
- 红帽系统
[root@kibana ~ ]# useradd -M -s /sbin/nologin elasticsearch
[root@es01:~]# id elasticsearch
uid=1001(elasticsearch) gid=1001(elasticsearch) groups=1001(elasticsearch)
· 生成证书
1，创建证书目录
注意：必须在安装目录的config目录下创建；否则会无法启动
[root@es01:~]# mkdir /tools/es/elasticsearch-7.17.29/config/certs/
2，生成ca证书
# 前往证书目录
[root@es01:~]# cd /tools/es/elasticsearch-7.17.29/config/certs/
# 创建 CA 私钥 (2048位)，生成ca证书有效期10年；
[root@es01:certs]# openssl req -x509 -newkey rsa:4096 -sha256 -days 3650 -nodes \
-subj "/C=CN/ST=Beijing/L=Beijing/O=bakwite/CN=Elasticsearch Root CA" \
-keyout ca.key -out ca.crt
3，生成ElasticSearch集群通讯证书
# 生成集群节点通讯证书的私钥与请求文件
[root@es01:certs]# openssl req -newkey rsa:4096 -nodes -sha256 \
-subj "/C=CN/ST=Beijing/L=Beijing/O=bakwite/CN=es-cluster" \
-addext "subjectAltName=DNS:es01,DNS:es02,DNS:es03,IP:10.0.0.101,IP:10.0.0.102,IP:10.0.0.103,IP:127.0.0.1" \
-keyout es.key -out es.csr
# 生成集群节点通讯证书
[root@es01:certs]# openssl x509 -req -in es.csr -CA ca.crt -CAkey ca.key -CAcreateserial \
-days 365 -out es.crt \
-extfile <(printf "subjectAltName=DNS:es01,DNS:es02,DNS:es03,IP:10.0.0.101,IP:10.0.0.102,IP:10.0.0.103,IP:127.0.0.1")
4，生成ElasticSearch客户端通讯证书
# 生成通用客户端证书（适用于所有客户端）
[root@es01:certs]# openssl req -newkey rsa:4096 -nodes -sha256 \
-subj "/C=CN/ST=Beijing/L=Beijing/O=bakwite/CN=Es Client" \
-addext "extendedKeyUsage=clientAuth" \
-keyout client.key -out client.csr
[root@es01:certs]# openssl x509 -req -in client.csr -CA ca.crt -CAkey ca.key \
-days 365 -out client.crt \
-extfile <(printf "extendedKeyUsage=clientAuth")
5，查看证书
[root@es01:/tools/es/cert]# ls -l
total 32
-rw-r--r-- 1 root root 2029 Aug 8 13:59 ca.crt
-rw------- 1 root root 3272 Aug 8 13:59 ca.key
-rw-r--r-- 1 root root 2017 Aug 8 14:15 client.crt
-rw-r--r-- 1 root root 1732 Aug 8 14:15 client.csr
-rw------- 1 root root 3272 Aug 8 14:15 client.key
-rw-r--r-- 1 root root 2061 Aug 8 14:11 es.crt
-rw-r--r-- 1 root root 1777 Aug 8 14:08 es.csr
-rw------- 1 root root 3272 Aug 8 14:08 es.key
· 编辑配置文件
[root@es01:~]# vim /tools/es/elasticsearch-7.17.29/config/elasticsearch.yml
###########[集群配置]#################
# 自定义集群名称
cluster.name: wa-es-cluster
# 本机节点名称
node.name: es01
# 集群主机ip列表【单点模式需要注释掉】
#discovery.seed_hosts: ["10.0.0.101", "10.0.0.102", "10.0.0.103"]
# 初始化集群，参与选举的主机【单点模式需要注释掉】
#cluster.initial_master_nodes: ["es01", "es02", "es03"]
# 集群模式[默认是集群模式（注释掉），单点模式需要启用]
discovery.type: single-node
###########[网络配置]#################
# 服务监听ip地址(用户从那张网卡进来)
network.host: 0.0.0.0
# 服务监听端口
http.port: 9200
# 集群通讯端口
transport.tcp.port: 9300
###########[存储配置]#################
# 数据存储路径\日志存储路径配置
path.data: /tools/es/data/
path.logs: /tools/es/log/
###########[性能配置]#################
# 锁定物理内存，不允许使用交换分区swap
bootstrap.memory_lock: true
###########[安全配置]#################
# 开启安全组件功能
xpack.security.enabled: true
# 节点间通信 (Transport层) ,
xpack.security.transport.ssl.enabled: true
# 验证证书是否过期，但是不验证CN；
xpack.security.transport.ssl.verification_mode: certificate
xpack.security.transport.ssl.certificate: /tools/es/elasticsearch-7.17.29/config/certs/es.crt
xpack.security.transport.ssl.key: /tools/es/elasticsearch-7.17.29/config/certs/es.key
xpack.security.transport.ssl.certificate_authorities: /tools/es/elasticsearch-7.17.29/config/certs/ca.crt
# HTTP API (REST层) ==========
xpack.security.http.ssl.enabled: true
# 是否要求客户端提供证书进行双向加密，[双向加密；required][单向加密：none]
xpack.security.http.ssl.client_authentication: none
xpack.security.http.ssl.certificate: /tools/es/elasticsearch-7.17.29/config/certs/es.crt
xpack.security.http.ssl.key: /tools/es/elasticsearch-7.17.29/config/certs/es.key
xpack.security.http.ssl.certificate_authorities: /tools/es/elasticsearch-7.17.29/config/certs/ca.crt
· 目录授权
[root@es01:~]# chown -R elasticsearch.elasticsearch /tools/es/
[root@es01:~]# ls -l /tools/es/
total 12
drwxr-xr-x 2 elasticsearch elasticsearch 4096 Aug 8 12:22 data
drwxr-xr-x 9 elasticsearch elasticsearch 4096 Jun 19 09:41 elasticsearch-7.17.29
drwxr-xr-x 2 elasticsearch elasticsearch 4096 Aug 8 12:22 log
· 配置system启动
1，编辑system启动文件
[root@es01:~]# vim /lib/systemd/system/elasticsearch.service
[Unit]
Description=Elasticsearch Service
After=network.target
[Service]
Type=simple
User=elasticsearch
Group=elasticsearch
# 环境变量 - 正确
Environment="ES_HOME=/tools/es/elasticsearch-7.17.29"
Environment="ES_PATH_CONF=/tools/es/elasticsearch-7.17.29/config"
Environment="ES_JAVA_HOME=/tools/es/elasticsearch-7.17.29/jdk"
# 修复：创建PID目录并设置权限
PermissionsStartOnly=true
# 修复：使用标准PID路径
ExecStart=/tools/es/elasticsearch-7.17.29/bin/elasticsearch -p /tools/es/log/elasticsearch.pid
# 修复：停止时清理PID文件
ExecStop=/bin/rm -f /tools/es/log/elasticsearch.pid
# 资源限制
LimitNOFILE=65536
# 锁定物理内存
LimitMEMLOCK=infinity
# 重启策略
Restart=on-failure
RestartSec=60s
[Install]
WantedBy=multi-user.target
2，启动
[root@es01:~]# systemctl daemon-reload
[root@es01:~]# systemctl enable --now elasticsearch.service
[root@es01:~]# systemctl status elasticsearch.service

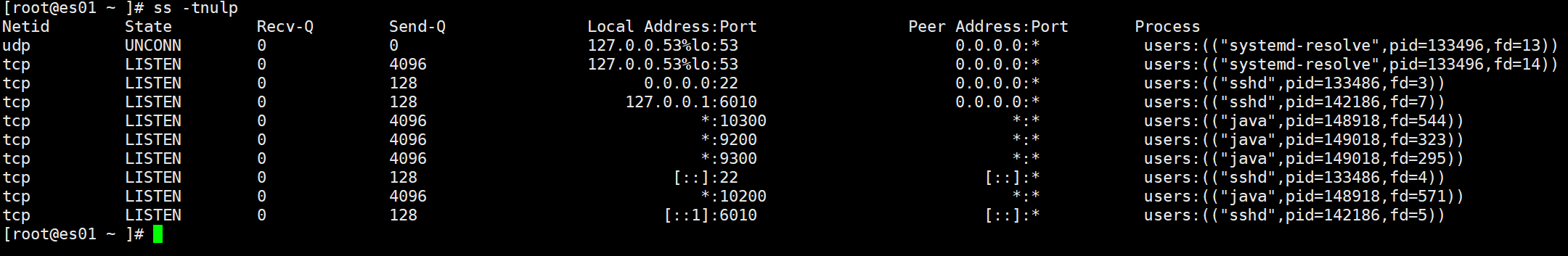

3，查看端口信息
[root@es01:~]# netstat -tnulp
......
tcp6 0 0 :::9200 :::* LISTEN 131683/java
tcp6 0 0 :::9300 :::* LISTEN 131683/java
......
· 设置所有内置用户的密码
我们统一设置为：123456
# 前往命令路径下
[root@es01:~]# cd /tools/es/elasticsearch-7.17.29/bin/
# 手动设置内置用户的密码：123456
[root@es01:bin]# ./elasticsearch-setup-passwords interactive
......
Please confirm that you would like to continue [y/N]y
Enter password for [elastic]:
Reenter password for [elastic]:
Enter password for [apm_system]:
Reenter password for [apm_system]:
Enter password for [kibana_system]:
Reenter password for [kibana_system]:
Enter password for [logstash_system]:
Reenter password for [logstash_system]:
Enter password for [beats_system]:
Reenter password for [beats_system]:
Enter password for [remote_monitoring_user]:
Reenter password for [remote_monitoring_user]:
Changed password for user [apm_system]
Changed password for user [kibana_system]
Changed password for user [kibana]
Changed password for user [logstash_system]
Changed password for user [beats_system]
Changed password for user [remote_monitoring_user]
Changed password for user [elastic]
· 测试访问elasticserach

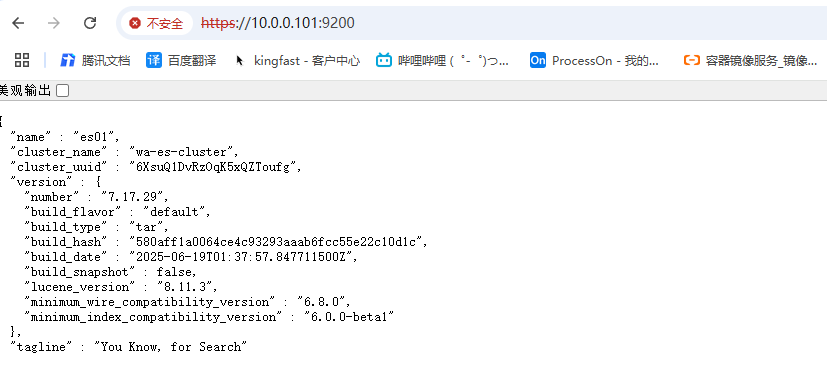

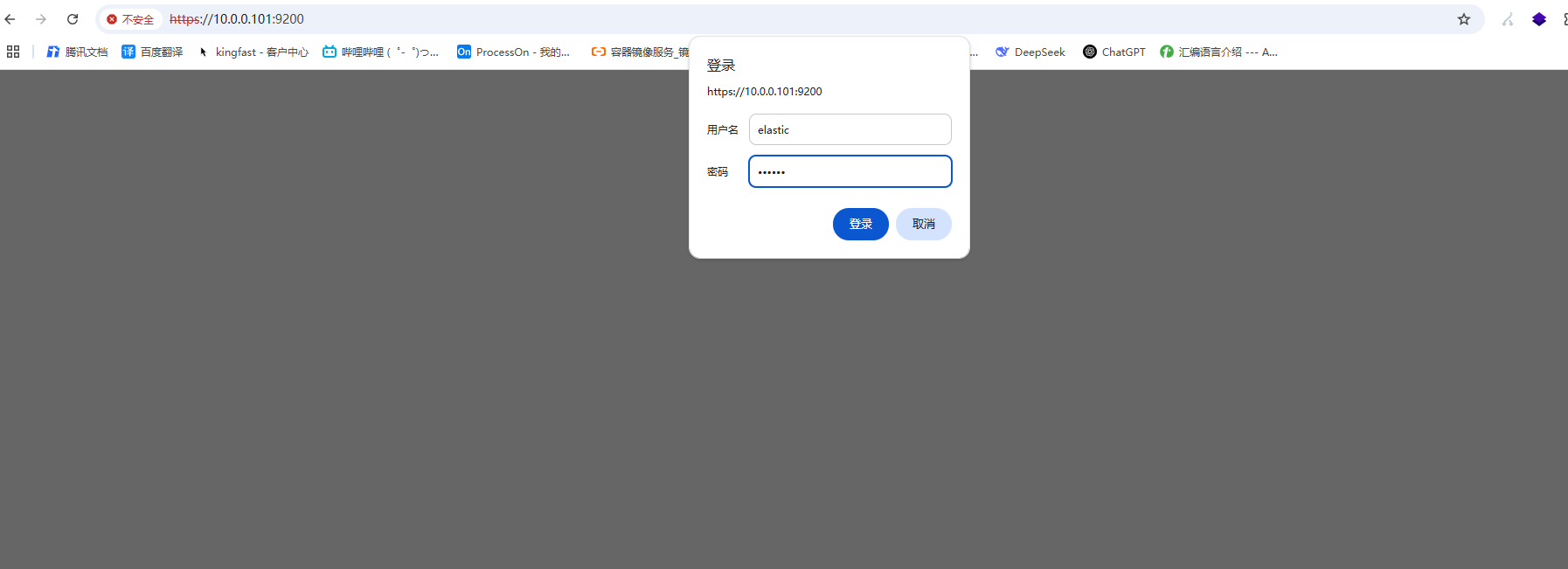

1，浏览器测试访问
https://10.0.0.101:9200/
# 输入用户名和密码
elastic
123456
2，curl命令测试访问
# 使用 API 测试登录
[root@es01:~]# curl -u elastic:123456 --cacert /tools/es/elasticsearch-7.17.29/config/certs/ca.crt -X GET https://10.0.0.101:9200
- 或者不验证证书【-k】
[root@es01:~]# curl -u elastic:123456 -k -X GET https://10.0.0.101:9200
{
"name" : "es01",
"cluster_name" : "wa-es-cluster",
"cluster_uuid" : "6XsuQ1DvRzOqK5xQZToufg",
"version" : {
"number" : "7.17.29",
"build_flavor" : "default",
"build_type" : "tar",
"build_hash" : "580aff1a0064ce4c93293aaab6fcc55e22c10d1c",
"build_date" : "2025-06-19T01:37:57.847711500Z",
"build_snapshot" : false,
"lucene_version" : "8.11.3",
"minimum_wire_compatibility_version" : "6.8.0",
"minimum_index_compatibility_version" : "6.0.0-beta1"
},
"tagline" : "You Know, for Search"
}
· 查看集群的节点数量
[root@es01:~]# curl -k -u elastic:123456 -X GET https://10.0.0.101:9200/_cat/nodes
10.0.0.101 30 79 0 0.02 0.01 0.06 cdfhilmrstw * es01
4，部署报错排查技巧
· 前台执行查看报错位置
# 使用elasticsearch，前台运行，查看过程；
[root@es01:~]# sudo -u elasticsearch /tools/es/elasticsearch-7.17.29/bin/elasticsearch
· 查看启动日志信息
[root@es01:~]# ls -l /tools/es/log/
...
-rw-r--r-- 1 elasticsearch elasticsearch 6 Aug 8 17:43 elasticsearch.pid
# 审计日志，
-rw-r--r-- 1 elasticsearch elasticsearch 0 Aug 8 17:04 wa-es-cluster_audit.json
# API语法的弃用警告日志；
-rw-r--r-- 1 elasticsearch elasticsearch 0 Aug 8 17:04 wa-es-cluster_deprecation.json
-rw-r--r-- 1 elasticsearch elasticsearch 0 Aug 8 17:04 wa-es-cluster_deprecation.log
# 索引慢日志
-rw-r--r-- 1 elasticsearch elasticsearch 0 Aug 8 17:04 wa-es-cluster_index_indexing_slowlog.json
-rw-r--r-- 1 elasticsearch elasticsearch 0 Aug 8 17:04 wa-es-cluster_index_indexing_slowlog.log
# 查询慢日志
-rw-r--r-- 1 elasticsearch elasticsearch 0 Aug 8 17:04 wa-es-cluster_index_search_slowlog.json
-rw-r--r-- 1 elasticsearch elasticsearch 0 Aug 8 17:04 wa-es-cluster_index_search_slowlog.log
# 集群的【主运行日志】，记录了ElasticSearch的所有操作日志；【文本格式】
-rw-r--r-- 1 elasticsearch elasticsearch 776775 Aug 8 17:54 wa-es-cluster.log
# 集群的【主运行日志】，记录了ElasticSearch的所有操作日志；【Json格式】
-rw-r--r-- 1 elasticsearch elasticsearch 1083829 Aug 8 17:54 wa-es-cluster_server.json
5，集群部署
· 停止单点节点
# 停止单点服务
[root@es01:~]# systemctl stop elasticsearch.service
# 输出日志和数据目录
[root@es01:~]# rm -rf /tools/es/data/*
[root@es01:~]# rm -rf /tools/es/log/*
· 修改配置文件
[root@es01:~]# cat /tools/es/elasticsearch-7.17.29/config/elasticsearch.yml
###########[集群配置]#################
# 自定义集群名称(集群中必须一致)
cluster.name: wa-es-cluster
# 本机节点名称
node.name: es01
# 集群主机ip列表【单点模式需要注释掉】
discovery.seed_hosts: ["10.0.0.101:9300", "10.0.0.102:9300", "10.0.0.103:9300"]
# 初始主机点参与选举的主机【单点模式需要注释掉】
cluster.initial_master_nodes: ["es01", "es02", "es03"]
# 该主机的角色配置：可以成为什么角色？
# 【master主节点】表示可以成为主节点，管理整个集群
# 【data写数据节点】表示可以成为数据节点；文档数据的增删改查；
# 【ingest】可以可以成为接收、预处理节点；
# 【node.roles: []】：设置为空表示只作为协调节点使用；
node.roles: ["master","data","ingest"]
# 选举前提：必须有2个节点启动才能进行选举（防止脑裂）
# 值的设置：【(集群节点数/2)+1】
# 注意：【es8.x】版本不需要设置，会自动处理；
discovery.zen.minimum_master_nodes: 2
# 集群模式[默认是集群模式（注释掉），单点模式需要启用]
#discovery.type: single-node
###########[网络配置]#################
# 服务监听ip地址(用户从那张网卡进来)
network.host: 0.0.0.0
# 服务监听端口
http.port: 9200
# 集群通讯端口
transport.tcp.port: 9300
###########[存储配置]#################
# 数据存储路径\日志存储路径配置
path.data: /tools/es/data/
path.logs: /tools/es/log/
###########[性能配置]#################
# 锁定物理内存，不允许使用交换分区swap
bootstrap.memory_lock: true
###########[安全配置]#################
# 开启安全组件功能（es8.x版本默认就是开启的）
xpack.security.enabled: true
# 节点间通信 (Transport层) ,
xpack.security.transport.ssl.enabled: true
# 验证证书是否过期，但是不验证CN；[full]:表示验证CN，[certificate]表示只验证证书有效性
xpack.security.transport.ssl.verification_mode: certificate
xpack.security.transport.ssl.certificate: /tools/es/elasticsearch-7.17.29/config/certs/es.crt
xpack.security.transport.ssl.key: /tools/es/elasticsearch-7.17.29/config/certs/es.key
xpack.security.transport.ssl.certificate_authorities: /tools/es/elasticsearch-7.17.29/config/certs/ca.crt
# HTTP API (REST层) ==========
xpack.security.http.ssl.enabled: true
# 是否要求客户端提供证书进行双向加密，[双向加密；required][单向加密：none]
xpack.security.http.ssl.client_authentication: none
xpack.security.http.ssl.certificate: /tools/es/elasticsearch-7.17.29/config/certs/es.crt
xpack.security.http.ssl.key: /tools/es/elasticsearch-7.17.29/config/certs/es.key
# 证书的认证ca机构
xpack.security.http.ssl.certificate_authorities: /tools/es/elasticsearch-7.17.29/config/certs/ca.crt
· 将目录拷贝到其他节点
1，拷贝程序代码到其他主机
[root@es01:~]# scp -r /tools 10.0.0.102:/
[root@es01:~]# scp -r /tools 10.0.0.103:/
2，拷贝systemctl启动文件到其他主机
[root@es01:~]# scp /lib/systemd/system/elasticsearch.service 10.0.0.102:/lib/systemd/system/
[root@es01:~]# scp /lib/systemd/system/elasticsearch.service 10.0.0.103:/lib/systemd/system/
· 其他节点创建用户与授权目录
1，其他节点创建用户
[root@es02:~]# useradd -s /sbin/nologin -M elasticsearch
[root@es03:~]# useradd -s /sbin/nologin -M elasticsearch
2，其他节点目录授权
[root@es02:~]# chown -R elasticsearch.elasticsearch /tools/es/
[root@es03:~]# chown -R elasticsearch.elasticsearch /tools/es/
· 其他节点编辑配置文件
[root@es02:~]# vim /tools/es/elasticsearch-7.17.29/config/elasticsearch.yml
......
# 本机节点名称
node.name: es02
......
[root@es03:~]# vim /tools/es/elasticsearch-7.17.29/config/elasticsearch.yml
......
# 本机节点名称
node.name: es03
......
· 集群主机全部启动
[root@es01:~]# systemctl daemon-reload
[root@es02:~]# systemctl daemon-reload
[root@es03:~]# systemctl daemon-reload
# 启动
[root@es01:~]# systemctl enable --now elasticsearch.service
[root@es02:~]# systemctl enable --now elasticsearch.service
[root@es03:~]# systemctl enable --now elasticsearch.service
# 查看端口
[root@es01:~]# netstat -tnulp
[root@es02:~]# netstat -tnulp
[root@es03:~]# netstat -tnulp
......
tcp6 0 0 :::9300 :::* LISTEN 114788/java
tcp6 0 0 :::9200 :::* LISTEN 114788/java
......
· 随便一个节点设置密码
密码设置成：123456
[root@es02:~]# /tools/es/elasticsearch-7.17.29/bin/elasticsearch-setup-passwords interactive
Initiating the setup of passwords for reserved users elastic,apm_system,kibana,kibana_system,logstash_system,beats_system,remote_monitoring_user.
You will be prompted to enter passwords as the process progresses.
Please confirm that you would like to continue [y/N]y
Enter password for [elastic]:
Reenter password for [elastic]:
Enter password for [apm_system]:
Reenter password for [apm_system]:
Enter password for [kibana_system]:
Reenter password for [kibana_system]:
Enter password for [logstash_system]:
Reenter password for [logstash_system]:
Enter password for [beats_system]:
Reenter password for [beats_system]:
Enter password for [remote_monitoring_user]:
Reenter password for [remote_monitoring_user]:
Changed password for user [apm_system]
Changed password for user [kibana_system]
Changed password for user [kibana]
Changed password for user [logstash_system]
Changed password for user [beats_system]
Changed password for user [remote_monitoring_user]
Changed password for user [elastic]
· curl命令测试
1，查看集群列表
# 查看集群列表的详细信息
[root@es03:~]# curl -k -u elastic:123456 -X GET https://10.0.0.103:9200/_cat/nodes
10.0.0.102 5 95 1 0.02 0.06 0.02 cdfhilmrstw * es02
10.0.0.101 8 86 0 0.12 0.08 0.02 cdfhilmrstw - es01
10.0.0.103 28 95 2 0.00 0.04 0.01 cdfhilmrstw - es03
# 查看集群列表的详细信息
[root@es03:~]# curl -k -u elastic:123456 -X GET "https://10.0.0.102:9200/_cat/nodes?v"
ip heap.percent ram.percent cpu load_1m load_5m load_15m node.role master name
10.0.0.103 12 95 0 0.00 0.00 0.00 cdfhilmrstw - es03
10.0.0.102 38 95 0 0.06 0.02 0.00 cdfhilmrstw * es02
10.0.0.101 40 89 0 0.00 0.00 0.00 cdfhilmrstw - es01
2，查看集群健康状态
# 查看集群的健康状态
[root@es02:~]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/_cluster/health?pretty"
{
"cluster_name" : "wa-es-cluster",
"status" : "green",
"timed_out" : false,
"number_of_nodes" : 3,
"number_of_data_nodes" : 3,
"active_primary_shards" : 3,
"active_shards" : 6,
"relocating_shards" : 0,
"initializing_shards" : 0,
"unassigned_shards" : 0,
"delayed_unassigned_shards" : 0,
"number_of_pending_tasks" : 0,
"number_of_in_flight_fetch" : 0,
"task_max_waiting_in_queue_millis" : 0,
"active_shards_percent_as_number" : 100.0
}
3，访问集群单一节点测试
会发现：集群名称与UUID相同；
- cluster_name ：集群名称
- cluster_uuid ：集群id
[root@es03:~]# curl -k -u elastic:123456 -X GET https://10.0.0.101:9200
{
"name" : "es01",
"cluster_name" : "wa-es-cluster",
"cluster_uuid" : "jpjW-ASyRLagK0gdBRwZ9Q",
"version" : {
"number" : "7.17.29",
"build_flavor" : "default",
"build_type" : "tar",
"build_hash" : "580aff1a0064ce4c93293aaab6fcc55e22c10d1c",
"build_date" : "2025-06-19T01:37:57.847711500Z",
"build_snapshot" : false,
"lucene_version" : "8.11.3",
"minimum_wire_compatibility_version" : "6.8.0",
"minimum_index_compatibility_version" : "6.0.0-beta1"
},
"tagline" : "You Know, for Search"
}
[root@es03:~]# curl -k -u elastic:123456 -X GET https://10.0.0.102:9200
{
"name" : "es02",
"cluster_name" : "wa-es-cluster",
"cluster_uuid" : "jpjW-ASyRLagK0gdBRwZ9Q",
"version" : {
"number" : "7.17.29",
"build_flavor" : "default",
"build_type" : "tar",
"build_hash" : "580aff1a0064ce4c93293aaab6fcc55e22c10d1c",
"build_date" : "2025-06-19T01:37:57.847711500Z",
"build_snapshot" : false,
"lucene_version" : "8.11.3",
"minimum_wire_compatibility_version" : "6.8.0",
"minimum_index_compatibility_version" : "6.0.0-beta1"
},
"tagline" : "You Know, for Search"
}
[root@es03:~]# curl -k -u elastic:123456 -X GET https://10.0.0.103:9200
{
"name" : "es03",
"cluster_name" : "wa-es-cluster",
"cluster_uuid" : "jpjW-ASyRLagK0gdBRwZ9Q",
"version" : {
"number" : "7.17.29",
"build_flavor" : "default",
"build_type" : "tar",
"build_hash" : "580aff1a0064ce4c93293aaab6fcc55e22c10d1c",
"build_date" : "2025-06-19T01:37:57.847711500Z",
"build_snapshot" : false,
"lucene_version" : "8.11.3",
"minimum_wire_compatibility_version" : "6.8.0",
"minimum_index_compatibility_version" : "6.0.0-beta1"
},
"tagline" : "You Know, for Search"
}
三、集群信息查看
1，查看集群健康状态
| 字段 | 解释说明 | |
|---|---|---|
| epoch | 检查的时间戳信息 | |
| timestamp | 时间格式显示检查时间 | |
| cluster | 集群的名称 | |
| status | 集群健康状态： :one:green（绿色）：所有主分片和副本分片均正常运行（最健康）。 :two: yellow（黄色）：所有主分片正常，但部分副本分片未分配。 :three: red（红色）：存在未分配的主分片（数据不完整）。 |
|
| node.total | 集群总节点数量 | |
| node.data | 集群数据节点数量 | |
| shards | 总的分片数量（主分片+副本分片的总和） | |
| pri | 主分片数量（primary shards） | |
| relo | 正在迁移的分片数（relocating），节点间数据迁移中； | |
| init | 初始化的分片数；（initialing），新分片正在创建； | |
| unassign | 未分配的分片数（unassigned）。待分配到节点的分片； | |
| pending_tasks | 待处理的任务数量（如，分片的分配，创建索引等队列任务） | |
| max_task_wait_time | 最大任务等待时间； | |
| active_shards_percent | 已经激活的分片数，占总分片数的百分比； |
[root@es03:~]# curl -k -u elastic:123456 -X GET "https://10.0.0.102:9200/_cat/health?v"
2，查看集群单一节点运行状态
| curl命令参数 | 解释说明 | 举例 |
|---|---|---|
| -u | 携带【用户名：密码】进行访问 | -u elastic:123456 |
| -k | 表示不验证对方ca证书的有效性 | |
| --cacert | 表示验证对方的ca证书的有效性 | --cacert /tools/es/elasticsearch-7.17.29/config/cert/ca.crt |
| -X | 表示指定http的请求方法 | -X GET/POST/PUT/DELETE...... |
# 查看集群的健康状态
[root@es01:~]# curl --cacert /tools/es/elasticsearch-7.17.29/config/certs/ca.crt -u elastic:123456 -X GET "https://10.0.0.103:9200/_cluster/health?pretty"
- 或者：
[root@es02:~]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/_cluster/health?pretty"
{
"cluster_name" : "wa-es-cluster",
"status" : "green",
"timed_out" : false,
"number_of_nodes" : 3,
"number_of_data_nodes" : 3,
"active_primary_shards" : 3,
"active_shards" : 6,
"relocating_shards" : 0,
"initializing_shards" : 0,
"unassigned_shards" : 0,
"delayed_unassigned_shards" : 0,
"number_of_pending_tasks" : 0,
"number_of_in_flight_fetch" : 0,
"task_max_waiting_in_queue_millis" : 0,
"active_shards_percent_as_number" : 100.0
}
| json字段 | 解释说明 |
|---|---|
| "cluster_name" : "wa-es-cluster", | 集群名称 |
| "status" : "green", | 集群健康状态： :one:green（绿色）：所有主分片和副本分片均正常运行（最健康）。 :two: yellow（黄色）：所有主分片正常，但部分副本分片未分配。 :three: red（红色）：存在未分配的主分片（数据不完整）。 |
| "timed_out" : false, | 请求是否超时。false表示在预期时间内成功返回结果 |
| "number_of_nodes" : 3, | 集群中的节点总数（包括主节点、数据节点、协调节点等）。 |
| "number_of_data_nodes" : 3, | 专用于存储数据的节点数量（排除仅作为主节点或协调节点的实例）. |
| "active_primary_shards" : 3, | 活跃的主分片数量（每个索引至少有一个主分片，负责写入和查询）。 |
| "active_shards" : 6, | 所有活跃分片总数（包括主分片 + 副本分片） |
| "relocating_shards" : 0, | 正在迁移的分片数量（例如节点下线后，其分片会被迁移到其他节点）。 |
| "initializing_shards" : 0, | 正在初始化的分片数量（新创建索引或分片恢复时的临时状态）。 |
| "unassigned_shards" : 0, | 未分配的分片数量（通常因节点不足或配置错误导致）。 |
| "delayed_unassigned_shards" : 0, | 因延迟分配策略（如节点重启）而暂未分配的分片数量。 |
| "number_of_pending_tasks" : 0, | 等待执行的集群级任务数量（如分片分配、索引创建等）。非零值可能影响性能。 |
| "number_of_in_flight_fetch" : 0, | 正在进行的分片元数据同步操作数量（内部机制使用）。 |
| "task_max_waiting_in_queue_millis" : 0, | 任务队列中最长等待时间（毫秒）。数值高表示集群任务繁忙。 |
| "active_shards_percent_as_number" : 100.0 | 活跃分片占总分片的百分比。100% 表示全部分片均正常运行。 |
3，查看集群节点列表
| 字段解释 | 解释说明 |
|---|---|
| ip | 节点的ip地址 |
| heap.percent | JVM 堆内存的使用百分比 |
| ram.percent | 系统物理内存使用百分比 |
| cpu | es平均使用cpu百分比 |
| load_1m、load_5m、load_15m | 系统负载，与top命令的负载一个意思； |
| node.role | 节点扮演的角色【cdfhilmrstw】表示： c：code，冷数据节点 d：data，数据节点，存储索引分片 f：frozen，冻结数据节点，用于可搜索的快照 h：hot，热数据节点 i：ingest，摄取节点，了运行预处理管道 l：machine_learning，机器学习节点 m：master，在于选举master的节点 r：remote_cluster_client，远程集群客户端节点，可以远程连接集群 s：content，内容节点（表示date+ingest） t：transform，转换节点，运行transform任务 v：voting_only，进投票节点，参与主节点的选举，但是不在选； w：warm，温数据节点 |
| master | 表示该节点是否是master 【*】表示是master 【-】表示不是master |
| name | 节点名称，配置文件中的node.name所写的内容； |
# 查看集群列表的详细信息
[root@es03:~]# curl -k -u elastic:123456 -X GET https://10.0.0.103:9200/_cat/nodes
10.0.0.102 5 95 1 0.02 0.06 0.02 cdfhilmrstw * es02
10.0.0.101 8 86 0 0.12 0.08 0.02 cdfhilmrstw - es01
10.0.0.103 28 95 2 0.00 0.04 0.01 cdfhilmrstw - es03
# 查看集群列表的详细信息
[root@es03:~]# curl -k -u elastic:123456 -X GET "https://10.0.0.102:9200/_cat/nodes?v"
ip heap.percent ram.percent cpu load_1m load_5m load_15m node.role master name
10.0.0.103 12 95 0 0.00 0.00 0.00 cdfhilmrstw - es03
10.0.0.102 38 95 0 0.06 0.02 0.00 cdfhilmrstw * es02
10.0.0.101 40 89 0 0.00 0.00 0.00 cdfhilmrstw - es01
4，查看集群单一节点信息
| 字段 | 解释说明 |
|---|---|
| "name" : "es03", | 节点名称 |
| "cluster_name" : "wa-es-cluster", | 集群名称 |
| "cluster_uuid" : "jpjW-ASyRLagK0gdBRwZ9Q", | 集群的唯一标识：【UUID】 |
| "version" : { "number" : "7.17.29", "build_flavor" : "default", "build_type" : "tar", "build_hash" : "580aff1a0064ce4c93293aaab6fcc55e22c10d1c", "build_date" : "2025-06-19T01:37:57.847711500Z", "build_snapshot" : false, "lucene_version" : "8.11.3", "minimum_wire_compatibility_version" : "6.8.0", "minimum_index_compatibility_version" : "6.0.0-beta1" }, |
ES版本信息 |
| "tagline" : "You Know, for Search" | ES官方的slogen，致敬1984年苹果的广告语 含义：【去寻找你想知道的结果】 |
[root@es03:~]# curl -k -u elastic:123456 -X GET https://10.0.0.103:9200
{
"name" : "es03",
"cluster_name" : "wa-es-cluster",
"cluster_uuid" : "jpjW-ASyRLagK0gdBRwZ9Q",
"version" : {
"number" : "7.17.29",
"build_flavor" : "default",
"build_type" : "tar",
"build_hash" : "580aff1a0064ce4c93293aaab6fcc55e22c10d1c",
"build_date" : "2025-06-19T01:37:57.847711500Z",
"build_snapshot" : false,
"lucene_version" : "8.11.3",
"minimum_wire_compatibility_version" : "6.8.0",
"minimum_index_compatibility_version" : "6.0.0-beta1"
},
"tagline" : "You Know, for Search"
}
四、ElasticSearch索引管理
1，数据存储概念
· 数据结构说明
| 数据库类型 | 存储结构 |
|---|---|
| MySQL | 【数据库database】>>【数据表table】>>【字段】>>【数据】 |
| ElasticSearch | 【索引index】>>【文档document（多组key:value集合的键值对）】 |
· 关键名词解释
| 名词 | 作用 | 解释说明/备注 |
|---|---|---|
| 索引index | 类似数据库中一张表 | 相当于数据库中的一个数据表； |
| 文档document | 类似数据表中一条数据 | 文档中包含多对儿，key : value； |
| 索引主分片primary shard | 索引分布的位置 | 索引的分布、组成结构； |
| 索引副本分片replica shard | 分片的备份数量 | 一个索引的分片的副本分片，不能与主分片在相同的节点上； 【作用价值】： :one:允许一个节点故障 :two:根据节点负载，选择低延迟节点查询数据； |
2，创建索引
· 索引初体验
1，创建一个索引
相当于创建一张空表，表名叫做：index01
- 就是一个空白表；
- 没有字段、没有数据；

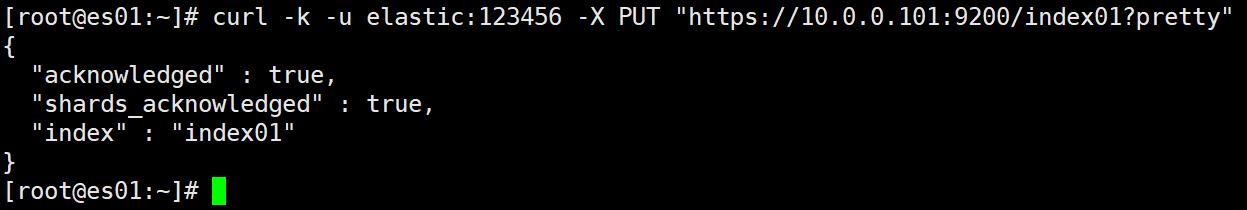

# 创建索引
[root@es01:~]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/index01"
# 创建索引并以json格式输出【?pretty】；
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/index01?pretty"
{
"acknowledged" : true,
"shards_acknowledged" : true,
"index" : "index01"
}
| 字段 | 解释说明 |
|---|---|
| acknowledged | 表示该索引创建请求，是否被集群的“主节点”所接受？？ [true]表示主节点接受了创建索引的请求； [false]表示创建失败，主节点不接受创建请求； |
| shards_acknowledged | 表示这个创建的索引的每个分片（包括副本）是否都已经启动？ [true]表示所有所需分片都已启动； [false]表示有分片没启动； |
| index | 表示创建索引的名称，此时创建成功； |
2，查看索引详细信息
可以看到，索引中包含3个一级字段：
- aliases字段：索引的别名；
- mappings字段：索引的字段与字段类型；
- settings字段：索引的元数据（分片）信息；
- 默认主分片为【1】
- 默认副本分片为【1】
# 查看索引详情，并以json格式输出【？pretty】
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index01?pretty'
{
"index01": {
"aliases": {},
"mappings": {},
"settings": {
"index": {
"routing": {"allocation": {"include": {"_tier_preference": "data_content"}}},
"number_of_shards": "1",
"provided_name": "index01",
"creation_date": "1755331625832",
"number_of_replicas": "1",
"uuid": "nWDP4lovSiC7ls24ie5zhA",
"version": {"created": "7172999"}
}
}
}
}
3，索引字段解释
【aliases字段】：索引的别名
"aliases": {},
【mappings字段】：索引的字段级字段数据类型
"mappings": {},
【settings字段】：索引的主、副本分片等元数据信息设置
"settings": {
"index": {
"routing": {"allocation": {"include": {"_tier_preference": "data_content"}}},
"number_of_shards": "1",
"provided_name": "index01",
"creation_date": "1755331625832",
"number_of_replicas": "1",
"uuid": "nWDP4lovSiC7ls24ie5zhA",
"version": {"created": "7172999"}
}
}
| settings字段 | 说明 |
|---|---|
| routing": {"allocation": {"include": {"_tier_preference": "data_content"}}} | 表示索引存储在什么角色的节点中？； 【node.role】查看集群列表可以看到节点充当的角色； |
| number_of_shards | 表示索引的【主分片数量】； |
| number_of_replicas | 表示索引的【副本分片数量】； |
| provided_name | 表示索引的名称； |
| creation_date | 表示索引创建的时间戳；单位：毫秒； |
| uuid | 索引的唯一标识； |
| version | 表示索引创建在ElasticSearch的什么版本中； |
查看集群节点列表中：【node.role】就是节点充当的角色；
[root@es03:~]# curl -k -u elastic:123456 -X GET "https://10.0.0.102:9200/_cat/nodes?v"
ip heap.percent ram.percent cpu load_1m load_5m load_15m node.role master name
10.0.0.103 12 95 0 0.00 0.00 0.00 cdfhilmrstw - es03
10.0.0.102 38 95 0 0.06 0.02 0.00 cdfhilmrstw * es02
10.0.0.101 40 89 0 0.00 0.00 0.00 cdfhilmrstw - es01
# 节点扮演的角色node.role中【cdfhilmrstw】表示：
- c：code，冷数据节点
- d：data，数据节点，存储索引分片
- f：frozen，冻结数据节点，用于可搜索的快照
- h：hot，热数据节点
- i：ingest，摄取节点，了运行预处理管道
- l：machine_learning，机器学习节点
- m：master，在于选举master的节点
- r：remote_cluster_client，远程集群客户端节点，可以远程连接集群
- s：content，内容节点（表示date+ingest）
- t：transform，转换节点，运行transform任务
- v：voting_only，进投票节点，参与主节点的选举，但是不在选；
- w：warm，温数据节点

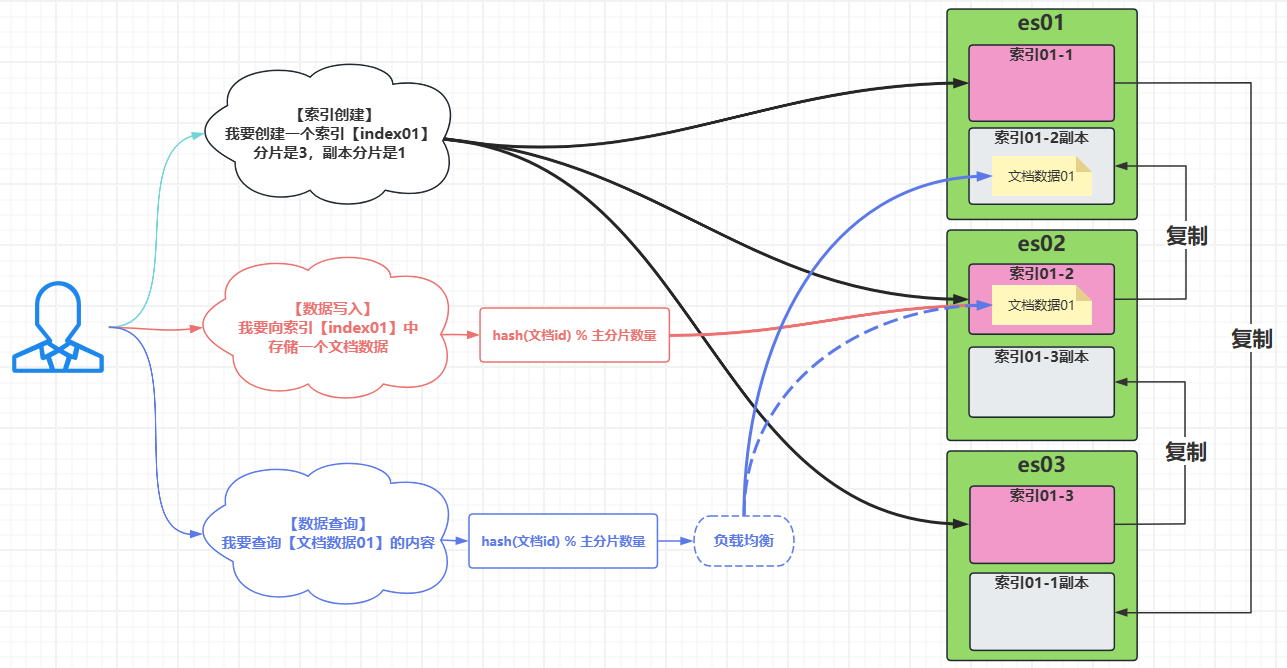

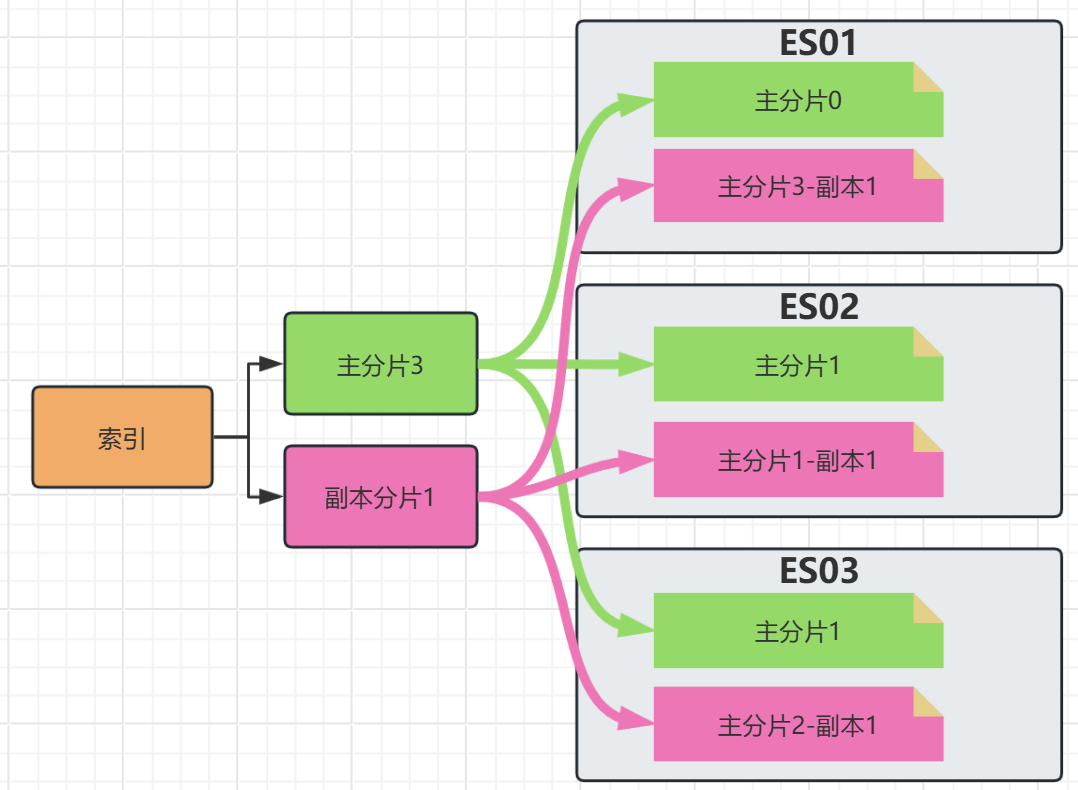

· 创建索引设置索引分片
创建索引指定【主分片】和【副本分片】；
- 相同的数据的主分片与副本分片不能同时在相同的一台主机上；（也没有意义）
- 所以，3台主机的集群，最多只能设计2个副本分片，也就是：【集群主机数量 - 1】
- 主分片的数量，在创建索引是就确定，之后不可修改；
- 副本分片可以随需求进行数量调整；
| curl命令参数 | 解释说明 |
|---|---|
| -d | 请求URL时，提交的数据信息； |
| -H | 请求URL时，携带的请求头字段设置； |
[root@es01:~]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/index02?pretty" -H 'Content-Type: application/json' -d '
{
"settings":{
"number_of_shards": 3,
"number_of_replicas": 1
}
}'
查看索引详情
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index02?pretty'
{
"index02" : {
"aliases" : { },
"mappings" : { },
"settings" : {
"index" : {
"routing" : {
"allocation" : {
"include" : {
"_tier_preference" : "data_content"
}
}
},
"number_of_shards" : "3", # 主分片数量
"provided_name" : "index02",
"creation_date" : "1764305560662",
"number_of_replicas" : "1", # 副本分片数量
"uuid" : "Vu7Cz7UtSOudlk8SrRKPtA",
"version" : {
"created" : "7172999"
}
}
}
}
}
· 创建索引设置字段映射
01，数据类型介绍
| ES数据类型 | 含义说明 |
|---|---|
| text | 普通文本类型，可以模糊搜索的文本信息； |
| keyword | 精准匹配文本类型，不可以模糊匹配，必须精确查找； |
| integer/long/short/float | 【整数32/大整数64/小整数16/小数】数值类型，可以计算、范围查找、比较查找； |
| scaled_float | 缩放浮点经度类型；0.21会存储为12； |
| ip | ip地址类型，可以通过ip范围、网段进行查找的类型 |
| date/date_nanos | 时间类型/纳秒级别时间类型 |
| boolean | 布尔类型：true/false |
| geo_point | 经纬度类型；存储经纬度坐标 |
| geo_shape | 地理形状类型：多组经纬度组成的图形区域； |
| version | 版本类型；可以对版本进行索引； |
| object | 对象类型；内涵多组键值对，每个键可以单独设置数据类型 |
| alias | 别名类型；指向具体的keyword类型的字段上； |
| histogram | 直方图类型；设置区间分组，数据分析时使用的类型； |
02，创建索引映射text类型
| 字段 | 解释说明 |
|---|---|
| mappings | 表示声明，设置字段映射； |
| properties | 【属性】：表示设置字段与属性信息（就是类型） |
| usernme | 自定义的字段名，随便写；根据业务场景需求自定义； |
| type：text | 设置字段的类型是text |
| analyzer | 【分词器】设置；standard是系统默认的分词器（后面会详细讲）； |
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/index03?pretty" -H 'Content-Type: application/json' -d'
{
"mappings": {
"properties": {
"usernme": {
"type": "text",
"analyzer": "standard"
}
}
},
"settings": {
"number_of_shards": 3,
"number_of_replicas": 1
}
}'
查看索引详情
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index03?pretty'
{
......
"mappings" : {
"properties" : {
"usernme" : {
"type" : "text",
"analyzer" : "standard"
......
03，创建索引映射keyword类型
| 字段 | 含义说明 |
|---|---|
| level | 自定义字段名称，随便写； |
| type：keyword | 设置字段类型为keyword |

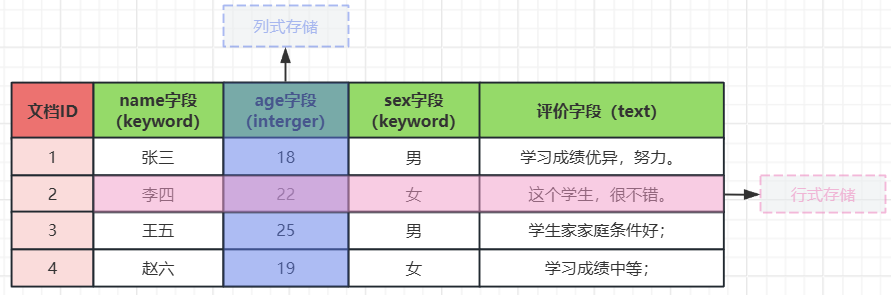

| doc_values | 设置存储方式为：【正排索引】（keyword类型默认的存储方式，后面会讲），为了方便排序聚合； |
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/index04?pretty" -H 'Content-Type: application/json' -d'
{
"mappings": {
"properties": {
"tags": {
"type": "keyword",
"doc_values": true
}
}
},
"settings": {
"number_of_shards": 3,
"number_of_replicas": 1
}
}'
查看索引详情
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index04?pretty'
{
......
"mappings" : {
"properties" : {
"tags" : {
"type" : "keyword"
......
04，创建索引映射数值类型
| 字段 | 含义说明 |
|---|---|
| short | 表示2^16次方大小，-3.2万 ~ 3.2万 |
| index | 表示是否允许被搜索？默认是true； |
| integer | 表示2^32次方大小，-21亿 ~ 21亿 |
| long | 表示2^64次方大小； |
| float | 表示最高存储6位数；【123.456】【222.333】【1.22222】【12.3456】 |
| scaled_float | 精度小数类型，将小数存储为整数； 需要自行设置取整的算法：【 "scaling_factor": 100 】表示 存储的数值都乘以100再存储； |
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/index05?pretty" -H 'Content-Type: application/json' -d'
{
"mappings": {
"properties": {
"kucun": {
"type": "integer"
},
"order_number": {
"type": "long"
},
"price": {
"type": "float"
},
"weight": {
"type": "short",
"index": false
},
"pi": {
"type": "scaled_float",
"scaling_factor": 100
}
}
},
"settings": {
"number_of_shards": 3,
"number_of_replicas": 1
}
}'
查看索引详情
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index05?pretty'
......
"kucun" : {
"type" : "integer"
},
"order_number" : {
"type" : "long"
},
"pi" : {
"type" : "scaled_float",
"scaling_factor" : 100.0
},
"price" : {
"type" : "float"
},
"weight" : {
"type" : "short",
"index" : false
......
05，创建索引映射时间类型
| 字段 | 含义说明 |
|---|---|
| type: date | 普通时间类型 |
| format: yyyy-MM-dd HH:mm:ss || epoch_millis | 表示允许写入的时间格式： 【yyyy-MM-dd HH:mm:ss】：1991-11-12 03:32:43 【epoch_millis】：表示时间戳； 【||】：或者的意思，就是两种格式写入数据都被允许； |
| type : date_nanos | 纳秒时间类型 |
| format: strict_date_optional_time_nanos|| epoch_millis | 不设置默认也是这个 【strict_date_optional_time_nanos】表示纳秒字符串时间； 同等于：yyyy-MM-dd HH:mm:ss.SSSSSSSSS |
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/index06?pretty" -H 'Content-Type: application/json' -d'
{
"mappings": {
"properties": {
"order_create_time": {
"type": "date",
"format": "yyyy-MM-dd HH:mm:ss||epoch_millis"
},
"shipment_time": {
"type": "date_nanos",
"format": "strict_date_optional_time_nanos||epoch_millis"
}
}
},
"settings": {
"number_of_shards": 3,
"number_of_replicas": 1
}
}'
查看索引详情
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index06?pretty'
......
"order_create_time" : {
"type" : "date",
"format" : "yyyy-MM-dd HH:mm:ss||epoch_millis"
},
"shipment_time" : {
"type" : "date_nanos"
......
06，创建索引映射坐标类型
| 字段 | 含义说明 |
|---|---|
| "type": "geo_point" | 经纬度数据类型； |
| "type": "geo_shape" | 范围类型，多组经纬度； |
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/index07?pretty" -H 'Content-Type: application/json' -d'
{
"mappings": {
"properties": {
"warehouse_address": {
"type": "geo_point"
},
"delivery_area": {
"type": "geo_shape"
}
}
},
"settings": {
"number_of_shards": 3,
"number_of_replicas": 1
}
}'
查看索引详情
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index07?pretty'
......
"delivery_area" : {
"type" : "geo_shape"
},
"warehouse_address" : {
"type" : "geo_point"
......
07，创建索引映射布尔类型
| 字段 | 含义说明 |
|---|---|
| "type": "boolean" | 布尔类型 |
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/index08?pretty" -H 'Content-Type: application/json' -d'
{
"mappings": {
"properties": {
"is_up": {
"type": "boolean"
}
}
},
"settings": {
"number_of_shards": 3,
"number_of_replicas": 1
}
}'
查看索引详情
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index08?pretty'
......
"is_up" : {
"type" : "boolean"
......
08，创建索引映射ip类型
| 字段 | 含义说明 |
|---|---|
| "type": "ip" | ip类型 |
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/index09?pretty" -H 'Content-Type: application/json' -d'
{
"mappings": {
"properties": {
"remote_ip": {
"type": "ip"
}
}
},
"settings": {
"number_of_shards": 3,
"number_of_replicas": 1
}
}'
查看索引详情
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index09?pretty'
......
"remote_ip" : {
"type" : "ip"
......
09，创建索引映射版本类型
| 字段 | 含义说明 |
|---|---|
| "type": "version" | 版本类型，一般拥挤记录用户使用的app版本信息 |
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/index10?pretty" -H 'Content-Type: application/json' -d'
{
"mappings": {
"properties": {
"app_version": {
"type": "version"
}
}
},
"settings": {
"number_of_shards": 3,
"number_of_replicas": 1
}
}'
查看索引详情
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index10?pretty'
......
"mappings" : {
"properties" : {
"app_version" : {
"type" : "version"
......
10，创建索引映射直方图类型
| 字段 | 含义说明 |
|---|---|
| "type": "histogram" | 直方图类型 |
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/index11?pretty" -H 'Content-Type: application/json' -d'
{
"mappings": {
"properties": {
"app_version": {
"type": "histogram"
}
}
},
"settings": {
"number_of_shards": 3,
"number_of_replicas": 1
}
}'
查看索引详情
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index11?pretty'
......
"app_version" : {
"type" : "histogram"
......
11，创建索引映射对象类型
| 字段 | 含义说明 |
|---|---|
| specifications | 【规格】：自定义字段名称，表示商品规格； |
| "type": "object" | 类型为对象类型；字段中包含多个字段； |
| properties | 子字段的属相设置 |
| "color": { "type": "keyword" }, "size": { "type": "keyword" }, "material": { "type": "text" } |
子字段的名称与类型 |
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/index12?pretty" -H 'Content-Type: application/json' -d'
{
"mappings": {
"properties": {
"specifications": {
"type": "object",
"properties": {
"color": { "type": "keyword" },
"size": { "type": "keyword" },
"material": { "type": "text" }
}
}
}
},
"settings": {
"number_of_shards": 3,
"number_of_replicas": 1
}
}'
查看索引详情
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index12?pretty'
......
"mappings" : {
"properties" : {
"specifications" : {
"properties" : {
"color" : {
"type" : "keyword"
},
"material" : {
"type" : "text"
},
"size" : {
"type" : "keyword"
}
}
}
}
},
......
12，创建索引映射别名类型
什么是别名类型：就是给字段起一个别名,可以理解为一个【字段的另一个入口】；
- 当我们有一个字段叫：【name】
- 后来由于业务需求，我们需要将这个字段修改为：【user_name】
- 但是，这个字段下已经存在很多数据，之前的开发写的代码调取的也都是【name】字段；
- 在这种情况下，我们可以给这个字段【name】起一个别名，叫【user_name】;
| 字段 | 含义说明 |
|---|---|
| type: alias | 别名类型 |
| "path": "name" | 别名指向的原来的字段； |
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/index13?pretty" -H 'Content-Type: application/json' -d'
{
"mappings": {
"properties": {
"name": {
"type": "text"
},
"user_name": {
"type": "alias",
"path": "name"
}
}
},
"settings": {
"number_of_shards": 3,
"number_of_replicas": 1
}
}'
查看索引详情
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index13?pretty'
......
"properties" : {
"name" : {
"type" : "text"
},
"user_name" : {
"type" : "alias",
"path" : "name"
}
}
},
......
13，创建索引同一个字段映射多个类型
当我们想要搜索一个字段时，有时候会同时有两种需求：
- 既要这个字段可以模糊匹配，又要这个字段必须精准查找；
- 也就是说这个字段要同时拥有两个类型属性：【text】和【keyword】；
- 假设一个备注字段【comment】；
- 接口一：要对它迷糊搜索；
- 接口二：要对它精准搜索；
| 字段 | 含义说明 |
|---|---|
| comment | 自定义字段名称 |
| "type": "text" | 字段类型为模糊搜索类型text |
| fields: | 定义子字段 |
| "keyword": { | 自定义子字段的名称，注意：要与另一个类型名称相同；否则kibana不识别； |
| "type": "keyword", | 子字段类型； |
| "ignore_above": 256 | 当用户精确查找这个字段数据时，数据如果超过UTF-8的256个字符（不是字节），则不允许被过滤； |
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/index14?pretty" -H 'Content-Type: application/json' -d'
{
"mappings": {
"properties": {
"comment": {
"type": "text",
"fields": {
"keyword": {
"type": "keyword",
"ignore_above": 256
}
},
"analyzer": "standard"
}
}
},
"settings": {
"number_of_shards": 3,
"number_of_replicas": 1
}
}'
查看索引详情
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index14?pretty'
......
"properties" : {
"comment" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
},
"analyzer" : "standard"
}
}
},
......
· 创建索引设置索引别名
1，创建索引设置索引别名
什么是索引别名：
- 就是索引的另一个入口；
- 假设索引名称叫：【index01】，你给它设置两个别名【alias01】【alias02】；
- 当你查询索引的时候：
- 查询index01的别名【alias01】
- 查询index01的别名【alias02】
- 本质上查的都是索引【index01】数据，只是从不同的入口进来；
[root@es01:~]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/index15?pretty" -H 'Content-Type: application/json' -d '
{
"aliases":{
"wa_alias_01": {},
"wa_alias_02": {},
"wa_alias_03": {}
},
"mappings": {
"properties": {
"name": {
"type": "text"
}
}
},
"settings":{
"number_of_shards": 3,
"number_of_replicas": 1
}
}'
查看索引详情
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index15?pretty'
{
"index15" : {
"aliases" : {
"wa_alias_01" : { },
"wa_alias_02" : { },
"wa_alias_03" : { }
},
......

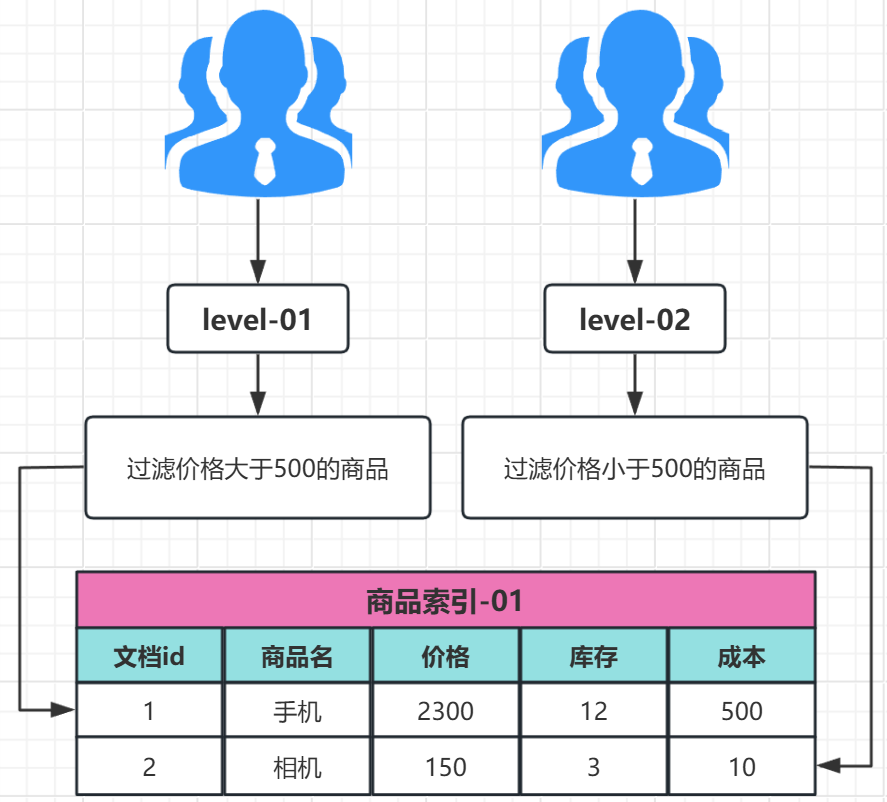

2，创建索引并设置别名过滤数据
假设我们有一个需求：
- 我们将用户分为三个等级，【A】【B】【C】；
- 【A】用户来查询我们的索引，给他显示5000以上价格的产品；
- 【B】用户来查询我们的索引，给他显示1000到5000价格的产品；
- 【C】用户来查询我们的索引，给他显示1000以下价格的产品；
- 我们就可以给同一个商品列表的索引，设置自带不同查询条件的3个不同的别名
- 【A】类用户进入页面
- 让其自动查询索引别名【wa_alias_01】
- 给索引设置只显示、只自动查询出价格大于5000的商品；
- 【B】类用户进入页面
- 让其自动查询索引别名【wa_alias_02】
- 给索引设置只显示、只自动查询出价格大于1000小于5000的商品；
- 【C】类用户进入页面
- 让其自动查询索引别名【wa_alias_03】
- 给索引设置只显示、只自动查询出价格小于1000的商品；
# 查询数据还没讲，先了解它有这个功能作用；
[root@es01:~]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/index16?pretty" -H 'Content-Type: application/json' -d '
{
"aliases":{
"wa_alias_01": {
"filter": {
"range": {
"price": {
"gte": 5000.0,
}
}
}
},
"wa_alias_02": {
"filter": {
"range": {
"price": {
"gte": 1000.0,
"lt": 5000.0
}
}
}
},
"wa_alias_03": {
"filter": {
"range": {
"price": {
"lte": 1000.0,
}
}
}
}
},
"mappings": {
"properties": {
"price": {
"type": "float"
}
}
},
"settings":{
"number_of_shards": 3,
"number_of_replicas": 1
}
}'
注意：
- 由于json格式数据太长，xshell无法直接使用curl命令执行；
- 我们采用curl命令与文件的方式执行命令
[root@es01 ~ ]# vim alias.json
{
"aliases":{
"wa_alias_01": {
"filter": {
"range": {
"price": {
"gte": 5000.0
}
}
}
},
"wa_alias_02": {
"filter": {
"range": {
"price": {
"gte": 1000.0,
"lt": 5000.0
}
}
}
},
"wa_alias_03": {
"filter": {
"range": {
"price": {
"lte": 1000.0
}
}
}
}
},
"mappings": {
"properties": {
"price": {
"type": "float"
}
}
},
"settings":{
"number_of_shards": 3,
"number_of_replicas": 1
}
}
# curl指定文件为请求主体
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/index16?pretty" -H 'Content-Type: application/json' --data-binary @./alias.json
{
"acknowledged" : true,
"shards_acknowledged" : true,
"index" : "index16"
}
| curl命令参数 | 解释说明 |
|---|---|
| -d '文本内容' | 指定请求主体内容 |
| -d @文件路径 | 指定请求主体为文件 |
| --data-binary @文件路径 | 指定请求主体为文件，并保留文件格式； |
查看索引详情
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index16?pretty'
{
"index16" : {
"aliases" : {
"wa_alias_01" : {
"filter" : {
"range" : {
"price" : {
"gte" : 5000.0
}
}
}
},
"wa_alias_02" : {
"filter" : {
"range" : {
"price" : {
"lt" : 5000.0,
"gte" : 1000.0
}
}
}
},
"wa_alias_03" : {
"filter" : {
"range" : {
"price" : {
"lte" : 1000.0
}
}
}
}
},
"mappings" : {
"properties" : {
"price" : {
"type" : "float"
}
}
},
......
3，索引别名的作用说明

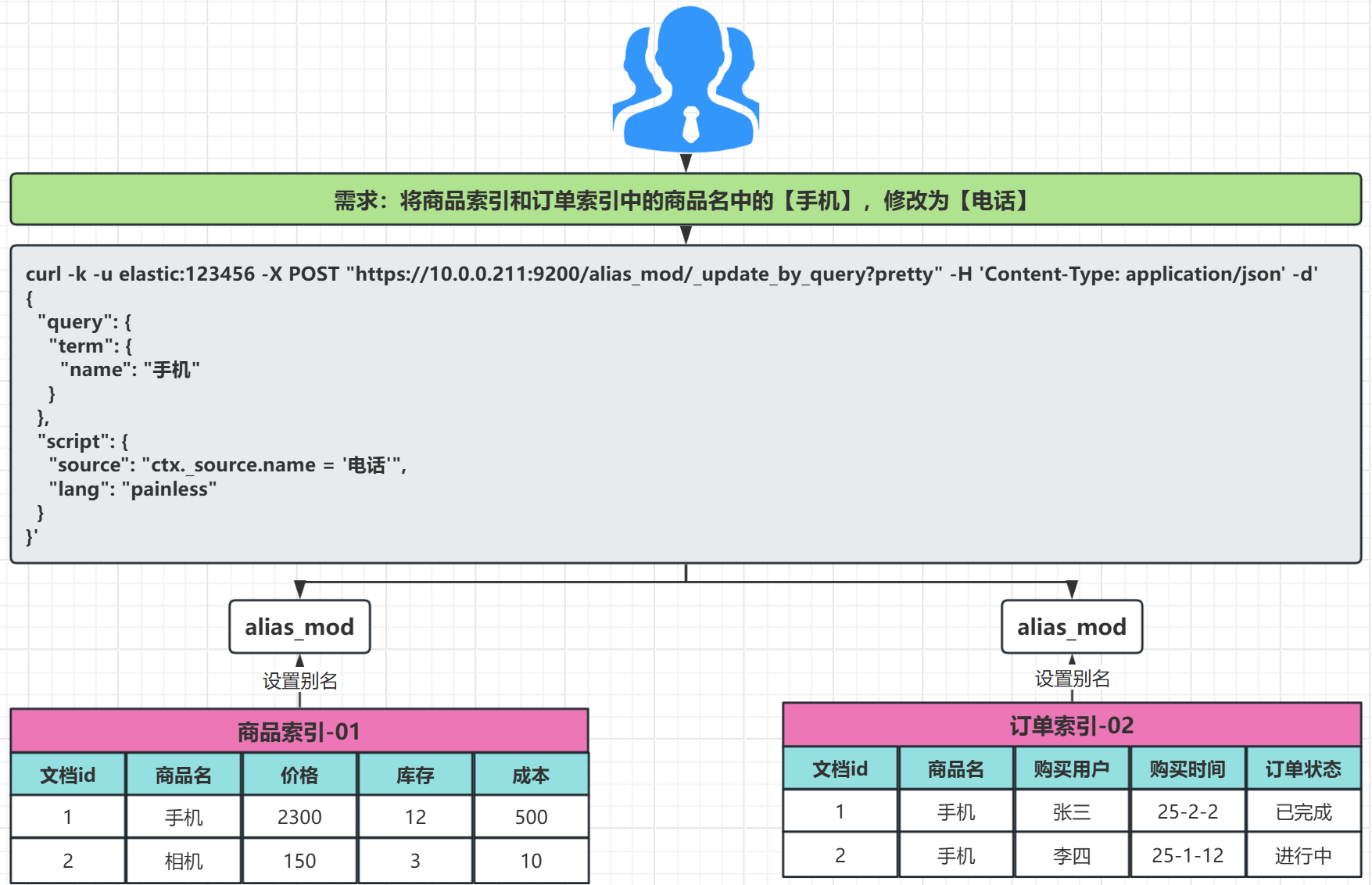

需求1：批量操作多个索引数据；
例如：我想将两个索引中的相同字段中的信息，一起修改；
需求2：不同的用户，访问形同索引的不同别名，得到不同的结果
3，查看索引
· 查看索引详细信息
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index16?pretty'
{
"index16" : {
"aliases" : {
"wa_alias_01" : {
"filter" : {
"range" : {
"price" : {
"gte" : 5000.0
}
}
}
},
"wa_alias_02" : {
"filter" : {
"range" : {
"price" : {
"lt" : 5000.0,
"gte" : 1000.0
}
}
}
},
"wa_alias_03" : {
"filter" : {
"range" : {
"price" : {
"lte" : 1000.0
}
}
}
}
},
"mappings" : {
"properties" : {
"price" : {
"type" : "float"
}
}
},
"settings" : {
"index" : {
"routing" : {
"allocation" : {
"include" : {
"_tier_preference" : "data_content"
}
}
},
"number_of_shards" : "3",
"provided_name" : "index16",
"creation_date" : "1764324765535",
"number_of_replicas" : "1",
"uuid" : "hmSH5wAVTLmfE-rCUbrn7w",
"version" : {
"created" : "7172999"
}
}
}
}
}
· 查询索引中单个字段
1，查看索引只显示settings字段
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index16/_settings?pretty'
{
"index16" : {
"settings" : {
"index" : {
"routing" : {
"allocation" : {
"include" : {
"_tier_preference" : "data_content"
}
}
},
"number_of_shards" : "3",
"provided_name" : "index16",
"creation_date" : "1764324765535",
"number_of_replicas" : "1",
"uuid" : "hmSH5wAVTLmfE-rCUbrn7w",
"version" : {
"created" : "7172999"
}
}
}
}
}
2，查看索引只显示alias字段
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index16/_alias?pretty'
{
"index16" : {
"aliases" : {
"wa_alias_01" : {
"filter" : {
"range" : {
"price" : {
"gte" : 5000.0
}
}
}
},
"wa_alias_02" : {
"filter" : {
"range" : {
"price" : {
"lt" : 5000.0,
"gte" : 1000.0
}
}
}
},
"wa_alias_03" : {
"filter" : {
"range" : {
"price" : {
"lte" : 1000.0
}
}
}
}
}
}
}
3，查看索引只显示mappings字段
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index16/_mappings?pretty'
{
"index16" : {
"mappings" : {
"properties" : {
"price" : {
"type" : "float"
}
}
}
}
}
· 查看索引的分片详情
| 字段 | 解释说明 |
|---|---|
| index | 索引名称 |
| shard | 分片的排序序号，三个分片，就是【0、1、2】 |
| prirep | 分片的类型：【r：表示replica shard副本分片】，【p：表示primary shard主分片】 |
| state | 分片的状态：【STARTED=运行中】【UNASSIGNED=未分配】【RELOCATING=迁移中】 |
| docs | 分片存储的文档数量； |
| store | 表示该分片所占用的磁盘存储空间； |
| ip | 所在节点的ip地址 |
| node | 所在节点的主机名称 |
表示：index02这个索引中：
- p主分片：有3个，分别是【0】【1】【2】；
- r副本分片：有1个，三个主分片分别有一个副本分片，切在不同的机器上；
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/_cat/shards/index16?v'
index shard prirep state docs store ip node
index16 2 r STARTED 0 227b 10.0.0.212 es02
index16 2 p STARTED 0 227b 10.0.0.101 es01
index16 1 p STARTED 0 227b 10.0.0.213 es03
index16 1 r STARTED 0 227b 10.0.0.101 es01
index16 0 r STARTED 0 227b 10.0.0.213 es03
index16 0 p STARTED 0 227b 10.0.0.212 es02

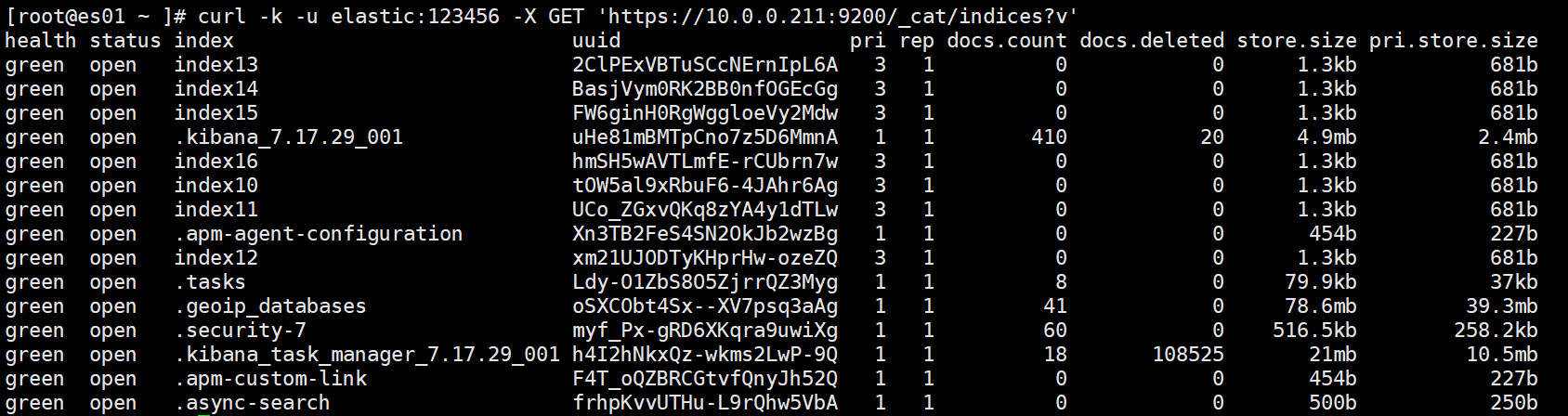

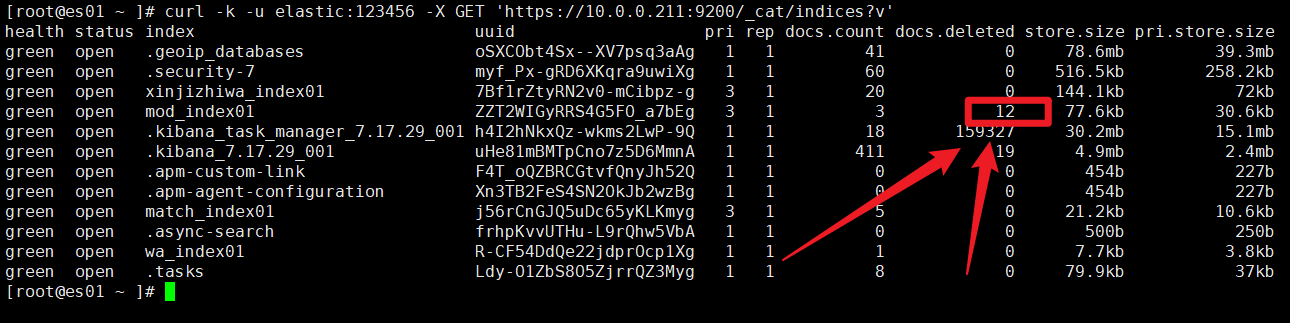

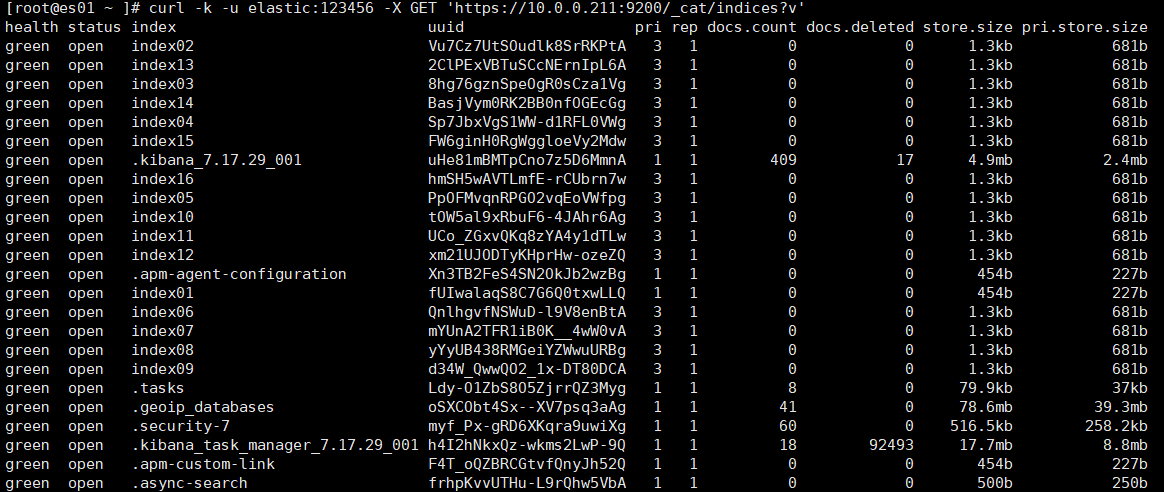

· 查看集群的索引列表
可以看到默认的【主分片】与【副本分片】均为：1；
| 字段 | 解释说明 |
|---|---|
| health | 索引的监看状态； :one:【green】：绿色，表示主分片和副本分片都可用； :two:【yellow】：黄色，表示主分片可用、副本分片不可用； :three:【red】：红色，表示主分片不可用，数据丢失； |
| status | 表示索引当前状态： 【open】表示开启状态，可以正常读写数据； 【close】表示关闭状态，不能急进行读写操作； |
| index | 索引名称 |
| uuid | 索引在集群中的唯一标识符，id； |
| pri | 索引的【主分片】数量 |
| rep | 索引的【副本分片】数量 |
| docs.count | 索引中文档的数量 |
| docs.deleted | 索引中被删除的文档数量 |
| store.size | 索引中总存储数据大小； |
| pri.store.size | 索引中主分片的总存储数据大小； |
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/_cat/indices?v'

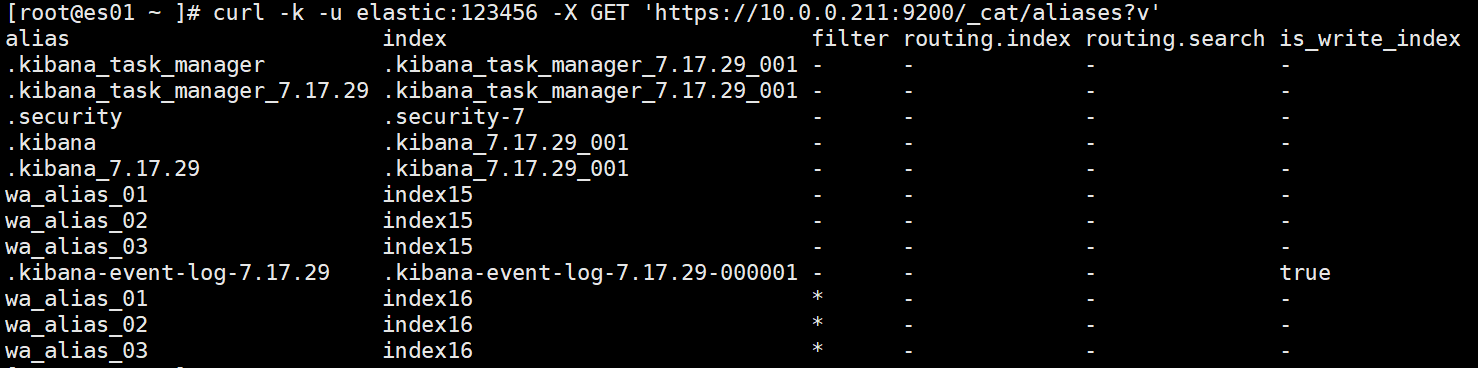

· 查看集群中所有索引别名列表
| 字段说明 | 解释说明 |
|---|---|
| alias | 别名的名称 |
| index | 别名指向哪个索引（就是那个索引的别名是这个） |
| filter | 【-】表示没有过滤条件，【*】表示有过滤条件； |
| routing.index | 索引路由；【-】表示使用默认路由; 当通过该别名执行写入操作（如索引、更新、删除文档）时使用的可选路由值（Routing Value）。 用于控制文档被存储在哪个分片上。 【-】就是使用默认的存储计算方式（路由）：【hash(文档id) % 主分片数量】 |
| routing.search | 搜索路由；【-】表示搜索所有分片; 当通过该别名执行搜索操作时使用的可选路由值（Routing Value）。 用于将搜索请求限定到特定的一个或多个分片。 |
| is_write_index | 写索引标志；【true】表示为写索引，【-】或【false】表示不是写索引 |
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/_cat/aliases?v
4，修改索引
· 修改副本分片数量
1，修改分片
注意：
- 只能修改【副本分片】；
- 主分片创建时设定，之后不允许修改；
[root@es01:~]# curl -k -u elastic:123456 -X PUT 'https://10.0.0.101:9200/index03/_settings' -H 'Content-Type: application/json' -d '
{
"number_of_replicas": 2
}'

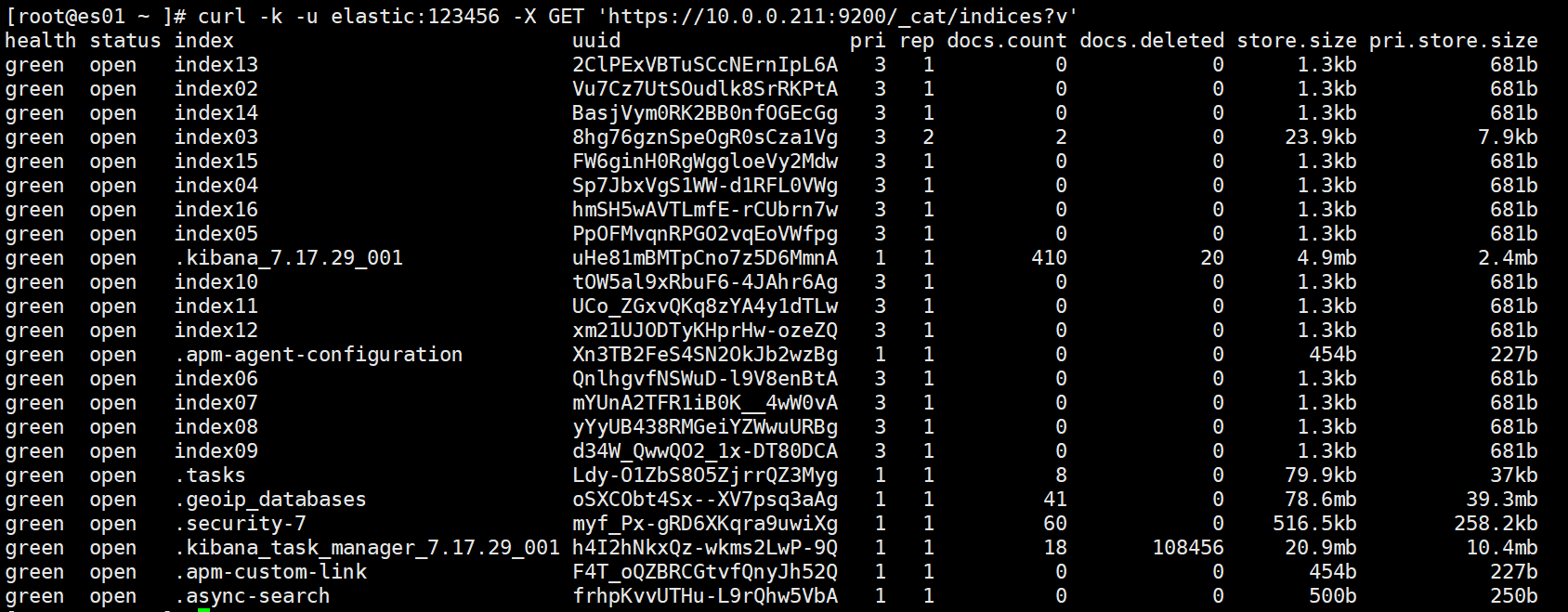

2，查看集群索引列表验证
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/_cat/indices?v'
health status index uuid pri rep docs.count docs.deleted store.size pri.store.size
......
green open index03 8hg76gznSpeOgR0sCza1Vg 3 2 0 0 1.9kb 681b
......
· 修改索引别名
1，查看索引别名
可以看到，我们原来的三个别名的过滤数据的条件
- 【wa_alias_01】：过滤价格【>=5000】
- 【wa_alias_02】：过滤价格【<5000】切【>=1000】
- 【wa_alias_03】：过滤价格【<=1000】
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index16/_alias?pretty'
{
"index16" : {
"aliases" : {
"wa_alias_01" : {
"filter" : {
"range" : {
"price" : {
"gte" : 5000.0
}
}
}
},
"wa_alias_02" : {
"filter" : {
"range" : {
"price" : {
"lt" : 5000.0,
"gte" : 1000.0
}
}
}
},
"wa_alias_03" : {
"filter" : {
"range" : {
"price" : {
"lte" : 1000.0
}
}
}
}
}
}
}
2，修改别名过滤条件
别名的修改，本质上就是先删除，再创建；
需求：
- 将【wa_alias_03】原来的过滤条件<=1000;
- 修改为：<1000;
[root@es01 ~ ]# curl -k -u elastic:123456 -X POST 'https://10.0.0.101:9200/_aliases' -H 'Content-Type: application/json' -d'
{
"actions": [
{
"remove": {
"index": "index16",
"alias": "wa_alias_03"
}
},
{
"add": {
"index": "index16",
"alias": "wa_alias_03",
"filter": {
"range": {
"price": {
"lt": 1000.0
}
}
}
}
}
]
}'
修改后查看索引详情验证
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index16/_alias?pretty'
......
"wa_alias_03" : {
"filter" : {
"range" : {
"price" : {
"lt" : 1000.0 # 看这里，修改成功；
......
3，索引新增别名
[root@es01 ~ ]# curl -k -u elastic:123456 -X POST 'https://10.0.0.101:9200/_aliases' -H 'Content-Type: application/json' -d'
{
"actions": [
{
"add": {
"index": "index16",
"alias": "wa_alias_04",
"filter": {
"range": {
"price": {
"lt": 1000.0,
"gte": 500
}
}
}
}
}
]
}'
查看索引详情
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index16/_alias?pretty'
......
"wa_alias_04" : {
"filter" : {
"range" : {
"price" : {
"lt" : 1000.0,
"gte" : 500
......
4，索引新增多个别名
[root@es01 ~ ]# curl -k -u elastic:123456 -X POST 'https://10.0.0.101:9200/_aliases' -H 'Content-Type: application/json' -d'
{
"actions": [
{
"add": {
"index": "index16",
"alias": "wa_alias_05",
"filter": {
"range": {
"price": {
"lt": 500.0,
"gte": 300.0
}
}
}
}
},
{
"add": {
"index": "index16",
"alias": "wa_alias_06",
"filter": {
"range": {
"price": {
"lt": 300.0,
"gte": 1.0
}
}
}
}
}
]
}'
查看验证
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index16/_alias?pretty'
......
"wa_alias_05" : {
"filter" : {
"range" : {
"price" : {
"lt" : 500.0,
"gte" : 300.0
}
}
}
},
"wa_alias_06" : {
"filter" : {
"range" : {
"price" : {
"lt" : 300.0,
"gte" : 1.0
......
5，删除索引别名
[root@es01 ~ ]# curl -k -u elastic:123456 -X POST 'https://10.0.0.101:9200/_aliases' -H 'Content-Type: application/json' -d'
{
"actions": [
{
"remove": {
"index": "index16",
"alias": "wa_alias_04"
}
},
{
"remove": {
"index": "index16",
"alias": "wa_alias_05"
}
},
{
"remove": {
"index": "index16",
"alias": "wa_alias_06"
}
}
]
}'
查看验证
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/index16/_alias?pretty'
{
"index16" : {
"aliases" : {
"wa_alias_01" : {
"filter" : {
"range" : {
"price" : {
"gte" : 5000.0
}
}
}
},
"wa_alias_02" : {
"filter" : {
"range" : {
"price" : {
"lt" : 5000.0,
"gte" : 1000.0
}
}
}
},
"wa_alias_03" : {
"filter" : {
"range" : {
"price" : {
"lt" : 1000.0
}
}
}
}
}
}
}
· 索引映射无法修改:star:
与mysql数据库不同，索引的映射字段，无法进行修改；
5，索引的开启和关闭

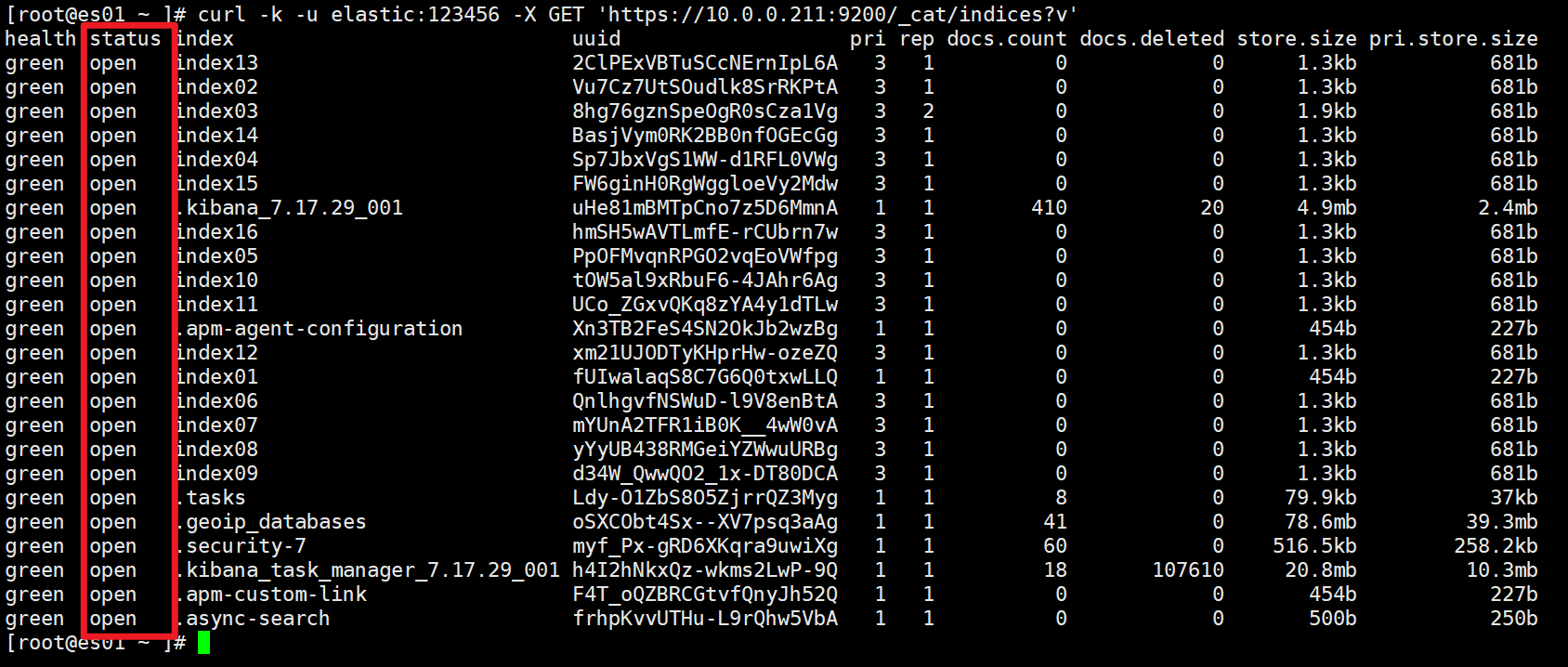

· 查看集群索引列表
查看第二列的【status】状态：你会发现都是【open】，也就是开启状态；
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/_cat/indices?v'
· 索引中写入文档数据(后面会讲)
[root@es01:~]# curl -k -u elastic:123456 -X POST "https://10.0.0.101:9200/index03/_doc/1?pretty" -H 'Content-Type: application/json' -d '
{
"username": "张三"
}'
· 关闭索引
[root@es01:~]# curl -k -u elastic:123456 -X POST 'https://10.0.0.101:9200/index03/_close'

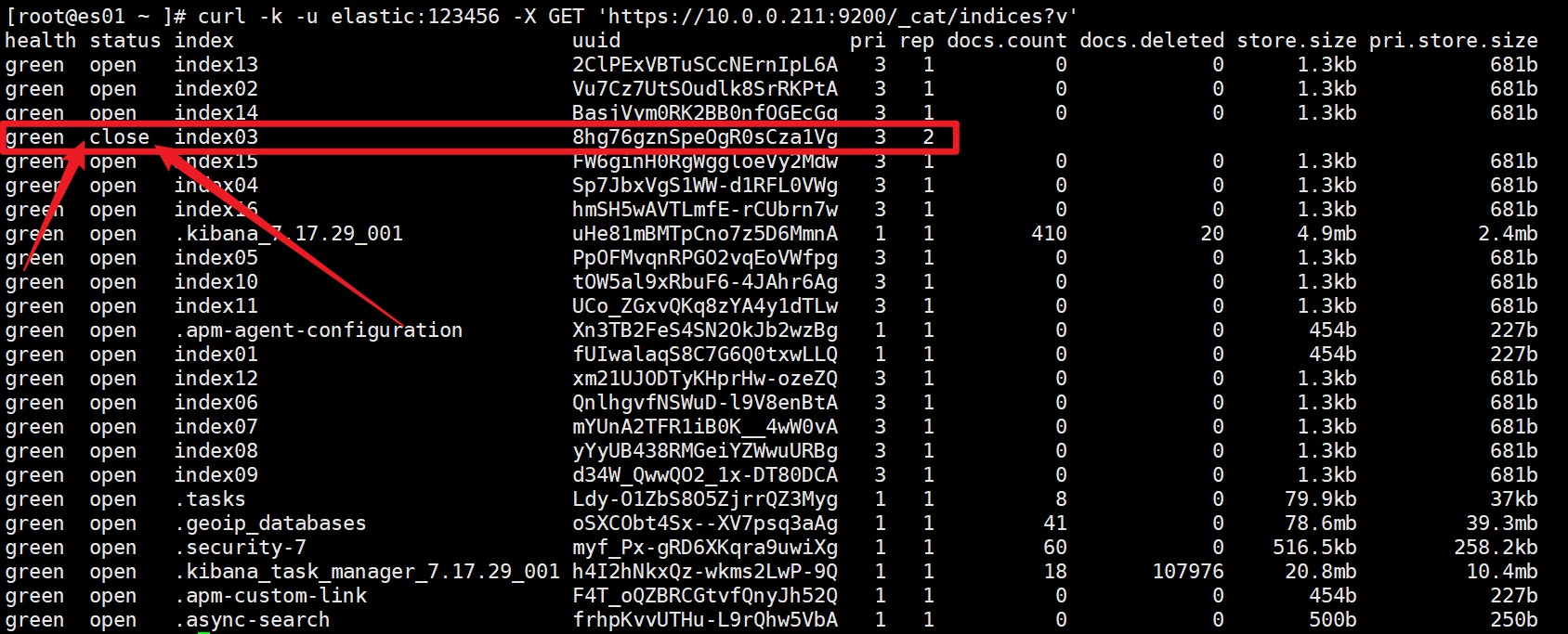

关闭后查看集群索引列表
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/_cat/indices?v'
· 尝试写入数据-失败
[root@es01 ~ ]# curl -k -u elastic:123456 -X POST "https://10.0.0.101:9200/index03/_doc/2?pretty" -H 'Content-Type: application/json' -d '
{
"username": "李四"
}'
# 返回结果显示：索引是关闭状态
{
"error" : {
"root_cause" : [
{
"type" : "index_closed_exception",
"reason" : "closed",
"index_uuid" : "8hg76gznSpeOgR0sCza1Vg",
"index" : "index03"
}
],
"type" : "index_closed_exception",
"reason" : "closed",
"index_uuid" : "8hg76gznSpeOgR0sCza1Vg",
"index" : "index03"
},
"status" : 400
}
· 开启索引
[root@es01:~]# curl -k -u elastic:123456 -X POST 'https://10.0.0.101:9200/index03/_open'
· 尝试写入数据-成功
[root@es01 ~ ]# curl -k -u elastic:123456 -X POST "https://10.0.0.101:9200/index03/_doc/2?pretty" -H 'Content-Type: application/json' -d '
{
"username": "李四"
}'
# 返回结果显示成功；
{
"_index" : "index03",
"_type" : "_doc",
"_id" : "2",
"_version" : 1,
"result" : "created",
"_shards" : {
"total" : 3,
"successful" : 3,
"failed" : 0
},
"_seq_no" : 0,
"_primary_term" : 3
}
6，删除索引
· 删除单个索引
[root@es01 ~ ]# curl -k -u elastic:123456 -X DELETE 'https://10.0.0.101:9200/index01'
{"acknowledged":true}
· 模糊匹配删除多个索引
1，查看集群索引列表
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/_cat/indices?v'
2，模糊匹配删除索引
将【index0】开头的索引全部删除
[root@es01:~]# curl -k -u elastic:123456 -X DELETE 'https://10.0.0.101:9200/index0*'
3，查看集群索引列表验证
查看发现【index0】开头的索引已经被删除
[root@es01:~]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/_cat/indices?v'
7，索引模板
· 索引模板介绍
1，索引创建的问题
什么是索引模板：
- 在上述的【索引】的学习中，我们了解到：
- 创建【索引】有三个主字段需要注意：
- 【settings】：表示索引的主分片与副本分片的设置；
- 【mappings】：表示存入的数据字段的设置与数据字段的类型；
- 【aliases】：表示索引的别名与别名过滤规则的设置；
- 我们的问题是：
- 当我们未来的业务中，要不断地创建新的索引；
- 这些新的索引有一定的共性：
- 相同的主分片、相同的副本分片；
- 相同的mappings映射字段与类型；
- 相同的别名与过滤规则；
- 那么每次创建这些索引时，我们都在做重复的、没有意义的事情；
- 于是，为了解决索引创建的重复工作问题，ES提供了：【索引模板】的功能与概念；
2，索引模板的工作原理
索引模板的工作原理：
- 我们创建一个【索引模板】，编辑好settings、mappings、aliases等配置；
- 同时设置好【名称匹配规则】；
- 例如：【bakwite*】
- 含义：当新创建的索引名称以bakwite开头，则默认使用索引模板中的设置；
- 如此一来，我们就省去了创建重复配置信息的工作，增加了生产效率；
· 创建索引模板
| 字段 | 含义说明 |
|---|---|
| index_patterns | 【索引模式】：就是索引的名称匹配规则， |
| [bakwite*,xjzw*] | 表示凡是再次创建以bakwite和xjzw开头的名称的索引，都使用这个模板的配置信息； 【*】表示，匹配所有新创建的索引； |
| priority | 模板优先级（从前叫order），当创建的索引同时满足多个模板时，优先使用order值大的那个； 优先级范围：【0-100】 |
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT 'https://10.0.0.101:9200/_index_template/bakwite_index_tmp01' -H 'Content-Type: application/json' -d'
{
"index_patterns": [
"bakwite*",
"xjzw*"
],
"priority": 1,
"template": {
"aliases": {
"wa_alias_01": {},
"wa_alias_02": {},
"wa_alias_03": {}
},
"mappings": {
"properties": {
"id": {
"type": "keyword",
"doc_values": true
},
"name": {
"type": "text"
},
"create_time": {
"type": "date",
"format": "yyyy-MM-dd HH:mm:ss||epoch_millis"
}
}
},
"settings": {
"number_of_shards": 3,
"number_of_replicas": 1
}
}
}'
· 查看索引模板
1，查看集群索引模板列表
| 显示字段 | 解释说明 |
|---|---|
| name | 索引模板的名称 |
| index_patterns | 索引名称的匹配模式 |
| order | 模板匹配索引的优先级；如果创建索引时，名称匹配了多个满足条件的索引模板，优先选择哪个？ |
| version | 索引模板的版本号，空表示没设置 |
| composed_of | 组件模板，空表示没有使用组件模板（组件模板：系统自带的模板）； |
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/_cat/templates?v'
name index_patterns order version composed_of
......
bakwite_index_tmp01 [bakwite*, xjzw*] 0
......
2，查看单个索引模板
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/_index_template/bakwite_index_tmp01?pretty'
显示结果
{
"index_templates" : [
{
"name" : "bakwite_index_tmp01",
"index_template" : {
"index_patterns" : [
"bakwite*",
"xjzw*"
],
"template" : {
"settings" : {
"index" : {
"number_of_shards" : "3",
"number_of_replicas" : "1"
}
},
"mappings" : {
"properties" : {
"create_time" : {
"format" : "yyyy-MM-dd HH:mm:ss||epoch_millis",
"type" : "date"
},
"name" : {
"type" : "text"
},
"id" : {
"type" : "keyword",
"doc_values" : true
}
}
},
"aliases" : {
"wa_alias_01" : { },
"wa_alias_02" : { },
"wa_alias_03" : { }
}
},
"composed_of" : [ ],
"priority" : 1
}
}
]
}
· 创建索引验证效果
1，创建满足名称匹配条件的索引
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/bakwite_01?pretty"
2，查看索引详情验证
可以看到：索引的配置信息与模板的相同
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_01?pretty"
{
"bakwite_01" : {
"aliases" : {
"wa_alias_01" : { },
"wa_alias_02" : { },
"wa_alias_03" : { }
},
"mappings" : {
"properties" : {
"create_time" : {
"type" : "date",
"format" : "yyyy-MM-dd HH:mm:ss||epoch_millis"
},
"id" : {
"type" : "keyword"
},
"name" : {
"type" : "text"
}
}
},
"settings" : {
"index" : {
"routing" : {
"allocation" : {
"include" : {
"_tier_preference" : "data_content"
}
}
},
"number_of_shards" : "3",
"provided_name" : "bakwite_01",
"creation_date" : "1764410133763",
"number_of_replicas" : "1",
"uuid" : "7oyq33_lTN6tfHCuIgLeZQ",
"version" : {
"created" : "7172999"
}
}
}
}
}
· 修改索引模板
直接创建相同的名字的索引模板就会自动覆盖
· 删除索引模板
[root@es01 ~ ]# curl -k -u elastic:123456 -X DELETE 'https://10.0.0.101:9200/_index_template/bakwite_index_tmp01'
五、ElasticSearch文档管理
1，准备工作
· 熟悉json格式
Json格式文档：
- 就是不同计算机语言之间，传递数据的一种规则；
- 通过约定好的书写方式，用于不同语言实践交换数据；
{
"name": "bakwite",
"age": 18,
"like": ["长跑","游泳","唱歌"],
"order": {
"收件人": "蛙",
"收货电话": "18522224444",
"收获地址": "北京市朝阳区经纬路己72号",
"购买商品": ["笔记本电脑","手机","SIM卡","野原新之助贴纸手机壳"],
"备注要求": {
"配送时间要求": "下午13:30之后",
"配送员要求": "长得好看，大眼睛，高鼻梁",
"快递配送品牌": ["顺丰","京东"]
}
}
}
· 删除所有索引
# 删除所有索引
[root@es01 ~ ]# curl -k -u elastic:123456 -X DELETE 'https://10.0.0.101:9200/index*'
[root@es01 ~ ]# curl -k -u elastic:123456 -X DELETE 'https://10.0.0.101:9200/bakwite*'
# 查看索引列表确认
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/_cat/indices?v'
health status index uuid pri rep docs.count docs.deleted store.size pri.store.size
green open .geoip_databases oS... 1 1 41 0 78.6mb 39.3mb
green open .security-7 79... 1 1 7 0 51.5kb 25.7kb
· 创建学习索引
1，编辑json文件
[root@es01 ~ ]# vim product.json
{
"aliases":{
"wa_alias_01": {},
"wa_alias_02": {},
"wa_alias_03": {}
},
"mappings": {
"properties": {
"product_name": { "type": "keyword" },
"inventory": { "type": "integer" },
"price": { "type": "float" },
"weight": {
"type": "short",
"index": false
},
"tags": {
"type": "keyword",
"doc_values": true
},
"merchant_ip": { "type": "ip" },
"business_address": { "type": "geo_point" },
"delivery_area": { "type": "geo_shape" },
"product_upload_time": {
"type": "date",
"format": "yyyy-MM-dd HH:mm:ss||epoch_millis"
},
"app_version": { "type": "version" },
"is_up": { "type": "boolean" },
"specifications": {
"type": "object",
"properties": {
"color": { "type": "keyword" },
"size": { "type": "keyword" },
"brand": { "type": "keyword" },
"material": { "type": "text" }
}
},
"comment": {
"type": "text",
"fields": {
"keyword": {
"type": "keyword",
"ignore_above": 256
}
},
"analyzer": "standard"
}
}
},
"settings":{
"number_of_shards": 3,
"number_of_replicas": 1
}
}
2，curl命令调用API创建索引
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/bakwite_index01?pretty" -H 'Content-Type: application/json' --data-binary @./product.json
2，创建文档
· 自定意文档ID创建文档
| 插入字段类型 | 插入时写入 |
|---|---|
| geo_point（坐标点） | [经度，纬度] |
| geo_shape（坐标范围） | 【"type": "envelope"】表示形状为：矩形形状； 写法： "区域字段": { "type": "envelope", "coordinates": [ [116.387123, 39.908992],[116.412877, 39.891008] ] }, |
| geo_shape（坐标范围） | 【"type": "circle"】表示形状为：圆形形状； 写法： "区域字段": { "type": "circle", "coordinates": [116.4, 39.9], :a:注意：这里的中心点，就是商家坐标； "radius": "1000m" :b:表示一公里范围内画圆 } :star:es7.11版本之后才支持； |
| geo_shape（坐标范围） | 【"type": "polygon"】表示多边形；要写很多个点(第1个和最后1个点相同经纬度闭合)； |
# 创建一个文档，文档id为【1】；
[root@es01:~]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/bakwite_index01/_doc/1?pretty" -H 'Content-Type: application/json' -d '
{
"product_name": "高端5G智能手机",
"inventory": 204,
"price": 5999.0,
"weight": 3,
"tags": [ "2025年新款","光学摄像头","自动变焦","限时限量5折抢购","国补99%" ],
"merchant_ip": "120.244.134.121",
"business_address": [116.4, 39.9],
"delivery_area": {
"type": "envelope",
"coordinates": [ [116.387123, 39.908992],[116.412877, 39.891008] ]
},
"product_upload_time": "2025-03-12 21:15:33",
"app_version": "3.1.2",
"is_up": true,
"specifications": {
"color": "尊贵金",
"size": "430x932",
"brand": "华为",
"material": "28K纯金"
},
"comment": "遥遥领先"
}'
# 再创建一个文档，文档id为【2】；（多边形区域）
[root@es01:~]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/bakwite_index01/_doc/2?pretty" -H 'Content-Type: application/json' -d '
{
"product_name": "通用老年机",
"inventory": 2020,
"price": 799.0,
"weight": 12,
"tags": [ "2023款","光学摄像头","自动变焦","限时限量1折抢购","国补30%" ],
"merchant_ip": "123.244.134.106",
"business_address": [115.985000, 40.435000],
"delivery_area": {
"type": "polygon",
"coordinates": [[
[115.975000, 40.435000],
[115.977500, 40.441347],
[115.982500, 40.441347],
[115.985000, 40.435000],
[115.982500, 40.428653],
[115.977500, 40.428653],
[115.975000, 40.435000]
]]
},
"product_upload_time": "2025-01-22 19:18:00",
"app_version": "3.0.1",
"is_up": true,
"specifications": {
"color": "银灰",
"size": "430x932",
"brand": "三星",
"material": "塑料"
},
"comment": "字体大、看得清。"
}'
创建后返回字段说明
| 文档创建返回字段 | 解释说明 |
|---|---|
| "_index" : "index01", | 文档所属的索引名称 |
| "_type" : "_doc", | 文档类型（7.x+版本统一为_doc） |
| "_id" : "2", | 文档唯一ID（请求中指定） |
| "_version" : 1, | 文档版本号（初始为1，每次更新递增） |
| "result" : "created", | 操作结果（created表示新建成功） |
| "_shards" | 分片操作详情 "total" : 2, 应操作的分片总数（主分片+副本分片） "successful" : 2, 成功操作的分片数 "failed" : 0 操作失败的分片数 |
| "_seq_no" : 1, | 序列号（用于并发控制） |
| "_primary_term" : 1 | 主分片任期号（用于故障恢复，故障重启时会自增） |
· 创建文档不指定文档id
注意：
指定文档ID创建文档使用【PUT】【POST】请求方法都允许；
不指定文档ID创建文档必须使用：【POST】；
[root@es01:~]# curl -k -u elastic:123456 -X POST "https://10.0.0.101:9200/bakwite_index01/_doc?pretty" -H 'Content-Type: application/json' -d '
{
"product_name":"轻薄旗舰拍照手机",
"inventory":203,
"price":6899.0,
"weight":16,
"tags":["轻薄旗舰","拍照效果惊艳","便携设计","高颜值","拍照效果出众"],
"merchant_ip":"123.244.150.123",
"business_address":[116.410000,39.900000],
"delivery_area":{
"type":"polygon",
"coordinates":[[
[116.400,39.910],
[116.420,39.910],
[116.420,39.890],
[116.400,39.890],
[116.400,39.910]
]]
},
"product_upload_time":"2025-02-27 17:15:00",
"app_version":"3.2.5",
"is_up":true,
"specifications":{
"color":"晨曦金",
"size":"6.4英寸",
"brand":"OPPO",
"material":"玻璃"
},
"comment":"轻薄设计，拍照效果非常惊艳"
}'
查看所有文档的ID：只看id字段；
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._id' -H 'Content-Type: application/json' -d'
{
"query": {
"match_all": {}
}
}'
# 看到，文档id中，有一个随机的乱码；
# 【结论】不指定文档ID创建文档，会生成一个随机的文档ID；
{
"hits" : {
"hits" : [
{
"_id" : "2"
},
{
"_id" : "2Fc00JoB1vv05c_l1-Gu"
},
{
"_id" : "1"
}
]
}
}
· 批量创建文档
[root@es01:~]# curl -k -u elastic:123456 -X POST 'https://10.0.0.101:9200/_bulk?pretty' -H 'Content-Type: application/json' -d '
{ "index" : { "_index" : "bakwite_index01", "_id" : "3" } }
{"product_name":"高端旗舰智能手机","inventory":156,"price":8999.0,"weight":2,"tags":["2025年新款","徕卡摄像头","5G网络","限时优惠","国补20%","旗舰机型"],"merchant_ip":"123.244.134.107","business_address":[116.408000,39.904000],"delivery_area":{"type":"polygon","coordinates":[[[116.398,39.914],[116.418,39.914],[116.418,39.894],[116.398,39.894],[116.398,39.914]]]},"product_upload_time":"2025-03-15 10:30:00","app_version":"3.2.0","is_up":true,"specifications":{"color":"星空黑","size":"6.7英寸","brand":"华为","material":"陶瓷"},"comment":"拍照效果非常出色，夜景模式强大"}
{ "index" : { "_index" : "bakwite_index01", "_id" : "4" } }
{"product_name":"性价比拍照手机","inventory":289,"price":2999.0,"weight":18,"tags":["2024年新款","索尼摄像头","性价比高","学生优惠","拍照神器"],"merchant_ip":"123.244.135.108","business_address":[116.416000,39.902000],"delivery_area":{"type":"polygon","coordinates":[[[116.406,39.912],[116.426,39.912],[116.426,39.892],[116.406,39.892],[116.406,39.912]]]},"product_upload_time":"2025-03-14 14:20:00","app_version":"2.9.1","is_up":true,"specifications":{"color":"珍珠白","size":"6.5英寸","brand":"小米","material":"玻璃"},"comment":"拍照效果很好，性价比超高"}
'
· 批量创建文档练习
编辑json文件
[root@es01:~]# vim product.json
{ "index" : { "_index" : "bakwite_index01", "_id" : "5" } }
{"product_name":"商务旗舰智能手机","inventory":89,"price":12999.0,"weight":22,"tags":["2025年新款","商务旗舰","安全加密","高端商务","拍照效果优秀"],"merchant_ip":"123.244.136.109","business_address":[116.412000,39.898000],"delivery_area":{"type":"polygon","coordinates":[[[116.402,39.908],[116.422,39.908],[116.422,39.888],[116.402,39.888],[116.402,39.908]]]},"product_upload_time":"2025-03-13 16:45:00","app_version":"3.5.0","is_up":true,"specifications":{"color":"商务灰","size":"6.8英寸","brand":"三星","material":"金属"},"comment":"商务人士首选，安全性能极佳"}
{ "index" : { "_index" : "bakwite_index01", "_id" : "6" } }
{"product_name":"游戏性能旗舰手机","inventory":203,"price":5999.0,"weight":21,"tags":["游戏手机","高性能","散热优秀","120Hz刷新率","拍照效果不错"],"merchant_ip":"123.244.137.110","business_address":[116.404000,39.906000],"delivery_area":{"type":"polygon","coordinates":[[[116.394,39.916],[116.414,39.916],[116.414,39.896],[116.394,39.896],[116.394,39.916]]]},"product_upload_time":"2025-03-12 11:15:00","app_version":"3.1.5","is_up":true,"specifications":{"color":"电竞黑","size":"6.6英寸","brand":"一加","material":"金属"},"comment":"游戏体验极佳，拍照效果也很出色"}
{ "index" : { "_index" : "bakwite_index01", "_id" : "7" } }
{"product_name":"轻薄拍照智能手机","inventory":345,"price":4599.0,"weight":16,"tags":["轻薄设计","拍照效果好","便携","高颜值","拍照效果惊艳"],"merchant_ip":"123.244.138.111","business_address":[116.420000,39.900000],"delivery_area":{"type":"polygon","coordinates":[[[116.410,39.910],[116.430,39.910],[116.430,39.890],[116.410,39.890],[116.410,39.910]]]},"product_upload_time":"2025-03-11 09:30:00","app_version":"2.8.3","is_up":true,"specifications":{"color":"樱花粉","size":"6.4英寸","brand":"OPPO","material":"玻璃"},"comment":"轻薄便携，拍照效果非常惊艳"}
{ "index" : { "_index" : "bakwite_index01", "_id" : "8" } }
{"product_name":"长续航商务手机","inventory":178,"price":3899.0,"weight":19,"tags":["超长续航","商务办公","双卡双待","大电池","性价比高"],"merchant_ip":"123.244.139.112","business_address":[116.418000,39.896000],"delivery_area":{"type":"polygon","coordinates":[[[116.408,39.906],[116.428,39.906],[116.428,39.886],[116.408,39.886],[116.408,39.906]]]},"product_upload_time":"2025-03-10 15:20:00","app_version":"3.0.2","is_up":true,"specifications":{"color":"深海蓝","size":"6.5英寸","brand":"vivo","material":"塑料"},"comment":"续航能力超强，适合商务使用"}
{ "index" : { "_index" : "bakwite_index01", "_id" : "9" } }
{"product_name":"折叠屏旗舰手机","inventory":67,"price":15999.0,"weight":28,"tags":["折叠屏","创新科技","大屏体验","旗舰机型","拍照效果出众"],"merchant_ip":"123.244.140.113","business_address":[116.410000,39.902000],"delivery_area":{"type":"polygon","coordinates":[[[116.400,39.912],[116.420,39.912],[116.420,39.892],[116.400,39.892],[116.400,39.912]]]},"product_upload_time":"2025-03-09 13:10:00","app_version":"3.7.0","is_up":true,"specifications":{"color":"幻影紫","size":"7.6英寸","brand":"华为","material":"陶瓷"},"comment":"折叠屏体验很棒，拍照效果出众"}
{ "index" : { "_index" : "bakwite_index01", "_id" : "10" } }
{"product_name":"学生优惠智能手机","inventory":512,"price":1999.0,"weight":17,"tags":["学生专属","性价比高","学习助手","轻薄便携","拍照效果清晰"],"merchant_ip":"123.244.141.114","business_address":[116.414000,39.904000],"delivery_area":{"type":"polygon","coordinates":[[[116.404,39.914],[116.424,39.914],[116.424,39.894],[116.404,39.894],[116.404,39.914]]]},"product_upload_time":"2025-03-08 17:30:00","app_version":"2.7.1","is_up":true,"specifications":{"color":"学院蓝","size":"6.3英寸","brand":"小米","material":"塑料"},"comment":"学生党必备，性价比超高"}
{ "index" : { "_index" : "bakwite_index01", "_id" : "11" } }
{"product_name":"摄影专业旗舰手机","inventory":94,"price":10999.0,"weight":23,"tags":["专业摄影","哈苏镜头","影像旗舰","拍照效果专业","摄影神器"],"merchant_ip":"123.244.142.115","business_address":[116.406000,39.900000],"delivery_area":{"type":"polygon","coordinates":[[[116.396,39.910],[116.416,39.910],[116.416,39.890],[116.396,39.890],[116.396,39.910]]]},"product_upload_time":"2025-03-07 12:25:00","app_version":"3.6.0","is_up":true,"specifications":{"color":"摄影黑","size":"6.7英寸","brand":"一加","material":"金属"},"comment":"专业级摄影体验，拍照效果非常专业"}
{ "index" : { "_index" : "bakwite_index01", "_id" : "12" } }
{"product_name":"性价比游戏手机","inventory":321,"price":3299.0,"weight":20,"tags":["游戏性能","性价比高","高刷新率","散热优秀","学生优惠"],"merchant_ip":"123.244.143.116","business_address":[116.422000,39.898000],"delivery_area":{"type":"polygon","coordinates":[[[116.412,39.908],[116.432,39.908],[116.432,39.888],[116.412,39.888],[116.412,39.908]]]},"product_upload_time":"2025-03-06 14:50:00","app_version":"3.2.1","is_up":true,"specifications":{"color":"烈焰红","size":"6.5英寸","brand":"realme","material":"塑料"},"comment":"游戏性能优秀，性价比很高"}
{ "index" : { "_index" : "bakwite_index01", "_id" : "13" } }
{"product_name":"商务轻薄旗舰手机","inventory":156,"price":7699.0,"weight":15,"tags":["轻薄商务","高端设计","便携办公","拍照效果优秀","商务旗舰"],"merchant_ip":"123.244.144.117","business_address":[116.408000,39.896000],"delivery_area":{"type":"polygon","coordinates":[[[116.398,39.906],[116.418,39.906],[116.418,39.886],[116.398,39.886],[116.398,39.906]]]},"product_upload_time":"2025-03-05 10:15:00","app_version":"3.3.0","is_up":true,"specifications":{"color":"月光银","size":"6.4英寸","brand":"华为","material":"金属"},"comment":"轻薄设计，拍照效果优秀，商务人士首选"}
{ "index" : { "_index" : "bakwite_index01", "_id" : "14" } }
{"product_name":"长续航拍照手机","inventory":234,"price":4299.0,"weight":19,"tags":["超长续航","拍照效果好","大电池","旅行必备","拍照效果惊艳"],"merchant_ip":"123.244.145.118","business_address":[116.416000,39.906000],"delivery_area":{"type":"polygon","coordinates":[[[116.406,39.916],[116.426,39.916],[116.426,39.896],[116.406,39.896],[116.406,39.916]]]},"product_upload_time":"2025-03-04 16:40:00","app_version":"2.9.5","is_up":true,"specifications":{"color":"森林绿","size":"6.5英寸","brand":"vivo","material":"玻璃"},"comment":"续航和拍照都很出色，旅行拍照效果惊艳"}
{ "index" : { "_index" : "bakwite_index01", "_id" : "15" } }
{"product_name":"旗舰拍照智能手机","inventory":128,"price":8999.0,"weight":21,"tags":["影像旗舰","徕卡合作","拍照效果顶级","专业模式","拍照效果出众"],"merchant_ip":"123.244.146.119","business_address":[116.412000,39.904000],"delivery_area":{"type":"polygon","coordinates":[[[116.402,39.914],[116.422,39.914],[116.422,39.894],[116.402,39.894],[116.402,39.914]]]},"product_upload_time":"2025-03-03 11:55:00","app_version":"3.4.0","is_up":true,"specifications":{"color":"极光色","size":"6.7英寸","brand":"华为","material":"陶瓷"},"comment":"拍照效果顶级，影像旗舰之选"}
{ "index" : { "_index" : "bakwite_index01", "_id" : "16" } }
{"product_name":"性价比拍照神器","inventory":445,"price":2599.0,"weight":18,"tags":["拍照神器","性价比高","学生优选","拍照效果清晰","限时优惠"],"merchant_ip":"123.244.147.120","business_address":[116.420000,39.902000],"delivery_area":{"type":"polygon","coordinates":[[[116.410,39.912],[116.430,39.912],[116.430,39.892],[116.410,39.892],[116.410,39.912]]]},"product_upload_time":"2025-03-02 13:20:00","app_version":"2.8.0","is_up":true,"specifications":{"color":"珊瑚橙","size":"6.4英寸","brand":"小米","material":"塑料"},"comment":"真正的拍照神器，性价比超高"}
{ "index" : { "_index" : "bakwite_index01", "_id" : "17" } }
{"product_name":"游戏拍照全能手机","inventory":189,"price":5499.0,"weight":22,"tags":["游戏全能","拍照优秀","性能强劲","散热优秀","拍照效果出色"],"merchant_ip":"123.244.148.121","business_address":[116.404000,39.898000],"delivery_area":{"type":"polygon","coordinates":[[[116.394,39.908],[116.414,39.908],[116.414,39.888],[116.394,39.888],[116.394,39.908]]]},"product_upload_time":"2025-03-01 15:10:00","app_version":"3.1.8","is_up":true,"specifications":{"color":"电竞蓝","size":"6.6英寸","brand":"一加","material":"金属"},"comment":"游戏和拍照都很出色，全能选手"}
{ "index" : { "_index" : "bakwite_index01", "_id" : "18" } }
{"product_name":"商务精英旗舰手机","inventory":76,"price":11999.0,"weight":24,"tags":["商务精英","安全旗舰","高端材质","拍照效果专业","商务办公"],"merchant_ip":"123.244.149.122","business_address":[116.418000,39.904000],"delivery_area":{"type":"polygon","coordinates":[[[116.408,39.914],[116.428,39.914],[116.428,39.894],[116.408,39.894],[116.408,39.914]]]},"product_upload_time":"2025-02-28 09:45:00","app_version":"3.8.0","is_up":true,"specifications":{"color":"钛金灰","size":"6.8英寸","brand":"三星","material":"钛合金"},"comment":"商务精英首选，拍照效果专业"}
{ "index" : { "_index" : "bakwite_index01", "_id" : "19" } }
{"product_name":"轻薄旗舰拍照手机","inventory":203,"price":6899.0,"weight":16,"tags":["轻薄旗舰","拍照效果惊艳","便携设计","高颜值","拍照效果出众"],"merchant_ip":"123.244.150.123","business_address":[116.410000,39.900000],"delivery_area":{"type":"polygon","coordinates":[[[116.400,39.910],[116.420,39.910],[116.420,39.890],[116.400,39.890],[116.400,39.910]]]},"product_upload_time":"2025-02-27 17:15:00","app_version":"3.2.5","is_up":true,"specifications":{"color":"晨曦金","size":"6.4英寸","brand":"OPPO","material":"玻璃"},"comment":"轻薄设计，拍照效果非常惊艳"}
curl命令调用API创建
[root@es01:~]# curl -k -u elastic:123456 -X POST 'https://10.0.0.101:9200/_bulk?pretty' -H 'Content-Type: application/json' --data-binary @./product.json
3，查询文档
· 查看单个文档ID数据
| 字段说明 | 解释说明 |
|---|---|
| _index | 索引名称 |
| _type | 文档类型 |
| _id | 文档ID |
| _version | 版本号；用于"乐观锁控制"，防止不同用户同时修改相同数据的版本号控制方式；每次修改都会增加； |
| _seq_no | 序列号；在索引内唯一，用于保证操作顺序，每次写/修改都自动+1，记录修改次数； |
| _premary_term | 主术语；主分片的任期标识，与_seq_no序列号一起使用，控制并发。主分片故障转移时，自动+1； |
| found | 是否查找到数据？true/false； |
| _source | 数据内容 |
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/bakwite_index01/_doc/1?pretty'
{
"_index" : "bakwite_index01",
"_type" : "_doc",
"_id" : "1",
"_version" : 1,
"_seq_no" : 1,
"_primary_term" : 1,
"found" : true,
"_source" : {
"product_name" : "高端5G智能手机",
"inventory" : 204,
"price" : 5999.0,
"weight" : 3,
"tags" : ["2025年新款","光学摄像头","自动变焦","限时限量5折抢购","国补99%"],
"merchant_ip" : "120.244.134.121",
"business_address" : [116.4,39.9],
"delivery_area" : {
"type" : "envelope",
"coordinates" : [[116.387123,39.908992],[116.412877,39.891008]]
},
"product_upload_time" : "2025-03-12 21:15:33",
"app_version" : "3.1.2",
"is_up" : true,
"specifications" : {
"color" : "尊贵金",
"size" : "430x932",
"brand" : "华为",
"material" : "28K纯金"
},
"comment" : "遥遥领先"
}
}
· 查看多个文档ID数据
# 批量查询多个文档（是能查询ID或者index索引，数据字段无法查询哦）
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/_mget?pretty" -H 'Content-Type: application/json' -d'
{
"docs": [
{
"_index": "bakwite_index01",
"_id": "2"
},
{
"_index": "bakwite_index01",
"_id": "3"
}
]
}'
查询结果
{
"docs" : [
{
"_index" : "bakwite_index01",
"_type" : "_doc",
"_id" : "2",
"_version" : 1,
"_seq_no" : 0,
"_primary_term" : 1,
"found" : true,
"_source" : {
"product_name" : "通用老年机",
.......
},
{
"_index" : "bakwite_index01",
"_type" : "_doc",
"_id" : "3",
"_version" : 1,
"_seq_no" : 2,
"_primary_term" : 1,
"found" : true,
"_source" : {
"product_name" : "高端旗舰智能手机",
......
}
]
}
· 查看所有文档
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/dest_index/_search?pretty"
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty"
· 限制显示查询结果的字段
1，过滤查询结果元数据信息
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/_mget?pretty&filter_path=docs._source" -H 'Content-Type: application/json' -d'
{
"docs": [
{
"_index": "bakwite_index01",
"_id": "2"
},
{
"_index": "bakwite_index01",
"_id": "3"
}
]
}'
查看结果
{
"docs" : [
{
"_source" : {
"product_name" : "通用老年机",
"inventory" : 2020,
"price" : 799.0,
"weight" : 12,
"tags" : [
"2023款",
"光学摄像头",
"自动变焦",
"限时限量1折抢购",
"国补30%"
],
"merchant_ip" : "123.244.134.106",
"business_address" : [
115.985,
40.435
],
"delivery_area" : {
"type" : "polygon",
"coordinates" : [
[
[
115.975,
40.435
],
[
115.9775,
40.441347
],
[
115.9825,
40.441347
],
[
115.985,
40.435
],
[
115.9825,
40.428653
],
[
115.9775,
40.428653
],
[
115.975,
40.435
]
]
]
},
"product_upload_time" : "2025-01-22 19:18:00",
"app_version" : "3.0.1",
"is_up" : true,
"specifications" : {
"color" : "银灰",
"size" : "430x932",
"brand" : "三星",
"material" : "塑料"
},
"comment" : "字体大、看得清。"
}
},
{
"_source" : {
"product_name" : "高端旗舰智能手机",
"inventory" : 156,
"price" : 8999.0,
"weight" : 2,
"tags" : [
"2025年新款",
"徕卡摄像头",
"5G网络",
"限时优惠",
"国补20%",
"旗舰机型"
],
"merchant_ip" : "123.244.134.107",
"business_address" : [
116.408,
39.904
],
"delivery_area" : {
"type" : "polygon",
"coordinates" : [
[
[
116.398,
39.914
],
[
116.418,
39.914
],
[
116.418,
39.894
],
[
116.398,
39.894
],
[
116.398,
39.914
]
]
]
},
"product_upload_time" : "2025-03-15 10:30:00",
"app_version" : "3.2.0",
"is_up" : true,
"specifications" : {
"color" : "星空黑",
"size" : "6.7英寸",
"brand" : "华为",
"material" : "陶瓷"
},
"comment" : "拍照效果非常出色，夜景模式强大"
}
}
]
}
2，设置文档显示的字段
| 字段 | 含义说明 |
|---|---|
| _source | 从显示结果中，指定哪些字段显示，其余的不显示； "_source": "username" :a:指定单个字段 "_source": ["username", "tags"] :b:指定多个字段 |
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/_mget?pretty&filter_path=docs._source" -H 'Content-Type: application/json' -d'
{
"docs": [
{
"_index": "bakwite_index01",
"_id": "2",
"_source": [ "merchant_ip","product_upload_time" ]
},
{
"_index": "bakwite_index01",
"_id": "3",
"_source": [ "merchant_ip","product_upload_time" ]
}
]
}'
查看返回结果
{
"docs" : [
{
"_source" : {
"merchant_ip" : "123.244.134.106",
"product_upload_time" : "2025-01-22 19:18:00"
}
},
{
"_source" : {
"merchant_ip" : "123.244.134.107",
"product_upload_time" : "2025-03-15 10:30:00"
}
}
]
}
3，设置文档不显示的字段
| 字段 | 含义说明 |
|---|---|
| _source.excludes | 排除哪些文档字段不显示 |
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/_mget?pretty&filter_path=docs._source" -H 'Content-Type: application/json' -d'
{
"docs": [
{
"_index": "bakwite_index01",
"_id": "2",
"_source": {
"excludes": ["business_address","delivery_area","tags","specifications"]
}
},
{
"_index": "bakwite_index01",
"_id": "3",
"_source": {
"excludes": ["business_address","delivery_area","tags","specifications"]
}
}
]
}'
查看显示
{
"docs" : [
{
"_source" : {
"app_version" : "3.0.1",
"price" : 799.0,
"merchant_ip" : "123.244.134.106",
"weight" : 12,
"comment" : "字体大、看得清。",
"inventory" : 2020,
"product_name" : "通用老年机",
"is_up" : true,
"product_upload_time" : "2025-01-22 19:18:00"
}
},
{
"_source" : {
"app_version" : "3.2.0",
"price" : 8999.0,
"merchant_ip" : "123.244.134.107",
"weight" : 2,
"comment" : "拍照效果非常出色，夜景模式强大",
"inventory" : 156,
"product_name" : "高端旗舰智能手机",
"is_up" : true,
"product_upload_time" : "2025-03-15 10:30:00"
}
}
]
}
4，修改文档数据
· 准备测试数据
提示：
- 如果创建索引不映射字段类型，也可以直接写入字段和数据；
- 但是，数据的类型就会被es自动推导、自动生成，很容易不准确；
- 生产环境不建议使用；
# 创建索引
[root@es01:~]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/mod_index01?pretty" -H 'Content-Type: application/json' -d '
{
"settings":{
"number_of_shards": 3,
"number_of_replicas": 1
}
}'
# 创建文档
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/mod_index01/_doc/1?pretty" -H 'Content-Type: application/json' -d'
{
"name": "裤子",
"price": "1200",
"color": "黑色"
}'
· 全量覆盖更新文档数据
# 全量更新数据信息
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/mod_index01/_doc/1?pretty" -H 'Content-Type: application/json' -d'
{
"name": "外套"
}'
# 更新结果回显
{
"_index" : "wa_index01",
"_type" : "_doc",
"_id" : "1",
"_version" : 2, # 数据版本；变为了2；
"result" : "updated", # 修改结果，已更新
"_shards" : {
"total" : 2,
"successful" : 2,
"failed" : 0
},
"_seq_no" : 1, # 序列号
"_primary_term" : 1 # 主术语：主分片的任期标识‘
}
查看数据验证：发现，之前的数据全没了，全被新数据覆盖了；
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/mod_index01/_doc/1?pretty'
{
"_index" : "mod_index01",
"_type" : "_doc",
"_id" : "1",
"_version" : 2,
"_seq_no" : 1,
"_primary_term" : 1,
"found" : true,
"_source" : {
"name" : "外套" # 只剩下了这一个字段，另外两个字段没了；
}
}
· 局部更新文档数据
# 创建文档
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/mod_index01/_doc/2?pretty" -H 'Content-Type: application/json' -d'
{
"name": "裤子",
"price": "1200",
"color": "黑色"
}'
# 采用局部更新，修改一个字段，新增一个字段
[root@es01 ~ ]# curl -k -u elastic:123456 -X POST "https://10.0.0.101:9200/mod_index01/_update/2?pretty" -H 'Content-Type: application/json' -d'
{
"doc": {
"price": "859",
"库存": "3"
}
}'
更新后查看：
- 原来的字段没有变动，未被覆盖；
- 新增的和修改的都被成功了；
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/mod_index01/_doc/2?pretty'
{
"_index" : "mod_index01",
"_type" : "_doc",
"_id" : "2",
"_version" : 2,
"_seq_no" : 1,
"_primary_term" : 1,
"found" : true,
"_source" : {
"name" : "裤子", # 之前的数据还在
"price" : "859", # 之前的数据更新修改成功
"color" : "黑色", # 之前的数据还在
"库存" : "3" # 新增的数据字段
}
}
· 批量修改数据
1，批量修改
[root@es01 ~ ]# curl -k -u elastic:123456 -X POST 'https://10.0.0.101:9200/_bulk?pretty' -H 'Content-Type: application/json' -d'
{ "update": {"_index": "mod_index01", "_id": "1" }}
{ "doc": {"name": "袜子", "type": "生活用品" } }
{ "update": {"_index": "mod_index01", "_id": "2" }}
{ "doc": {"name": "携带", "type": "生活用品" } }
'
2，批量查看文档验证数据
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/_mget?pretty&filter_path=docs._source" -H 'Content-Type: application/json' -d'
{
"docs": [
{
"_index": "mod_index01",
"_id": "1"
},
{
"_index": "mod_index01",
"_id": "2"
}
]
}'
返回结果查看
{
"docs" : [
{
"_source" : {
"name" : "袜子",
"type" : "生活用品"
}
},
{
"_source" : {
"name" : "携带",
"price" : "859",
"color" : "黑色",
"库存" : "3",
"type" : "生活用品"
}
}
]
}
5，删除文档
· 根据文档ID删除
1，删除单个文档ID
# 删除 mod_index01 中 ID=1 的文档
[root@es01 ~ ]# curl -k -u elastic:123456 -X DELETE "https://10.0.0.101:9200/mod_index01/_doc/1?pretty"
# 操作结果显示
{
"_index" : "wa_index01",
"_type" : "_doc",
"_id" : "1",
"_version" : 4,
"result" : "deleted", # 操作结果：已删除
"_shards" : {
"total" : 2,
"successful" : 2,
"failed" : 0
},
"_seq_no" : 3, # 数据序列号
"_primary_term" : 1 # 数据主术语
}
2，批量删除文档ID
# 批量写入
[root@es01:~]# curl -k -u elastic:123456 -X POST 'https://10.0.0.101:9200/_bulk?pretty' -H 'Content-Type: application/json' -d '
{ "index" : { "_index" : "mod_index01", "_id" : "3" } }
{ "name": "张三", "sex": "男", "age": "18" }
{ "index" : { "_index" : "mod_index01", "_id" : "4" } }
{ "name": "李四", "sex": "男", "age": "18" }
{ "index" : { "_index" : "mod_index01", "_id" : "5" } }
{ "name": "王五", "sex": "男", "age": "18" }
{ "index" : { "_index" : "mod_index01", "_id" : "6" } }
{ "name": "赵六", "sex": "男", "age": "18" }
'
# 批量删除
[root@es01 ~ ]# curl -k -u elastic:123456 -X POST "https://10.0.0.101:9200/_bulk?pretty" -H 'Content-Type: application/json' -d'
{ "delete" : { "_index" : "mod_index01", "_id" : "2" } }
{ "delete" : { "_index" : "mod_index01", "_id" : "3" } }
{ "delete" : { "_index" : "mod_index01", "_id" : "4" } }
{ "delete" : { "_index" : "mod_index01", "_id" : "5" } }
{ "delete" : { "_index" : "mod_index01", "_id" : "6" } }
'
· 根据查询条件删除
1，准备数据
# 批量写入
[root@es01:~]# curl -k -u elastic:123456 -X POST 'https://10.0.0.101:9200/_bulk?pretty' -H 'Content-Type: application/json' -d '
{ "index" : { "_index" : "mod_index01", "_id" : "3" } }
{ "name": "张三", "sex": "男", "age": "18" }
{ "index" : { "_index" : "mod_index01", "_id" : "4" } }
{ "name": "李四", "sex": "男", "age": "18" }
{ "index" : { "_index" : "mod_index01", "_id" : "5" } }
{ "name": "王五", "sex": "男", "age": "18" }
{ "index" : { "_index" : "mod_index01", "_id" : "6" } }
{ "name": "赵六", "sex": "男", "age": "18" }
'
2，根据模糊查询条件删除
# 【匹配删除】删除所有mod_index开头的索引中，name字段为"张三"的文档
[root@es01 ~ ]# curl -k -u elastic:123456 -X POST "https://10.0.0.101:9200/mod_index01/_delete_by_query?pretty" -H 'Content-Type: application/json' -d'
{
"query": {
"match": {
"name": "张三"
}
}
}'
查看返回结果
{
"took" : 1008,
"timed_out" : false,
"total" : 1,
"deleted" : 1, # 已删除
"batches" : 1,
"version_conflicts" : 0,
"noops" : 0,
"retries" : {
"bulk" : 0,
"search" : 0
},
"throttled_millis" : 0,
"requests_per_second" : -1.0,
"throttled_until_millis" : 0,
"failures" : [ ]
}
3，根据通配符匹配删除
# 【模糊匹配删除】删除所有mod_index开头的索引中type字段为"文"字开头的文档
# 如果字段值有变化，使用通配符
[root@es01 ~ ]# curl -k -u elastic:123456 -X POST "https://10.0.0.101:9200/mod_index01/_delete_by_query?pretty" -H 'Content-Type: application/json' -d'
{
"query": {
"wildcard": {
"name": "*王*"
}
}
}'
返回结果显示：已删除
{
"took" : 302,
"timed_out" : false,
"total" : 1,
"deleted" : 1,
"batches" : 1,
"version_conflicts" : 0,
"noops" : 0,
"retries" : {
"bulk" : 0,
"search" : 0
},
"throttled_millis" : 0,
"requests_per_second" : -1.0,
"throttled_until_millis" : 0,
"failures" : [ ]
}
查看索引列表会显示删除的操作记录
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/_cat/indices?v'
6，文档跨索引迁移
· 准备要迁移的文档数据
1，创建索引
假设，我们创建一个索引，映射两个字段：
- product_name商品名称，我们映射为text类型；
- price商品价格，我们映射为keyword；
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/move_index?pretty" -H 'Content-Type: application/json' -d '
{
"mappings": {
"properties": {
"product_name": {
"type": "text"
},
"price": {
"type": "float"
}
}
},
"settings": {
"number_of_shards": 3,
"number_of_replicas": 1
}
}
'
查看索引字段映射确认
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/move_index/_mapping?pretty"
{
"move_index01" : {
"mappings" : {
"properties" : {
"price" : {
"type" : "keyword"
},
"product_name" : {
"type" : "float"
}
}
}
}
}
2，写入3个文档
[root@es01 ~ ]# curl -k -u elastic:123456 -X POST "https://10.0.0.101:9200/move_index/_bulk?pretty" -H 'Content-Type: application/json' -d'
{ "index" : { "_id" : "1000" } }
{ "product_name": "5G高端智能手机", "price": 2400.0 }
{ "index" : { "_id" : "1001" } }
{ "product_name": "高端老年机", "price": 500.0 }
{ "index" : { "_id" : "1002" } }
{ "product_name": "SKii", "price": "1000.0" }
'
· 迁移全部字段数据
1，准备新索引
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/dest_index?pretty" -H 'Content-Type: application/json' -d '
{
"mappings": {
"properties": {
"product_name": {
"type": "keyword"
},
"price": {
"type": "float"
}
}
},
"settings": {
"number_of_shards": 3,
"number_of_replicas": 1
}
}
'
2，迁移数据
[root@es01 ~ ]# curl -k -u elastic:123456 -X POST "https://10.0.0.101:9200/_reindex?pretty" -H 'Content-Type: application/json' -d'
{
"source": { "index": "move_index" },
"dest": { "index": "dest_index" }
}'
3，查看新索引文档验证
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/dest_index/_search?pretty"
{
"took" : 5,
"timed_out" : false,
"_shards" : {
"total" : 3,
"successful" : 3,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 3,
"relation" : "eq"
},
"max_score" : 1.0,
"hits" : [
{
"_index" : "dest_index",
"_type" : "_doc",
"_id" : "1002",
"_score" : 1.0,
"_source" : {
"product_name" : "SKii",
"price" : "1000.0"
}
},
{
"_index" : "dest_index",
"_type" : "_doc",
"_id" : "1000",
"_score" : 1.0,
"_source" : {
"product_name" : "5G高端智能手机",
"price" : 2400.0
}
},
{
"_index" : "dest_index",
"_type" : "_doc",
"_id" : "1001",
"_score" : 1.0,
"_source" : {
"product_name" : "高端老年机",
"price" : 500.0
}
}
]
}
}
· 过滤后迁移
1，准备新索引
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/filter_index?pretty" -H 'Content-Type: application/json' -d '
{
"mappings": {
"properties": {
"product_name": {
"type": "keyword"
},
"price": {
"type": "float"
}
}
},
"settings": {
"number_of_shards": 3,
"number_of_replicas": 1
}
}
'
2，过滤部分数据再迁移
只迁移价格大于2000的数据文档
[root@es01 ~ ]# curl -k -u elastic:123456 -X POST "https://10.0.0.101:9200/_reindex?pretty" -H 'Content-Type: application/json' -d'
{
"source": {
"index": "move_index",
"query": {
"range": {
"price": { "gte": 2000 }
}
}
},
"dest": { "index": "filter_index" }
}'
3，查看新索引文档数据
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/filter_index/_search?pretty"
{
"took" : 711,
"timed_out" : false,
"_shards" : {
"total" : 3,
"successful" : 3,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 1,
"relation" : "eq"
},
"max_score" : 1.0,
"hits" : [
{
"_index" : "filter_index",
"_type" : "_doc",
"_id" : "1000",
"_score" : 1.0,
"_source" : {
"product_name" : "5G高端智能手机",
"price" : 2400.0
}
}
]
}
}
6，查看新索引数据
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index03/_search?pretty"
{
"took" : 962,
"timed_out" : false,
"_shards" : {
"total" : 3,
"successful" : 3,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 3,
"relation" : "eq"
},
"max_score" : 1.0,
"hits" : [
{
"_index" : "bakwite_index03",
"_type" : "_doc",
"_id" : "1002",
"_score" : 1.0,
"_source" : {
"commodity_id" : "ID1002"
}
},
{
"_index" : "bakwite_index03",
"_type" : "_doc",
"_id" : "1000",
"_score" : 1.0,
"_source" : {
"commodity_id" : "ID1000"
}
},
{
"_index" : "bakwite_index03",
"_type" : "_doc",
"_id" : "1001",
"_score" : 1.0,
"_source" : {
"commodity_id" : "ID1001"
}
}
]
}
}
六、ElasticSearch文档过滤
1，ES存储数据原理
· ES数据存储方式
| 存储方式 | 解释说明 |
|---|---|
| 行式存储 | 文档必须存储的方式，每创建一个文档，ES都会将其以行式存储到系统中； |
| 列式存储 | 创建索引映射字段时自定义某一列的单独存储方式，为了将来对这个字段列进行排序、计算、统计等操作； |
列示存储：
文档id age字段
1 18
2 22
3 25
4 19
行式存储
文档id name字段 age字段 sex字段 评价字段
1 张三 18 男 学习成绩优异，努力。
· ES倒排索引【查询】数据
1，查询精确类型数据
当你查询sex字段时：
- sex字段的类型为keyword，精确查找类型；所以不分词；
- 直接将源字段值整合到一起进行查询；
- 如果你查询sex字段下的【男】，那么会直接获取到文档id；并索引到整个文档数据；
# 查询sex字段
【sex字段】 【属于的文档】
男 1，3
女 2，4
# 查询name字段
【name字段】 【属于的文档】
张三 1
李四 2
王五 3
赵六 4
2，查询text类型数据
当你查询【评价】字段时：
- name字段的类型为text，模糊查找类型；所以系统会根据分词器进行分词；
- 默认的分词器【Standard】它会将：
- 英文：以单词为单位进行分词；【hello、world】
- 中文：以一个汉字为一个词进行拆分；【你、好、世、界】
【评价字段】 【属于的文档】
学 1,2,3,4
习 1,4
成 1,4
绩 1,4
优 1
异 1
努 1
力 1
这 2
个 2
生 2,3
很 2
不 2
错 2
家 3
庭 3
条 3
件 3
好 3
中 4
等 4
· ES正排索引【计算】数据
当我们需要计算姓名name字段的重复数量时，系统会采用【正排索引】
【文档id】 【name字段】
1 张三
2 李四
3 王五
4 赵六
当我们要计算平均年龄时
【文档id】 【age字段】
1 18
2 22
3 25
4 19
2，查询所有文档数据match_all
· 匹配所有match_all
| 查询语法字段 | 含义说明 |
|---|---|
| query | 表示查询文档数据 |
| match_all | 匹配所有文档； |
我们目前有20个文档，结果特别杂乱；
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/bakwite_index01/_search?pretty' -H 'Content-Type: application/json' -d'
{
"query":{
"match_all":{}
}
}'
查询结果格式
| 元数据【一级字段】 | 元数据【二级字段】 | 字段说明 |
|---|---|---|
| took | 查询耗时，单位：毫秒 | |
| time_out | 是否查询超时 | |
| _shard | ["total" : 3]：一共查了多少个分片； ["successful" : 3]：在多少个分片查询成功； ["skipped" : 0]：跳过了多少个分片； [failed" : 0]：在多少个分片查询出错； |
|
| hits | 命中情况 | |
| total | 命中总体情况 ["value" : 20]：命中文档总数 ["relation" : "eq"]：eq为匹配，gte为近似匹配 |
|
| max_score | 相关性评分，就是【查询条件】与【查询结果】的匹配程度；范围：0到2.5 | |
| hits | 匹配到的具体索引与文档的数据信息； |
{
"took" : 4,
"timed_out" : false,
"_shards" : {
"total" : 3,
"successful" : 3,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 20,
"relation" : "eq"
},
"max_score" : 1.0,
"hits" : [
{
"_index" : "bakwite_index01",
"_type" : "_doc",
"_id" : "5",
"_score" : 1.0,
"_source" : {
"product_name" : "商务旗舰智能手机",
"inventory" : 89,
"price" : 12999.0,
"weight" : 22,
"tags" : [
"2025年新款",
"商务旗舰",
"安全加密",
"高端商务",
"拍照效果优秀"
],
"merchant_ip" : "123.244.136.109",
......
}
}
]
}
}
· 查询结果显示设置
1，限制【本页】返回文档的数量size
| 字段 | 含义说明 |
|---|---|
| size | 限制【本页】返回文档的数量 |
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/bakwite_index01/_search?pretty' -H 'Content-Type: application/json' -d'
{
"query":{
"match_all":{}
},
"size": 1
}'
2，分页显示数据
| 字段 | 含义说明 |
|---|---|
| from | 从第几个数据开始显示；（如果size设置为10，from设置为20，表示从第3页开始显示） |
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/bakwite_index01/_search?pretty' -H 'Content-Type: application/json' -d'
{
"query":{
"match_all":{}
},
"from": 10,
"size": 10
}'
3，去除元数据指定字段显示
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source' -H 'Content-Type: application/json' -d'
{
"query":{
"match_all":{}
},
"from": 10,
"size": 10,
"_source": [ "merchant_ip","product_upload_time" ]
}'
查看显示结果
{
"hits" : {
"hits" : [
{
"_source" : {
"merchant_ip" : "123.244.146.119",
"product_upload_time" : "2025-03-03 11:55:00"
}
},
{
"_source" : {
"merchant_ip" : "123.244.150.123",
"product_upload_time" : "2025-02-27 17:15:00"
}
},
{
"_source" : {
"merchant_ip" : "120.244.134.121",
"product_upload_time" : "2025-03-12 21:15:33"
}
},
{
"_source" : {
"merchant_ip" : "123.244.137.110",
"product_upload_time" : "2025-03-12 11:15:00"
}
},
{
"_source" : {
"merchant_ip" : "123.244.139.112",
"product_upload_time" : "2025-03-10 15:20:00"
}
},
{
"_source" : {
"merchant_ip" : "123.244.140.113",
"product_upload_time" : "2025-03-09 13:10:00"
}
},
{
"_source" : {
"merchant_ip" : "123.244.142.115",
"product_upload_time" : "2025-03-07 12:25:00"
}
},
{
"_source" : {
"merchant_ip" : "123.244.147.120",
"product_upload_time" : "2025-03-02 13:20:00"
}
},
{
"_source" : {
"merchant_ip" : "123.244.148.121",
"product_upload_time" : "2025-03-01 15:10:00"
}
},
{
"_source" : {
"merchant_ip" : "123.244.149.122",
"product_upload_time" : "2025-02-28 09:45:00"
}
}
]
}
}
· 查询结果字段排序
1，查询价格字段
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source' -H 'Content-Type: application/json' -d'
{
"query":{
"match_all":{}
},
"from": 5,
"size": 5,
"_source": "price"
}'
2，根据价格字段排序
| 字段 | 含义 |
|---|---|
| order | 排序：asc表示从小到大，desc表示从大到小 |
| "missing": "_last" | 表示：没有数据的文档，如何处理？【_last】表示放到最后显示； |
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source' -H 'Content-Type: application/json' -d'
{
"query":{
"match_all":{}
},
"sort": [
{
"price": {
"order": "asc",
"missing": "_last"
}
}
],
"from": 5,
"size": 5,
"_source": "price"
}'
查询结果
{
"hits" : {
"hits" : [
{
"_source" : {
"price" : 3899.0
}
},
{
"_source" : {
"price" : 4299.0
}
},
{
"_source" : {
"price" : 4599.0
}
},
{
"_source" : {
"price" : 5499.0
}
},
{
"_source" : {
"price" : 5999.0
}
}
]
}
}
3，模糊查询数据
| 模糊匹配方法 | 适合查询类型 | 解释说明 |
|---|---|---|
| match | text | 分词模糊匹配单个字段 |
| multi_match | text | 分词模糊匹配多个字段 |
| match_phrase | text | 分词短语模糊匹配 |
| wildcard | keyword | 通配符匹配 |
| fuzziness | text和keyword | 查询keyword类型时（查询test类型时无所谓），查询词，必须与字段值的字符数相同； |
· 准备测试数据
# 创建新索引映射text类型
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:9200/match_index01?pretty" -H 'Content-Type: application/json' -d'
{
"mappings": {
"properties": {
"name": {
"type": "text",
"analyzer": "standard"
}
}
},
"settings": {
"number_of_shards": 3,
"number_of_replicas": 1
}
}'
# 批量写入测试数据文档
[root@es01:~]# curl -k -u elastic:123456 -X POST 'https://10.0.0.101:9200/_bulk?pretty' -H 'Content-Type: application/json' -d '
{ "index" : { "_index" : "match_index01", "_id" : "1" } }
{ "name": "高端智能手机" }
{ "index" : { "_index" : "match_index01", "_id" : "2" } }
{ "name": "手表维修机" }
{ "index" : { "_index" : "match_index01", "_id" : "3" } }
{ "name": "防割伤手套" }
{ "index" : { "_index" : "match_index01", "_id" : "4" } }
{ "name": "AI智能扫地机器人" }
{ "index" : { "_index" : "match_index01", "_id" : "5" } }
{ "name": "电饭煲" }
'
· match匹配text类型
1，模糊匹配【或】
| 字段位置 | 字段 | 解释说明 |
|---|---|---|
| URL参数 | pretty | json格式显示 |
| URL参数 | filter_path | 过滤查询结果的显示字段 |
| 查询字段 | query | 表示查询 |
| 查询字段 | match | 模糊匹配查询 |
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/match_index01/_search?pretty&filter_path=hits.hits._source" -H 'Content-Type: application/json' -d'
{
"query": {
"match": {
"name": "手机"
}
}
}'
# 或者可以写成：
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/match_index01/_search?pretty&filter_path=hits.hits._source" -H 'Content-Type: application/json' -d'
{
"query": {
"match": {
"name": {
"query": "手机"
}
}
}
}'
查看结果：凡是有【手】或者【机】的文档都被查询了出来；
{
"hits" : {
"hits" : [
{
"_source" : {
"name" : "手表维修机"
}
},
{
"_source" : {
"name" : "高端智能手机"
}
},
{
"_source" : {
"name" : "防割伤手套"
}
},
{
"_source" : {
"name" : "AI智能扫地机器人"
}
}
]
}
}
2，模糊匹配【与】
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/match_index01/_search?pretty&filter_path=hits.hits._source" -H 'Content-Type: application/json' -d'
{
"query": {
"match": {
"name": {
"query": "手机",
"operator": "and"
}
}
}
}'
查看返回结果:这次是【与】的关系，必须同时满足分词；必须同时包含【手】和【机】
{
"hits" : {
"hits" : [
{
"_source" : {
"name" : "手表维修机"
}
},
{
"_source" : {
"name" : "高端智能手机"
}
}
]
}
}
3，匹配原理
| match匹配原则 |
|---|
| 【查询词】与【被查询词】中的分词，只要有一个分词匹配成功，则算作命中； |
我们知道，根据【ES倒排索引】的原理可知：
- 默认的分词器【Standard】，会将【被查询数据】与【查询词】进行分词；
- 切如果查询的是汉语，会一个汉字一个词的分词方式；
· multi_match匹配多字段
1，匹配text类型多字段
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source' -H 'Content-Type: application/json' -d'
{
"query": {
"multi_match": {
"query": "商务",
"fields": ["specifications.color", "comment"]
}
},
"_source": ["specifications.color", "comment"]
}'
查看匹配结果
{
"hits" : {
"hits" : [
{
"_source" : {
"comment" : "续航能力超强，适合商务使用",
"specifications" : {
"color" : "深海蓝"
}
}
},
{
"_source" : {
"comment" : "商务精英首选，拍照效果专业",
"specifications" : {
"color" : "钛金灰"
}
}
},
{
"_source" : {
"comment" : "商务人士首选，安全性能极佳",
"specifications" : {
"color" : "商务灰"
}
}
},
{
"_source" : {
"comment" : "轻薄设计，拍照效果优秀，商务人士首选",
"specifications" : {
"color" : "月光银"
}
}
}
]
}
}
2，匹配设置容错
| 字段 | 含义说明 |
|---|---|
| "fuzziness": "AUTO" | 表示允许搜索词错几个字，AUTO表示自动，也可以设置数值； |
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source' -H 'Content-Type: application/json' -d'
{
"query": {
"multi_match": {
"query": "商午",
"fields": ["specifications.color", "comment"],
"fuzziness": "AUTO"
}
},
"_source": ["specifications.color", "comment"]
}'
返回结果查看
{
"hits" : {
"hits" : [
{
"_source" : {
"comment" : "续航能力超强，适合商务使用",
"specifications" : {
"color" : "深海蓝"
}
}
},
{
"_source" : {
"comment" : "商务精英首选，拍照效果专业",
"specifications" : {
"color" : "钛金灰"
}
}
},
{
"_source" : {
"comment" : "商务人士首选，安全性能极佳",
"specifications" : {
"color" : "商务灰"
}
}
},
{
"_source" : {
"comment" : "轻薄设计，拍照效果优秀，商务人士首选",
"specifications" : {
"color" : "月光银"
}
}
}
]
}
}
· match_phrase短语模糊搜索text类型
| match_phrase查询原理 |
|---|
| 【查询词】与被查询词的分词，必须全部命中，切必须是连续的（比如查询"手机"，被查询词中也必须是"手机"，不能是"机手"） |
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/match_index01/_search?pretty&filter_path=hits.hits._source" -H 'Content-Type: application/json' -d'
{
"query": {
"match_phrase": {
"name": "手机"
}
}
}'
查看结果：只显示了有【手机】这个词的文档；
{
"hits" : {
"hits" : [
{
"_source" : {
"name" : "高端智能手机"
}
}
]
}
}
· wildcard通配符匹配keyword类型
| 字段 | 查询类型 | 含义说明 |
|---|---|---|
| wildcard | keyword | 表示使用通配符进行数据匹配； |
# 使用 * 和 ? 通配符匹配，【字段结尾】是【手机】的文档
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source' -H 'Content-Type: application/json' -d'
{
"query": {
"wildcard": {
"product_name": {
"value": "*手机"
}
}
},
"_source": "product_name"
}'
查看返回信息：可以看到，只要是以手机结尾的字段数据，都被查了出来；
{
"hits" : {
"hits" : [
{
"_source" : {
"product_name" : "商务旗舰智能手机"
}
},
{
"_source" : {
"product_name" : "轻薄拍照智能手机"
}
},
{
"_source" : {
"product_name" : "商务轻薄旗舰手机"
}
},
{
"_source" : {
"product_name" : "轻薄旗舰拍照手机"
}
},
{
"_source" : {
"product_name" : "高端旗舰智能手机"
}
},
{
"_source" : {
"product_name" : "性价比拍照手机"
}
},
{
"_source" : {
"product_name" : "学生优惠智能手机"
}
},
{
"_source" : {
"product_name" : "性价比游戏手机"
}
},
{
"_source" : {
"product_name" : "长续航拍照手机"
}
},
{
"_source" : {
"product_name" : "旗舰拍照智能手机"
}
}
]
}
}
· fuzzy容错查询text与keyword类型
| fuzzy容错查询 | 含义说明 |
|---|---|
| 查询要求 | 查询keyword类型时（查询test类型时无所谓），查询词，必须与字段值的字符数相同； |
| fuzziness | 表示允许查询词汇总的错误字符数；“AUTO”表示自动识别； |
# 最常用场景 - 文本字段的拼写纠错
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source' -H 'Content-Type: application/json' -d'
{
"query": {
"fuzzy": {
"product_name": {
"value": "高端旗舰智能鸡",
"fuzziness": "AUTO"
}
}
},
"_source": "product_name"
}'
查看返回结构
{
"hits" : {
"hits" : [
{
"_source" : {
"product_name" : "高端旗舰智能手机"
}
}
]
}
}
· IK分词器
1，查看当前字段分词器的分词情况
分词英文
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/match_index01/_analyze?pretty" -H 'Content-Type: application/json' -d'
{
"field": "name",
"text": "hello,world"
}'
# 返回结果
......
"token" : "hello",
......
"token" : "world",
......
分词中文
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/match_index01/_analyze?pretty" -H 'Content-Type: application/json' -d'
{
"field": "name",
"text": "你好，世界"
}'
# 返回结果
......
"token" : "你",
......
"token" : "好",
......
"token" : "世",
......
"token" : "界",
......
2，指定分词器测试分词
测试分词英文
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/_analyze?pretty" -H 'Content-Type: application/json' -d'
{
"analyzer": "standard",
"text": "hello,world"
}'
# 返回结果
......
"token" : "hello",
......
"token" : "world",
......
测试分词中文
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/_analyze?pretty" -H 'Content-Type: application/json' -d'
{
"analyzer": "standard",
"text": "你好，世界"
}'
# 返回结果
......
"token" : "你",
......
"token" : "好",
......
"token" : "世",
......
"token" : "界",
......
3，下载IK分词器安装包
| 名词 | 解释说明 |
|---|---|
| IK分词器 | IK Analyzer是一个开源的，基于java语言开发的轻量级的中文分词工具包 |
IK分词器下载网址：
# 需要科学上网
https://github.com/infinilabs/analysis-ik
# 向下滑动，找到下载地址
https://release.infinilabs.com/
# 选择【analysis-ik】进入
# 选择【stable】进入
# 选择与ES版本相同的版本号进行下载
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET https://10.0.0.101:9200
{
"name" : "es01",
"cluster_name" : "bakwite-es-cluster",
"cluster_uuid" : "QB3VinL3SWm_d76B9qhCRA",
"version" : {
"number" : "7.17.29", # 我们的版本是7.17.29
"build_flavor" : "default",
"build_type" : "tar",
"build_hash" : "580aff1a0064ce4c93293aaab6fcc55e22c10d1c",
"build_date" : "2025-06-19T01:37:57.847711500Z",
"build_snapshot" : false,
"lucene_version" : "8.11.3",
"minimum_wire_compatibility_version" : "6.8.0",
"minimum_index_compatibility_version" : "6.0.0-beta1"
},
"tagline" : "You Know, for Search"
}
# 下载到本地
[root@es01 ~ ]# wget https://release.infinilabs.com/analysis-ik/stable/elasticsearch-analysis-ik-7.17.29.zip
# 查看
[root@es01 ~ ]# ls -l
......
-rw-r--r-- 1 root root 4504852 Nov 25 08:54 elasticsearch-analysis-ik-7.17.29.zip
4，安装IK分词器
# 创建插件目录
[root@es01 ~ ]# mkdir /tools/es/elasticsearch-7.17.29/plugins/ik
# 将ik分词器解压到插件目录下
[root@es01 ~ ]# unzip elasticsearch-analysis-ik-7.17.29.zip -d /tools/es/elasticsearch-7.17.29/plugins/ik/
# 修改ik分词器插件目录权限
[root@es01 ~ ]# chown -R elasticsearch.elasticsearch /tools/es/elasticsearch-7.17.29/plugins/ik/
# 将分词器分发给其他集群节点
[root@es01 ~ ]# scp -r /tools/es/elasticsearch-7.17.29/plugins/ik 10.0.0.102:/tools/es/elasticsearch-7.17.29/plugins/
[root@es01 ~ ]# scp -r /tools/es/elasticsearch-7.17.29/plugins/ik 10.0.0.103:/tools/es/elasticsearch-7.17.29/plugins/
# 重启es
[root@es01 ~ ]# systemctl restart elasticsearch.service
[root@es02 ~ ]# systemctl restart elasticsearch.service
[root@es03 ~ ]# systemctl restart elasticsearch.service
5，测试ik分词器
| ik分词器 | 解释说明 |
|---|---|
| ik_max_word | 细颗粒度拆分 |
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/_analyze?pretty" -H 'Content-Type: application/json' -d'
{
"analyzer": "ik_max_word",
"text": "去天安门溜达"
}'
查看分词结果:
- 已经成功按照汉语的词语进行分词了；
# 查看分词结果
......
"token" : "去",
......
"token" : "天安门",
......
"token" : "天安",
......
"token" : "门",
......
"token" : "溜达",
......
| ik分词器 | 解释说明 |
|---|---|
| ik_smart | 粗颗粒度查询 |
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/_analyze?pretty" -H 'Content-Type: application/json' -d'
{
"analyzer": "ik_smart",
"text": "去天安门溜达"
}'
查看分词结果
......
"token" : "去",
......
"token" : "天安门",
......
"token" : "溜达",
......
6，ik分词器自定义词典
ik分词器分词原理：
- 就是在../ik/config/目录下创建【*.dic】文件；
- 在文件中写入固定的汉语分词；
# 查看分词文件
[root@es01 ~ ]# ls -l /tools/es/elasticsearch-7.17.29/plugins/ik/config/
total 8260
-rw-r--r-- 1 elasticsearch elasticsearch 5225922 Jul 27 16:45 extra_main.dic
-rw-r--r-- 1 elasticsearch elasticsearch 63188 Jul 27 16:45 extra_single_word.dic
-rw-r--r-- 1 elasticsearch elasticsearch 63188 Jul 27 16:45 extra_single_word_full.dic
-rw-r--r-- 1 elasticsearch elasticsearch 10855 Jul 27 16:45 extra_single_word_low_freq.dic
-rw-r--r-- 1 elasticsearch elasticsearch 156 Jul 27 16:45 extra_stopword.dic
-rw-r--r-- 1 elasticsearch elasticsearch 625 Jul 27 16:45 IKAnalyzer.cfg.xml
-rw-r--r-- 1 elasticsearch elasticsearch 3058510 Jul 27 16:45 main.dic
-rw-r--r-- 1 elasticsearch elasticsearch 123 Jul 27 16:45 preposition.dic
-rw-r--r-- 1 elasticsearch elasticsearch 1824 Jul 27 16:45 quantifier.dic
-rw-r--r-- 1 elasticsearch elasticsearch 164 Jul 27 16:45 stopword.dic
-rw-r--r-- 1 elasticsearch elasticsearch 192 Jul 27 16:45 suffix.dic
-rw-r--r-- 1 elasticsearch elasticsearch 752 Jul 27 16:45 surname.dic
# 查看文件内容
[root@es01 ~ ]# tail -10 /tools/es/elasticsearch-7.17.29/plugins/ik/config/extra_main.dic
做着
做主
做庄
做莊
做足
做作
做作业
做做
做咗手腳
自定义词典
[root@es01 ~ ]# vim /tools/es/elasticsearch-7.17.29/plugins/ik/config/bakwite.dic
吭哧瘪肚
比比划划
麻麻赖赖
五迷三道
# 创还能玩文件，记得授权
[root@es01 ~ ]# chown -R elasticsearch.elasticsearch /tools/es/elasticsearch-7.17.29/plugins/ik/config/bakwite.dic
# 其他集群节点传送
[root@es01 ~ ]# scp /tools/es/elasticsearch-7.17.29/plugins/ik/config/bakwite.dic 10.0.0.212:/tools/es/elasticsearch-7.17.29/plugins/ik/config/
[root@es01 ~ ]# scp /tools/es/elasticsearch-7.17.29/plugins/ik/config/bakwite.dic 10.0.0.213:/tools/es/elasticsearch-7.17.29/plugins/ik/config/
编辑分词器配置文件,加载自定义分词
[root@es01 ~ ]# vim /tools/es/elasticsearch-7.17.29/plugins/ik/config/IKAnalyzer.cfg.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE properties SYSTEM "http://java.sun.com/dtd/properties.dtd">
<properties>
<comment>IK Analyzer 扩展配置</comment>
<!--用户可以在这里配置自己的扩展字典 -->
<entry key="ext_dict">bakwite.dic</entry>
<!--用户可以在这里配置自己的扩展停止词字典-->
<entry key="ext_stopwords"></entry>
<!--用户可以在这里配置远程扩展字典 -->
<!-- <entry key="remote_ext_dict">words_location</entry> -->
<!--用户可以在这里配置远程扩展停止词字典-->
<!-- <entry key="remote_ext_stopwords">words_location</entry> -->
</properties>
# 分发给其他节点
[root@es01 ~ ]# scp /tools/es/elasticsearch-7.17.29/plugins/ik/config/IKAnalyzer.cfg.xml 10.0.0.212:/tools/es/elasticsearch-7.17.29/plugins/ik/config/
[root@es01 ~ ]# scp /tools/es/elasticsearch-7.17.29/plugins/ik/config/IKAnalyzer.cfg.xml 10.0.0.213:/tools/es/elasticsearch-7.17.29/plugins/ik/config/
重启es集群
[root@es01 ~ ]# systemctl restart elasticsearch.service
[root@es02 ~ ]# systemctl restart elasticsearch.service
[root@es03 ~ ]# systemctl restart elasticsearch.service
测试自定义词典是否生效
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/_analyze?pretty" -H 'Content-Type: application/json' -d'
{
"analyzer": "ik_smart",
"text": "这人吭哧瘪肚的，遇到点事嗨比比划划、妆画的麻麻赖赖的，说话吭哧瘪肚的，可咋整"
}'
# 查看返回结果
......
"token" : "这人",
......
"token" : "吭哧瘪肚",
......
"token" : "的",
......
"token" : "遇",
......
"token" : "到点",
......
"token" : "事",
......
"token" : "嗨",
......
"token" : "比比划划",
......
"token" : "妆",
......
"token" : "画",
......
"token" : "的",
......
"token" : "麻麻赖赖",
......
"token" : "的",
......
"token" : "说话",
......
"token" : "吭哧瘪肚",
......
"token" : "的",
......
"token" : "可",
......
"token" : "咋",
......
"token" : "整",
......
7，设置分词器
集群索引默认分词器设置
[root@es01 ~ ]# vim /tools/es/elasticsearch-7.17.29/config/elasticsearch.yml
......
# 存储时分词器（索引分词）
index.analysis.analyzer.default.type: ik_smart
# 查询时分词器（查询分词）
index.analysis.analyzer.default_search.type: ik_smart
创建索引时的分词器设置
# mappings设置单个字段的分词器
{
"mappings": {
"properties": {
"comment": {
"type": "text",
"fields": {
"keyword": {
"type": "keyword",
"ignore_above": 256
}
},
"analyzer": "ik_smart",
"search_analyzer": "ik_smart"
}
}
}
4，查询字段是否存在
· 测试查看不存在的字段
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/bakwite_index01/_search?pretty' -H 'Content-Type: application/json' -d'
{
"query": {
"exists": {
"field": "abcdefg"
}
}
}'
返回结果
{
"took" : 2,
"timed_out" : false,
"_shards" : {
"total" : 3,
"successful" : 3,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 0,
"relation" : "eq"
},
"max_score" : null,
"hits" : [ ]
}
}
· 测试查看存在的字段
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/bakwite_index01/_search?pretty' -H 'Content-Type: application/json' -d'
{
"query": {
"exists": {
"field": "tags"
}
},
"size": 1
}'
返回结果
{
"took" : 3,
"timed_out" : false,
"_shards" : {
"total" : 3,
"successful" : 3,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 20,
"relation" : "eq"
},
"max_score" : 1.0,
"hits" : [
{
"_index" : "bakwite_index01",
"_type" : "_doc",
"_id" : "5",
"_score" : 1.0,
"_source" : {
"product_name" : "商务旗舰智能手机",
"inventory" : 89,
"price" : 12999.0,
"weight" : 22,
"tags" : [
"2025年新款",
"商务旗舰",
"安全加密",
"高端商务",
"拍照效果优秀"
],
"merchant_ip" : "123.244.136.109",
"business_address" : [
116.412,
39.898
],
"delivery_area" : {
"type" : "polygon",
"coordinates" : [
[
[
116.402,
39.908
],
[
116.422,
39.908
],
[
116.422,
39.888
],
[
116.402,
39.888
],
[
116.402,
39.908
]
]
]
},
"product_upload_time" : "2025-03-13 16:45:00",
"app_version" : "3.5.0",
"is_up" : true,
"specifications" : {
"color" : "商务灰",
"size" : "6.8英寸",
"brand" : "三星",
"material" : "金属"
},
"comment" : "商务人士首选，安全性能极佳"
}
}
]
}
}
5，精准查询
· term精准匹配keyword类型
1，精准匹配案例
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source' -H 'Content-Type: application/json' -d'
{
"query": {
"term": {
"product_name": "高端旗舰智能手机"
}
},
"_source": "product_name"
}'
# 也可以写成：
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source' -H 'Content-Type: application/json' -d'
{
"query": {
"term": {
"product_name": {
"value": "高端旗舰智能手机"
}
}
},
"_source": "product_name"
}'
查看显示结果
{
"hits" : {
"hits" : [
{
"_source" : {
"product_name" : "高端旗舰智能手机"
}
}
]
}
}
2，精准匹配失败案例
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source' -H 'Content-Type: application/json' -d'
{
"query": {
"term": {
"product_name": "高端旗舰智能手"
}
},
"_source": "product_name"
}'
返回结果，精准匹配keyword，错一个字都不行哦~
{ }
· term匹配IP类型
1，匹配精准IP地址
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source' -H 'Content-Type: application/json' -d'
{
"query": {
"term": {
"merchant_ip": "123.244.135.108"
}
},
"_source": "merchant_ip"
}'
查看返回值
{
"hits" : {
"hits" : [
{
"_source" : {
"merchant_ip" : "123.244.135.108"
}
}
]
}
}
2，精准匹配网段
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source' -H 'Content-Type: application/json' -d'
{
"query": {
"term": {
"merchant_ip": "123.244.135.0/24"
}
},
"_source": "merchant_ip"
}'
查看返回结果
{
"hits" : {
"hits" : [
{
"_source" : {
"merchant_ip" : "123.244.135.108"
}
}
]
}
}
· term匹配布尔类型
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source' -H 'Content-Type: application/json' -d'
{
"query": {
"term": {
"is_up": true
}
},
"_source": "is_up"
}'
查看返回结果
{
"hits" : {
"hits" : [
{
"_source" : {
"is_up" : true
}
},
{
"_source" : {
"is_up" : true
}
},
{
"_source" : {
"is_up" : true
}
},
{
"_source" : {
"is_up" : true
}
},
{
"_source" : {
"is_up" : true
}
},
{
"_source" : {
"is_up" : true
}
},
{
"_source" : {
"is_up" : true
}
},
{
"_source" : {
"is_up" : true
}
},
{
"_source" : {
"is_up" : true
}
},
{
"_source" : {
"is_up" : true
}
}
]
}
}
· terms精准匹配多个值
精准匹配【手机】或者【智能】
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source' -H 'Content-Type: application/json' -d'
{
"query": {
"terms": {
"product_name": ["高端旗舰智能手机", "轻薄拍照智能手机"]
}
},
"_source": "product_name"
}'
查看返回结果
{
"hits" : {
"hits" : [
{
"_source" : {
"product_name" : "轻薄拍照智能手机"
}
},
{
"_source" : {
"product_name" : "高端旗舰智能手机"
}
}
]
}
}
6，range范围查询
| 字段 | 含义说明 |
|---|---|
| gte | 大于等于 |
| lte | 小于等于 |
| gt | 大于 |
| lt | 小于 |
· 数值范围查询
# 查询价格在1000到5000之间的数据文档
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source" -H 'Content-Type: application/json' -d'
{
"query": {
"range": {
"price": {
"gte": 1000.0,
"lte": 5000.0
}
}
},
"_source": "price"
}'
查看返回结果
{
"hits" : {
"hits" : [
{
"_source" : {
"price" : 4599.0
}
},
{
"_source" : {
"price" : 2999.0
}
},
{
"_source" : {
"price" : 1999.0
}
},
{
"_source" : {
"price" : 3299.0
}
},
{
"_source" : {
"price" : 4299.0
}
},
{
"_source" : {
"price" : 3899.0
}
},
{
"_source" : {
"price" : 2599.0
}
}
]
}
}
· 时间范围查询
1，日期区间范围查询
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source" -H 'Content-Type: application/json' -d'
{
"query": {
"range": {
"product_upload_time": {
"gte": "2025-01-01",
"lte": "2025-05-31",
"format": "yyyy-MM-dd"
}
}
},
"_source": "product_upload_time"
}'
查看返回结果
{
"hits" : {
"hits" : [
{
"_source" : {
"product_upload_time" : "2025-03-13 16:45:00"
}
},
{
"_source" : {
"product_upload_time" : "2025-03-11 09:30:00"
}
},
{
"_source" : {
"product_upload_time" : "2025-03-05 10:15:00"
}
},
{
"_source" : {
"product_upload_time" : "2025-01-22 19:18:00"
}
},
{
"_source" : {
"product_upload_time" : "2025-02-27 17:15:00"
}
},
{
"_source" : {
"product_upload_time" : "2025-03-15 10:30:00"
}
},
{
"_source" : {
"product_upload_time" : "2025-03-14 14:20:00"
}
},
{
"_source" : {
"product_upload_time" : "2025-03-08 17:30:00"
}
},
{
"_source" : {
"product_upload_time" : "2025-03-06 14:50:00"
}
},
{
"_source" : {
"product_upload_time" : "2025-03-04 16:40:00"
}
}
]
}
}
2，相对时间范围查询
| 字段说明 | 含义说明 |
|---|---|
| now-3000d | 表示从今天向前推进3000天 |
| /d | 表示单位是天 |
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source" -H 'Content-Type: application/json' -d'
{
"query": {
"range": {
"product_upload_time": {
"gte": "now-300d/d"
}
}
},
"_source": "product_upload_time"
}'
查看返回结果
{
"hits" : {
"hits" : [
{
"_source" : {
"product_upload_time" : "2025-03-13 16:45:00"
}
},
{
"_source" : {
"product_upload_time" : "2025-03-11 09:30:00"
}
},
{
"_source" : {
"product_upload_time" : "2025-03-05 10:15:00"
}
},
{
"_source" : {
"product_upload_time" : "2025-02-27 17:15:00"
}
},
{
"_source" : {
"product_upload_time" : "2025-03-15 10:30:00"
}
},
{
"_source" : {
"product_upload_time" : "2025-03-14 14:20:00"
}
},
{
"_source" : {
"product_upload_time" : "2025-03-08 17:30:00"
}
},
{
"_source" : {
"product_upload_time" : "2025-03-06 14:50:00"
}
},
{
"_source" : {
"product_upload_time" : "2025-03-04 16:40:00"
}
},
{
"_source" : {
"product_upload_time" : "2025-03-03 11:55:00"
}
}
]
}
}
· ip范围查询
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source" -H 'Content-Type: application/json' -d'
{
"query": {
"range": {
"merchant_ip": {
"gte": "123.244.0.1",
"lte": "123.244.255.255"
}
}
},
"_source": "merchant_ip"
}'
查看返回结果
{
"hits" : {
"hits" : [
{
"_source" : {
"merchant_ip" : "123.244.136.109"
}
},
{
"_source" : {
"merchant_ip" : "123.244.138.111"
}
},
{
"_source" : {
"merchant_ip" : "123.244.144.117"
}
},
{
"_source" : {
"merchant_ip" : "123.244.134.106"
}
},
{
"_source" : {
"merchant_ip" : "123.244.150.123"
}
},
{
"_source" : {
"merchant_ip" : "123.244.134.107"
}
},
{
"_source" : {
"merchant_ip" : "123.244.135.108"
}
},
{
"_source" : {
"merchant_ip" : "123.244.141.114"
}
},
{
"_source" : {
"merchant_ip" : "123.244.143.116"
}
},
{
"_source" : {
"merchant_ip" : "123.244.145.118"
}
}
]
}
}
· 版本范围查询
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source" -H 'Content-Type: application/json' -d'
{
"query": {
"range": {
"app_version": {
"gte": "2.1.0",
"lte": "3.0.0"
}
}
},
"_source": "app_version"
}'
查看返回结构
{
"hits" : {
"hits" : [
{
"_source" : {
"app_version" : "2.8.3"
}
},
{
"_source" : {
"app_version" : "2.9.1"
}
},
{
"_source" : {
"app_version" : "2.7.1"
}
},
{
"_source" : {
"app_version" : "2.9.5"
}
},
{
"_source" : {
"app_version" : "2.8.0"
}
}
]
}
}
7，坐标位置查询
· 查询geo_point坐标范围内的坐标
1，查询坐标范围
查询一个坐标为中心，10公里范围内的坐标数据
| 字段 | 含义说明 |
|---|---|
| geo_distance | 表示地理坐标查询 |
| distance | 表示查询的范围半径； |
| lat | 表示纬度 |
| lon | 表示经度 |
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source" -H 'Content-Type: application/json' -d'
{
"query": {
"geo_distance": {
"distance": "10km",
"business_address": {
"lat": 39.904000,
"lon": 116.408000
}
}
},
"_source": "business_address"
}'
查看返回信息
{
"hits" : {
"hits" : [
{
"_source" : {
"business_address" : [
116.412,
39.898
]
}
},
{
"_source" : {
"business_address" : [
116.42,
39.9
]
}
},
{
"_source" : {
"business_address" : [
116.408,
39.896
]
}
},
{
"_source" : {
"business_address" : [
116.41,
39.9
]
}
},
{
"_source" : {
"business_address" : [
116.408,
39.904
]
}
},
{
"_source" : {
"business_address" : [
116.416,
39.902
]
}
},
{
"_source" : {
"business_address" : [
116.414,
39.904
]
}
},
{
"_source" : {
"business_address" : [
116.422,
39.898
]
}
},
{
"_source" : {
"business_address" : [
116.416,
39.906
]
}
},
{
"_source" : {
"business_address" : [
116.412,
39.904
]
}
}
]
}
}
2，查询坐标边界范围内
查询两个坐标点之内的坐标数据
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source" -H 'Content-Type: application/json' -d'
{
"query": {
"geo_bounding_box": {
"business_address": {
"top_left": {
"lat": 39.945,
"lon": 116.354
},
"bottom_right": {
"lat": 39.855,
"lon": 116.466
}
}
}
},
"_source": "business_address"
}'
查看返回结果
{
"hits" : {
"hits" : [
{
"_source" : {
"business_address" : [
116.412,
39.898
]
}
},
{
"_source" : {
"business_address" : [
116.42,
39.9
]
}
},
{
"_source" : {
"business_address" : [
116.408,
39.896
]
}
},
{
"_source" : {
"business_address" : [
116.41,
39.9
]
}
},
{
"_source" : {
"business_address" : [
116.408,
39.904
]
}
},
{
"_source" : {
"business_address" : [
116.416,
39.902
]
}
},
{
"_source" : {
"business_address" : [
116.414,
39.904
]
}
},
{
"_source" : {
"business_address" : [
116.422,
39.898
]
}
},
{
"_source" : {
"business_address" : [
116.416,
39.906
]
}
},
{
"_source" : {
"business_address" : [
116.412,
39.904
]
}
}
]
}
}
· 查询geo_shape坐标区域的关系
关系：相交、包含、不包含
| 字段 | 含义说明 |
|---|---|
| "relation": "intersects" | 查询的类型；intersects表示交集，within表示包含在内，disjoint表示不包含在内没有任何交集； |
查询包含查询坐标点的区域坐标数据
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source" -H 'Content-Type: application/json' -d'
{
"query": {
"geo_shape": {
"delivery_area": {
"shape": {
"type": "point",
"coordinates": [116.41, 39.9]
},
"relation": "intersects"
}
}
},
"_source": "delivery_area"
}'
查看显示结果
{
"hits" : {
"hits" : [
{
"_source" : {
"delivery_area" : {
"coordinates" : [[
[116.402,39.908],
[116.422,39.908],
[116.422,39.888],
[116.402,39.888],]
]]
"type" : "polygon"
}
}
},
{
"_source" : {
"delivery_area" : {
"coordinates" : [
[[116.41,39.91],
[116.43,39.91],
[116.43,39.89],
[116.41,39.89],
[116.41,39.91]]],
"type" : "polygon"
}
}
},
......
8，布尔(多条件组合)查询
· must必须满足的多条件
案例：查询品牌是"小米"，且价格必须大于1000的产品；
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source" -H 'Content-Type: application/json' -d'
{
"query": {
"bool": {
"must": [
{
"match_phrase": {
"specifications.brand": "小米"
}
},
{
"range": {
"price": {
"gte": 1000.0
}
}
}
]
}
},
"_source": ["specifications.brand","price"]
}'
查看返回结果
{
"hits" : {
"hits" : [
{
"_source" : {
"price" : 2599.0,
"specifications" : {
"brand" : "小米"
}
}
},
{
"_source" : {
"price" : 2999.0,
"specifications" : {
"brand" : "小米"
}
}
},
{
"_source" : {
"price" : 1999.0,
"specifications" : {
"brand" : "小米"
}
}
}
]
}
}
· must_not必须不包含的条件
查询案例：
- 条件一：价格必须大于"3000元"；
- 条件二：品牌不许不能是"华为"；
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source" -H 'Content-Type: application/json' -d'
{
"query": {
"bool": {
"must": [
{
"range": {
"price": {
"gte": 3000.0
}
}
}
],
"must_not": [
{
"term": {
"specifications.brand": "华为"
}
}
]
}
},
"_source": ["specifications.brand","price"]
}'
查看返回结果
......
"price" : 12999.0,
"specifications" : {
......
"price" : 4599.0,
"specifications" : {
"brand" : "OPPO"
......
"price" : 6899.0,
"specifications" : {
"brand" : "OPPO"
......
"price" : 3299.0,
"specifications" : {
"brand" : "realme"
......
"price" : 4299.0,
"specifications" : {
"brand" : "vivo"
......
"price" : 6899.0,
"specifications" : {
"brand" : "OPPO"
......
"price" : 5999.0,
"specifications" : {
"brand" : "一加"
......
"price" : 3899.0,
"specifications" : {
"brand" : "vivo"
......
"price" : 10999.0,
"specifications" : {
"brand" : "一加"
......
"price" : 5499.0,
"specifications" : {
"brand" : "一加"
......
· should可能满足的多条件
1，组合使用【控制结果排序】
查询案例：
- 条件一：【价格】必须大于"3000元"；
- 条件二：【品牌】不许不能是"华为"；
- 条件三：用户上传使用的【app版本】尽可能的大于"3.1.0"；
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source" -H 'Content-Type: application/json' -d'
{
"query": {
"bool": {
"must": [
{
"range": {
"price": {
"gte": 3000.0
}
}
}
],
"must_not": [
{
"term": {
"specifications.brand": "华为"
}
}
],
"should": [
{
"range": {
"app_version": {
"gte": "3.1.0"
}
}
}
]
}
},
"_source": ["specifications.brand","price","app_version"]
}'
查看返回结果：你会发现，版本高于3.1.0的数据，会排在上面；
......
"app_version" : "3.5.0",
"price" : 12999.0,
"specifications" : {
"brand" : "三星"
......
"app_version" : "3.2.5",
"price" : 6899.0,
"specifications" : {
"brand" : "OPPO"
......
"app_version" : "3.2.1",
"price" : 3299.0,
"specifications" : {
"brand" : "realme"
......
"app_version" : "3.2.5",
"price" : 6899.0,
"specifications" : {
"brand" : "OPPO"
......
"app_version" : "3.1.5",
"price" : 5999.0,
"specifications" : {
"brand" : "一加"
......
"app_version" : "3.6.0",
"price" : 10999.0,
"specifications" : {
"brand" : "一加"
......
"app_version" : "3.1.8",
"price" : 5499.0,
"specifications" : {
"brand" : "一加"
......
"app_version" : "3.8.0",
"price" : 11999.0,
"specifications" : {
"brand" : "三星"
......
"app_version" : "2.8.3",
"price" : 4599.0,
"specifications" : {
"brand" : "OPPO"
......
"app_version" : "2.9.5",
"price" : 4299.0,
"specifications" : {
"brand" : "vivo"
......
2，组合使用设置权重影响排序
| 字段 | 含义说明 |
|---|---|
| boost | 设置权重：【0-2.5】，值越大，排名越靠前 |
查询案例：
- 条件一：【价格】必须大于"3000元"；
- 条件二：【品牌】不许不能是"华为"；
- 要求：【OPPO】品牌，排名在最上面；
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source" -H 'Content-Type: application/json' -d'
{
"query": {
"bool": {
"must": [
{
"range": {
"price": {
"gte": 3000.0
}
}
}
],
"must_not": [
{
"term": {
"specifications.brand": "华为"
}
}
],
"should": [
{
"term": {
"specifications.brand": {
"value": "OPPO",
"boost": 2.5
}
}
}
]
}
},
"_source": ["specifications.brand","price"]
}'
查看返回结果：你会发现，OPPO品牌的查询结果排在最上面；
......
"price" : 6899.0,
"specifications" : {
"brand" : "OPPO"
......
"price" : 6899.0,
"specifications" : {
"brand" : "OPPO"
......
"price" : 4599.0,
"specifications" : {
"brand" : "OPPO"
......
"price" : 12999.0,
"specifications" : {
"brand" : "三星"
......
"price" : 3299.0,
"specifications" : {
"brand" : "realme"
......
"price" : 4299.0,
"specifications" : {
"brand" : "vivo"
......
"price" : 5999.0,
"specifications" : {
"brand" : "一加"
......
"price" : 3899.0,
"specifications" : {
"brand" : "vivo"
......
"price" : 10999.0,
"specifications" : {
"brand" : "一加"
......
"price" : 5499.0,
"specifications" : {
"brand" : "一加"
......
3，单独使用【多选题】
| 字段 | 含义说明 |
|---|---|
| "minimum_should_match": 2 | 必须同时满足选项中的2个；【也可以写百分比，"30%": 表示必须满足30%的条件；】 |
查询案例：
- 三个条件必须满足两个的情况下；
- 例如：
- 要求【tags】标签中，必须包含：【超长续航、专业摄影、商务办公】；这三项中的两项；
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source" -H 'Content-Type: application/json' -d'
{
"query": {
"bool": {
"should": [
{ "term": {"tags": "超长续航"} },
{ "term": {"tags": "专业摄影"} },
{ "term": {"tags": "商务办公"} }
],
"minimum_should_match": 2
}
},
"_source": "tags"
}'
查看返回结果
{
"hits" : {
"hits" : [
{
"_source" : {
"tags" : [
"超长续航",
"商务办公",
"双卡双待",
"大电池",
"性价比高"
]
}
}
]
}
}
· filter从查询结果中再次过滤
查询案例：
- 条件一：【价格】必须大于"3000元"；
- 条件二：【品牌】不许不能是"华为"；
- 从查询结果中，过滤出，【备注】中有“游戏”二字短语的数据；
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=hits.hits._source" -H 'Content-Type: application/json' -d'
{
"query": {
"bool": {
"must": [
{
"range": {
"price": {
"gte": 3000.0
}
}
}
],
"must_not": [
{
"term": {
"specifications.brand": "华为"
}
}
],
"filter": {
"match_phrase": {
"comment": "游戏"
}
}
}
},
"_source": ["specifications.brand","price","comment"]
}'
查看返回结果
......
"price" : 3299.0,
"comment" : "游戏性能优秀，性价比很高",
"specifications" : {
"brand" : "realme"
......
"price" : 5999.0,
"comment" : "游戏体验极佳，拍照效果也很出色",
"specifications" : {
"brand" : "一加"
......
"price" : 5499.0,
"comment" : "游戏和拍照都很出色，全能选手",
"specifications" : {
"brand" : "一加"
......
9，聚合查询（数据二次处理）
· 数值类型聚合
1，计算字段平均数avg
| 字段 | 含义说明 |
|---|---|
| aggs | 表示声明聚合查询参数 |
| price_avg | 自定义的聚合查询的key名称 |
| avg | 表示要计算【平均值】 |
| field | 表示要聚合处理的字段是哪个 |
| "size": 0 | 表示源数据不要显示（显示零个）； |
聚合案例：计算商品价格的平均值
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty" -H 'Content-Type: application/json' -d'
{
"aggs": {
"price_avg": {
"avg": {
"field": "price"
}
}
},
"size": 0
}'
查看返回结果
{
"took" : 3,
"timed_out" : false,
"_shards" : {
"total" : 3,
"successful" : 3,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 20,
"relation" : "eq"
},
"max_score" : null,
"hits" : [ ]
},
"aggregations" : {
"price_avg" : {
"value" : 6674.0
}
}
}
2，计算字段最大和最小值max/min
聚合案例：计算商品价格的最大值和最小值
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=aggregations" -H 'Content-Type: application/json' -d'
{
"aggs": {
"price_max": {
"max": {
"field": "price"
}
},
"price_min": {
"min": {
"field": "price"
}
}
},
"size": 0
}'
查看显示结果
{
"aggregations" : {
"price_min" : {
"value" : 799.0
},
"price_max" : {
"value" : 15999.0
}
}
}
3，字段求和sum
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=aggregations" -H 'Content-Type: application/json' -d'
{
"aggs": {
"price_sum": {
"sum": {
"field": "price"
}
}
},
"size": 0
}'
查看显示结果
{
"aggregations" : {
"price_sum" : {
"value" : 133480.0
}
}
}
4，统计字段数据行数value_count
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=aggregations" -H 'Content-Type: application/json' -d'
{
"aggs": {
"price_count": {
"value_count": {
"field": "price"
}
}
},
"size": 0
}'
查看显示结果
{
"aggregations" : {
"price_count" : {
"value" : 20
}
}
}
5，统计所有stats
最大值、最小值、平均值、求和、行数
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=aggregations" -H 'Content-Type: application/json' -d'
{
"aggs": {
"price_stats": {
"stats": {
"field": "price"
}
}
},
"size": 0
}'
查看显示结果
{
"aggregations" : {
"price_stats" : {
"count" : 20,
"min" : 799.0,
"max" : 15999.0,
"avg" : 6674.0,
"sum" : 133480.0
}
}
}
· 桶(数值区间分组)聚合文档数量range
| 字段 | 含义说明 |
|---|---|
| price_ranges | 自定义的聚合名称，随便洗 |
| range | 表示要区间分组的桶聚合处理技术局 |
| field | 表示要聚合聚酸的字段 |
| key | 表示自定义的分组名；随便写 |
| from..to | 区间值设置，从...到... 大于等于...小于 |
查询需求，分别统计：
- 价格小于1000元的文档数量；
- 价格在大于等于1000元切小于3000元的文档数量；
- 价格在大于等于3000元切小于6000元的文档数量；
- 价格大于6000元的文档数量；
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=aggregations" -H 'Content-Type: application/json' -d'
{
"aggs": {
"price_ranges": {
"range": {
"field": "price",
"ranges": [
{"key": "小于1k", "to": 1000},
{"key": "1k到3千","from": 1000, "to": 3000},
{"key": "3k到6k","from": 3000, "to": 6000},
{"key": "6k以上","from": 6000}
]
}
}
}
}'
查看返回结果
{
"aggregations" : {
"price_ranges" : {
"buckets" : [
{
"key" : "小于1k",
"to" : 1000.0,
"doc_count" : 1
},
{
"key" : "1k到3千",
"from" : 1000.0,
"to" : 3000.0,
"doc_count" : 3
},
{
"key" : "3k到6k",
"from" : 3000.0,
"to" : 6000.0,
"doc_count" : 7
},
{
"key" : "6k以上",
"from" : 6000.0,
"doc_count" : 9
}
]
}
}
}
· 精准查询聚合文档数量terms
需求：统计不同商品颜色的文档数量（以颜色为单位去计算）
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=aggregations" -H 'Content-Type: application/json' -d'
{
"aggs": {
"agg_color_docs": {
"terms": {
"field": "specifications.color"
}
}
},
"size": 0
}'
查询结果
{
"aggregations" : {
"agg_color_docs" : {
"doc_count_error_upper_bound" : 0,
"sum_other_doc_count" : 9,
"buckets" : [
{
"key" : "晨曦金",
"doc_count" : 2
},
{
"key" : "商务灰",
"doc_count" : 1
},
{
"key" : "学院蓝",
"doc_count" : 1
},
{
"key" : "尊贵金",
"doc_count" : 1
},
{
"key" : "幻影紫",
"doc_count" : 1
},
{
"key" : "摄影黑",
"doc_count" : 1
},
{
"key" : "星空黑",
"doc_count" : 1
},
{
"key" : "月光银",
"doc_count" : 1
},
{
"key" : "极光色",
"doc_count" : 1
},
{
"key" : "森林绿",
"doc_count" : 1
}
]
}
}
}
· 日期直方图聚合文档数量date_histogram
| 一级字段 | 二级字段 | 三级/四级字段 | 含义说明 |
|---|---|---|---|
| aggs | 聚合查询 | ||
| aggs_product_upload_time_docs | 自定义的聚合名称 | ||
| date_histogram | 日期直方图 | ||
| calendar_interval | 以什么时间聚合： minute、hour、day、week、mouth、quarter（季度）、year、 |
||
| "format": "yyyy-MM-dd" | 现实的时间格式： yyyy、yyyy-MM、yyyy年MM月dd日、epoch_millis（时间戳） |
||
| "order": { "_key": "asc" } | 升序排序；dest降序排序 |
聚合需求：根据上传商品的日期，统计每个月上传多少个商品文档；
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=aggregations" -H 'Content-Type: application/json' -d'
{
"aggs": {
"aggs_product_upload_time_docs": {
"date_histogram": {
"field": "product_upload_time",
"calendar_interval": "month",
"format": "yyyy-MM",
"order": { "_key": "asc" }
}
}
},
"size": 0
}'
查看结果
{
"aggregations" : {
"aggs_product_upload_time_docs" : {
"buckets" : [
{
"key_as_string" : "2025-01",
"key" : 1735689600000,
"doc_count" : 1
},
{
"key_as_string" : "2025-02",
"key" : 1738368000000,
"doc_count" : 3
},
{
"key_as_string" : "2025-03",
"key" : 1740787200000,
"doc_count" : 16
}
]
}
}
}
· 地理位置分组聚合
案例说明：将经纬度地址，以范围进行分组；
| 字段 | 含义说明 |
|---|---|
| geohash_grid | 经纬度分组 |
| precision | 【1】：5000公里 * 5000公里 【2】：1250公里 * 625公里 【3】：156公里 * 156公里 【4】：39公里 * 19.5公里 【5】：5公里 * 5公里 【6】：1.2公里 * 0.6公里 【7】：149米 * 149米 【8】：37米 * 19米 |
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=aggregations" -H 'Content-Type: application/json' -d'
{
"aggs": {
"aggs_address": {
"geohash_grid": {
"field": "business_address",
"precision": 5
}
}
},
"size": 0
}'
查看返回结果
{
"aggregations" : {
"aggs_address" : {
"buckets" : [
{
"key" : "wx4fb",
"doc_count" : 7
},
{
"key" : "wx4fc",
"doc_count" : 6
},
{
"key" : "wx4g1",
"doc_count" : 4
},
{
"key" : "wx4g0",
"doc_count" : 2
},
{
"key" : "wx4qp",
"doc_count" : 1
}
]
}
}
}
· 直方图聚合
| 字段 | 含义说明 |
|---|---|
| histogram | 直方图聚合 |
| "interval": 3000 | 表示以3000为分组进行直方图聚合 |
聚合需求：按照价格的档位进行直方图聚合，以3000为间隔统计文档数量；
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=aggregations" -H 'Content-Type: application/json' -d'
{
"aggs": {
"price_histogram": {
"histogram": {
"field": "price",
"interval": 3000
}
}
},
"size": 0
}'
查看显示结果
{
"aggregations" : {
"price_histogram" : {
"buckets" : [
{
"key" : 0.0,
"doc_count" : 4
},
{
"key" : 3000.0,
"doc_count" : 7
},
{
"key" : 6000.0,
"doc_count" : 5
},
{
"key" : 9000.0,
"doc_count" : 2
},
{
"key" : 12000.0,
"doc_count" : 1
},
{
"key" : 15000.0,
"doc_count" : 1
}
]
}
}
}
· 去重聚合统计文档数量
| 字段 | 含义说明 |
|---|---|
| cardinality | 表示要去重统计数量； |
聚合需求：统计商品中一共有多少种产品颜色；
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=aggregations" -H 'Content-Type: application/json' -d'
{
"aggs": {
"unique_colors": {
"cardinality": {
"field": "specifications.color"
}
}
},
"size": 0
}'
查看结果：根据颜色字段去重后，有19个文档
{
"aggregations" : {
"unique_colors" : {
"value" : 19
}
}
}
· 百分比聚合
| 字段 | 含义说明 |
|---|---|
| percentiles | 表示要百分比聚合 |
| "percents": [25, 50, 75, 100] | 百分比的分组：【0-25%】【25%-50%】【50%-75%】【75%-100%】 |
聚合需求：
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=aggregations" -H 'Content-Type: application/json' -d'
{
"aggs": {
"price_percentiles": {
"percentiles": {
"field": "price",
"percents": [25, 50, 75, 100]
}
}
},
"size": 0
}'
查看返回结果
{
"aggregations" : {
"price_percentiles" : {
"values" : {
"25.0" : 3599.0,
"50.0" : 5999.0,
"75.0" : 8999.0,
"100.0" : 15999.0
}
}
}
}
· 嵌套聚合
含义：聚合中进行子聚合
聚合案例：
- 先将价格进行数值区间分组（桶聚合）聚合；
- 再将每个分组聚合进行【最大值】【最小值】【求和】聚合；
# 编辑json文件：fz.json
[root@es01 ~ ]# vim fz.json
{
"aggs": {
"price_team": {
"range": {
"field": "price",
"ranges": [
{"key": "低价商品", "to": 500},
{"key": "普通商品", "from": 500, "to": 1500},
{"key": "高端商品", "from": 1500, "to": 4000},
{"key": "奢侈商品", "from": 4000}
]
},
"aggs": {
"max_price": {
"max": {"field": "price"}
},
"min_price": {
"min": {"field": "price"}
},
"sum_price": {
"sum": {"field": "price"}
}
}
}
},
"size": 0
}
# curl命令执行查询
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET "https://10.0.0.101:9200/bakwite_index01/_search?pretty&filter_path=aggregations" -H 'Content-Type: application/json' --data-binary @./fz.json
查询结果
{
"aggregations" : {
"price_team" : {
"buckets" : [
{
"key" : "低价商品",
"to" : 500.0,
"doc_count" : 0,
"max_price" : {
"value" : null
},
"min_price" : {
"value" : null
},
"sum_price" : {
"value" : 0.0
}
},
{
"key" : "普通商品",
"from" : 500.0,
"to" : 1500.0,
"doc_count" : 1,
"max_price" : {
"value" : 799.0
},
"min_price" : {
"value" : 799.0
},
"sum_price" : {
"value" : 799.0
}
},
{
"key" : "高端商品",
"from" : 1500.0,
"to" : 4000.0,
"doc_count" : 5,
"max_price" : {
"value" : 3899.0
},
"min_price" : {
"value" : 1999.0
},
"sum_price" : {
"value" : 14795.0
}
},
{
"key" : "奢侈商品",
"from" : 4000.0,
"doc_count" : 14,
"max_price" : {
"value" : 15999.0
},
"min_price" : {
"value" : 4299.0
},
"sum_price" : {
"value" : 117886.0
}
}
]
}
}
}
七、JVM堆内存调优
| 系统内存大小 | JVM调整建议(不要超过32GB，否则jvm垃圾回收机制会性能降低) |
|---|---|
| 4GB | 2g |
| 8GB | 4g |
| 16GB | 8g |
| 16GB+ | 永远不要超过32g |
# 为了学习多实例部署，我们调整为：1024m，就是1g；不然另一个集群起不来；
[root@es01 ~ ]# vim /tools/es/elasticsearch-7.17.29/config/jvm.options
[root@es02 ~ ]# vim /tools/es/elasticsearch-7.17.29/config/jvm.options
[root@es03 ~ ]# vim /tools/es/elasticsearch-7.17.29/config/jvm.options
......
-Xms1024m # 启动java虚拟机【JVM】时必须占用的内存大小；
-Xmx1024m # 运行java虚拟机【JVM】时最大使用内存限制；
......
-Xms256m #后面不能有空格，不然服务起不来
-Xmx256m
八、ElasticSearch版本升级
版本升级提示：
- 版本升级，只能单版本升级，不能跨版本升级，否则会有问题；
- 我们目前是【7.x版本】，所以只能升级到【8.x版本】
1，下载新版本
# 我们选择8.18版本
[root@es01 ~ ]# wget https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-8.18.8-linux-x86_64.tar.gz
2，解压到安装目录
# 创建安装目录
[root@es01 ~ ]# mkdir /tools/es8
[root@es01 ~ ]# mkdir -p /tools/es8/{data,log}
# 解压到安装目录
[root@es01 ~ ]# tar xf elasticsearch-8.18.8-linux-x86_64.tar.gz -C /tools/es8
[root@es01 ~ ]# ls -l /tools/
drwxr-xr-x 7 elasticsearch elasticsearch 4096 Dec 3 03:59 es
drwxr-xr-x 3 root root 4096 Dec 3 04:00 es8
3，修改配置文件
[root@es01 ~ ]# vim /tools/es8/elasticsearch-8.18.8/config/elasticsearch.yml
###########[集群配置]#################
# 自定义集群名称(集群中必须一致)
cluster.name: wa-es8-cluster
# 本机节点名称
node.name: es01
# 集群主机ip列表【单点模式需要注释掉】
discovery.seed_hosts: ["10.0.0.101:10300", "10.0.0.102:10300", "10.0.0.103:10300"]
# 参与选举的主机【单点模式需要注释掉】
cluster.initial_master_nodes: ["es01", "es02", "es03"]
# 该主机的角色配置：可以成为什么角色？
# 【master主节点】表示可以成为主节点，管理整个集群
# 【data写数据节点】表示可以成为数据节点；文档数据的增删改查；
# 【ingest】可以可以成为接收、预处理节点；
# 【node.roles: []】：设置为空表示只作为协调节点使用；
node.roles: ["master","data","ingest"]
# 选举前提：必须有2个节点启动才能进行选举（防止脑裂）
# 值的设置：【(集群节点数/2)+1】
# 注意：【es8.x】版本不需要设置，会自动处理；
# discovery.zen.minimum_master_nodes: 2
# 集群模式[默认是集群模式（注释掉），单点模式需要启用]
#discovery.type: single-node
###########[网络配置]#################
# 服务监听ip地址(用户从那张网卡进来)
network.host: 0.0.0.0
# 服务监听端口
http.port: 10200
# 集群通讯端口
# es7版本：transport.tcp.port:
# es8版本有了变化；
transport.port: 10300
###########[存储配置]#################
# 数据存储路径\日志存储路径配置
path.data: /tools/es8/data/
path.logs: /tools/es8/log/
###########[性能配置]#################
# 锁定物理内存，不允许使用交换分区swap
bootstrap.memory_lock: true
###########[安全配置]#################
# 开启安全组件功能（es8.x版本默认就是开启的）
xpack.security.enabled: true
# 节点间通信 (Transport层) ,
xpack.security.transport.ssl.enabled: true
# 验证证书是否过期，但是不验证CN；
xpack.security.transport.ssl.verification_mode: certificate
xpack.security.transport.ssl.certificate: /tools/es8/elasticsearch-8.18.8/config/certs/es.crt
xpack.security.transport.ssl.key: /tools/es8/elasticsearch-8.18.8/config/certs/es.key
xpack.security.transport.ssl.certificate_authorities: /tools/es8/elasticsearch-8.18.8/config/certs/ca.crt
# HTTP API (REST层) ==========
xpack.security.http.ssl.enabled: true
# 是否要求客户端提供证书进行双向加密，[双向加密；required][单向加密：none]
xpack.security.http.ssl.client_authentication: none
xpack.security.http.ssl.certificate: /tools/es8/elasticsearch-8.18.8/config/certs/es.crt
xpack.security.http.ssl.key: /tools/es8/elasticsearch-8.18.8/config/certs/es.key
xpack.security.http.ssl.certificate_authorities: /tools/es8/elasticsearch-8.18.8/config/certs/ca.crt
内存调优：设置为1024m,否则两个集群起不来
# 为了学习多实例部署，我们调整为：1024m，就是1g；不然另一个集群起不来；
[root@es01 ~ ]# vim /tools/es8/elasticsearch-8.18.8/config/jvm.options
......
-Xms1024m # 启动java虚拟机【JVM】时必须占用的内存大小；
-Xmx1024m # 运行java虚拟机【JVM】时最大使用内存限制；
......
-Xms512m
-Xmx512m
4，生成证书
· 创建证书目录
注意：必须在安装目录的config目录下创建；否则会无法启动
[root@es01 ~ ]# mkdir /tools/es8/elasticsearch-8.18.8/config/certs/
[root@es01 ~ ]# cd /tools/es8/elasticsearch-8.18.8/config/certs/
· 生成证书
1，生成CA证书
# 创建 CA 私钥 (2048位)，生成ca证书有效期10年；
[root@es01 certs ]# openssl req -x509 -newkey rsa:4096 -sha256 -days 3650 -nodes \
-subj "/C=CN/ST=Beijing/L=Beijing/O=bakwite/CN=Elasticsearch Root CA" \
-keyout ca.key -out ca.crt
2，生成ElasticSearch集群通讯证书
# 生成集群节点通讯证书的私钥与请求文件
[root@es01 certs ]# openssl req -newkey rsa:4096 -nodes -sha256 \
-subj "/C=CN/ST=Beijing/L=Beijing/O=bakwite/CN=es-cluster" \
-addext "subjectAltName=DNS:es01,DNS:es02,DNS:es03,IP:10.0.0.101,IP:10.0.0.102,IP:10.0.0.103,IP:127.0.0.1" \
-keyout es.key -out es.csr
# 生成集群节点通讯证书
[root@es01 certs ]# openssl x509 -req -in es.csr -CA ca.crt -CAkey ca.key -CAcreateserial \
-days 365 -out es.crt \
-extfile <(printf "subjectAltName=DNS:es01,DNS:es02,DNS:es03,IP:10.0.0.101,IP:10.0.0.102,IP:10.0.0.103,IP:127.0.0.1")
3，生成ElasticSearch客户端通讯证书
# 生成通用客户端证书（适用于所有客户端）
[root@es01 certs ]# openssl req -newkey rsa:4096 -nodes -sha256 \
-subj "/C=CN/ST=Beijing/L=Beijing/O=bakwite/CN=Es Client" \
-addext "extendedKeyUsage=clientAuth" \
-keyout client.key -out client.csr
[root@es01 certs ]# openssl x509 -req -in client.csr -CA ca.crt -CAkey ca.key \
-days 365 -out client.crt \
-extfile <(printf "extendedKeyUsage=clientAuth")
4，查看证书
[root@es01 certs ]# ls -l
total 32
-rw-r--r-- 1 root root 2029 Dec 3 04:24 ca.crt
-rw------- 1 root root 3268 Dec 3 04:24 ca.key
-rw-r--r-- 1 root root 2017 Dec 3 04:25 client.crt
-rw-r--r-- 1 root root 1732 Dec 3 04:25 client.csr
-rw------- 1 root root 3268 Dec 3 04:25 client.key
-rw-r--r-- 1 root root 2061 Dec 3 04:24 es.crt
-rw-r--r-- 1 root root 1777 Dec 3 04:24 es.csr
-rw------- 1 root root 3272 Dec 3 04:24 es.key
5，拷贝到其他节点
· 将es8拷贝到其他节点
[root@es01 ~ ]# scp -r /tools/es8 10.0.0.102:/tools/
[root@es01 ~ ]# scp -r /tools/es8 10.0.0.103:/tools/
· 节点目录授权
[root@es01 ~ ]# chown -R elasticsearch.elasticsearch /tools/es8
[root@es02 ~ ]# chown -R elasticsearch.elasticsearch /tools/es8
[root@es03 ~ ]# chown -R elasticsearch.elasticsearch /tools/es8
· 修改配置文件
# es02节点
[root@es02 ~ ]# vim /tools/es8/elasticsearch-8.18.8/config/elasticsearch.yml
......
node.name: es02
# es03节点
[root@es03 ~ ]# vim /tools/es8/elasticsearch-8.18.8/config/elasticsearch.yml
......
node.name: es03
6，配置system启动
· 编辑system文件
[root@es01:~]# vim /lib/systemd/system/es8.service
[Unit]
Description=Elasticsearch Service
After=network.target
[Service]
Type=simple
User=elasticsearch
Group=elasticsearch
# 环境变量 - 正确
Environment="ES_HOME=/tools/es8/elasticsearch-8.18.8/"
Environment="ES_PATH_CONF=/tools/es8/elasticsearch-8.18.8/config"
Environment="ES_JAVA_HOME=/tools/es8/elasticsearch-8.18.8/jdk"
# 修复：创建PID目录并设置权限
PermissionsStartOnly=true
# 修复：使用标准PID路径
ExecStart=/tools/es8/elasticsearch-8.18.8/bin/elasticsearch -p /tools/es8/log/elasticsearch.pid
# 修复：停止时清理PID文件
ExecStop=/bin/rm -f /tools/es8/log/elasticsearch.pid
# 资源限制
LimitNOFILE=65536
# 锁定物理内存
LimitMEMLOCK=infinity
# 重启策略
Restart=on-failure
RestartSec=60s
[Install]
WantedBy=multi-user.target
· 传输给其他节点
[root@es01 ~ ]# scp /lib/systemd/system/es8.service 10.0.0.102:/lib/systemd/system/
[root@es01 ~ ]# scp /lib/systemd/system/es8.service 10.0.0.103:/lib/systemd/system/
· 启动es8集群
1，启动集群
systemctl daemon-reload
systemctl enable --now es8.service
2，查看启动状态
[root@es01 ~ ]# ss -tnulp
7，设置用户密码
我们统一设置为：123456
[root@es01 ~ ]# /tools/es8/elasticsearch-8.18.8/bin/elasticsearch-setup-passwords interactive
******************************************************************************
Note: The 'elasticsearch-setup-passwords' tool has been deprecated. This command will be removed in a future release.
******************************************************************************
Initiating the setup of passwords for reserved users elastic,apm_system,kibana,kibana_system,logstash_system,beats_system,remote_monitoring_user.
You will be prompted to enter passwords as the process progresses.
Please confirm that you would like to continue [y/N]y
Enter password for [elastic]:
Reenter password for [elastic]:
Enter password for [apm_system]:
Reenter password for [apm_system]:
Enter password for [kibana_system]:
Reenter password for [kibana_system]:
Enter password for [logstash_system]:
Reenter password for [logstash_system]:
Enter password for [beats_system]:
Reenter password for [beats_system]:
Enter password for [remote_monitoring_user]:
Reenter password for [remote_monitoring_user]:
Changed password for user [apm_system]
Changed password for user [kibana_system]
Changed password for user [kibana]
Changed password for user [logstash_system]
Changed password for user [beats_system]
Changed password for user [remote_monitoring_user]
Changed password for user [elastic]
8，测试集群
· 查看集群节点状态
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET https://10.0.0.101:10200/_cluster/health?pretty
{
"cluster_name" : "wa-es8-cluster",
"status" : "green",
"timed_out" : false,
"number_of_nodes" : 3,
"number_of_data_nodes" : 3,
"active_primary_shards" : 3,
"active_shards" : 6,
"relocating_shards" : 0,
"initializing_shards" : 0,
"unassigned_shards" : 0,
"unassigned_primary_shards" : 0,
"delayed_unassigned_shards" : 0,
"number_of_pending_tasks" : 0,
"number_of_in_flight_fetch" : 0,
"task_max_waiting_in_queue_millis" : 0,
"active_shards_percent_as_number" : 100.0
}
· 查看集群列表
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET https://10.0.0.101:10200/_cat/nodes?v
ip heap.percent ram.percent cpu load_1m load_5m load_15m node.role master name
10.0.0.212 50 97 1 0.00 0.00 0.16 dim * es02
10.0.0.213 53 97 2 0.10 0.08 0.19 dim - es03
10.0.0.101 60 97 1 0.02 0.04 0.15 dim - es01
九、跨集群索引迁移
1，编辑新集群配置文件
# 新集群修改配置文件
[root@es01 ~ ]# vim /tools/es8/elasticsearch-8.18.8/config/elasticsearch.yml
[root@es02 ~ ]# vim /tools/es8/elasticsearch-8.18.8/config/elasticsearch.yml
[root@es03 ~ ]# vim /tools/es8/elasticsearch-8.18.8/config/elasticsearch.yml
......
# 设置允许向【旧版本es】节点中迁移索引
reindex.remote.whitelist: ["10.0.0.101:9200", "10.0.0.102:9200", "10.0.0.103:9200"]
# 设置不验证远程主机【旧集群/ES7】的CA证书
reindex.ssl.verification_mode: none
# 重启新集群
[root@es01 ~ ]# systemctl restart es8.service
[root@es02 ~ ]# systemctl restart es8.service
[root@es03 ~ ]# systemctl restart es8.service
2，新集群创建索引
· 编辑json文件
[root@es01 ~ ]# vim product.json
{
"aliases":{
"wa_alias_01": {},
"wa_alias_02": {},
"wa_alias_03": {}
},
"mappings": {
"properties": {
"product_name": { "type": "keyword" },
"inventory": { "type": "integer" },
"price": { "type": "float" },
"weight": {
"type": "short",
"index": false
},
"tags": {
"type": "keyword",
"doc_values": true
},
"merchant_ip": { "type": "ip" },
"business_address": { "type": "geo_point" },
"delivery_area": { "type": "geo_shape" },
"product_upload_time": {
"type": "date",
"format": "yyyy-MM-dd HH:mm:ss||epoch_millis"
},
"app_version": { "type": "version" },
"is_up": { "type": "boolean" },
"specifications": {
"type": "object",
"properties": {
"color": { "type": "keyword" },
"size": { "type": "keyword" },
"brand": { "type": "keyword" },
"material": { "type": "text" }
}
},
"comment": {
"type": "text",
"fields": {
"keyword": {
"type": "keyword",
"ignore_above": 256
}
},
"analyzer": "standard"
}
}
},
"settings":{
"number_of_shards": 3,
"number_of_replicas": 1
}
}
· curl命令创建索引
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT "https://10.0.0.101:10200/bakwite_index01?pretty" -H 'Content-Type: application/json' --data-binary @./product.json
3，跨集群索引迁移
[root@es01 ~ ]# curl -k -u elastic:123456 -X POST "https://10.0.0.101:10200/_reindex?pretty" -H 'Content-Type: application/json' -d'
{
"source": {
"remote": {
"host": "https://10.0.0.101:9200",
"username": "elastic",
"password": "123456"
},
"index": "bakwite_index01"
},
"dest": {
"index": "bakwite_index01"
}
}
'
查看结果
{
"took" : 487,
"timed_out" : false,
"total" : 21,
"updated" : 0,
"created" : 21, # 迁移成功
"deleted" : 0,
"batches" : 1,
"version_conflicts" : 0,
"noops" : 0,
"retries" : {
"bulk" : 0,
"search" : 0
},
"throttled_millis" : 0,
"requests_per_second" : -1.0,
"throttled_until_millis" : 0,
"failures" : [ ]
}
4，关闭旧集群
systemctl stop elasticsearch.service
systemctl disable elasticsearch.service
5，新集群配置文件还原
# 新集群修改配置文件,将运行迁移的参数注释掉
[root@es01 ~ ]# vim /tools/es8/elasticsearch-8.18.8/config/elasticsearch.yml
[root@es02 ~ ]# vim /tools/es8/elasticsearch-8.18.8/config/elasticsearch.yml
[root@es03 ~ ]# vim /tools/es8/elasticsearch-8.18.8/config/elasticsearch.yml
......
###########################################
# 允许跨版本索引迁移配置
#reindex.remote.whitelist: ["10.0.0.101:9200", "10.0.0.212:9200", "10.0.0.213:9200"]
#reindex.ssl.verification_mode: none
# 重启系统
[root@es01 ~ ]# systemctl restart es8.service
[root@es02 ~ ]# systemctl restart es8.service
[root@es03 ~ ]# systemctl restart es8.service
6，查看集群状态
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET https://10.0.0.101:10200/_cat/nodes?v
ip heap.percent ram.percent cpu load_1m load_5m load_15m node.role master name
10.0.0.212 50 97 1 0.00 0.00 0.16 dim * es02
10.0.0.213 53 97 2 0.10 0.08 0.19 dim - es03
10.0.0.101 60 97 1 0.02 0.04 0.15 dim - es01
十、ES的用户与权限管理(RBAC)
1，ES的权限管理流程
| 流程 |
|---|
| :one:创建角色，绑定权限； |
| :two:创建用户，绑定角色； |
2，创建用户
· 集群监控员
1，创建角色
| 一级字段 | 二级字段 | 三级字段 | 解释说明 |
|---|---|---|---|
| cluster | 针对集群有什么权限 | ||
| monitor | 【集群级别的监控】；集群节点列表的监控权限URI是【xxxx/nodes】 | ||
| cluster:monitor/main | 集群健康检查的监控权限：URI是【xxxx/_health】 | ||
| indices | 表示针对索引有什么操作设置 | ||
| names | 针对的具体索引，【*】表示所有索引 | ||
| privileges | 表示针对索引有什么权限 | ||
| monitor | 【索引级别的监控】； | ||
| view_index_metadata | 【查看】索引的元数据信息的权限； 【mappings】【settings】等字段的查看 |
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT 'https://10.0.0.101:10200/_security/role/cluster_wa' -H 'Content-Type: application/json' -d '
{
"cluster": ["monitor", "cluster:monitor/main"],
"indices": [
{
"names": ["*"],
"privileges": ["monitor", "view_index_metadata"]
}
]
}'
2，创建用户【wa_jiankong】
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT 'https://10.0.0.101:10200/_security/user/wa_jiankong' -H 'Content-Type: application/json' -d '
{
"password": "123456",
"roles": ["cluster_wa"],
"full_name": "Cluster Monitor",
"email": "bakwite@bakwite.com"
}'
3，验证用户权限
# 测试监控用户查看集群状态
[root@es01 ~ ]# curl -k -u wa_jiankong:123456 -X GET 'https://10.0.0.101:10200/_cluster/health?pretty'
{
"cluster_name" : "wa-es8-cluster",
"status" : "green",
"timed_out" : false,
"number_of_nodes" : 3,
"number_of_data_nodes" : 3,
"active_primary_shards" : 80,
"active_shards" : 160,
"relocating_shards" : 0,
"initializing_shards" : 0,
"unassigned_shards" : 0,
"unassigned_primary_shards" : 0,
"delayed_unassigned_shards" : 0,
"number_of_pending_tasks" : 0,
"number_of_in_flight_fetch" : 0,
"task_max_waiting_in_queue_millis" : 0,
"active_shards_percent_as_number" : 100.0
}
# 测试监控用户查看索引列表
[root@es01 ~ ]# curl -k -u wa_jiankong:123456 -X GET 'https://10.0.0.101:10200/_cat/indices'
# 测试监控用户查看节点状态
[root@es01 ~ ]# curl -k -u wa_jiankong:123456 -X GET 'https://10.0.0.101:10200/_cat/nodes?v'
ip heap.percent ram.percent cpu load_1m load_5m load_15m node.role master name
10.0.0.101 31 95 1 0.00 0.00 0.00 dim - es02
10.0.0.102 67 94 1 0.00 0.00 0.00 dim - es01
10.0.0.103 50 96 0 0.00 0.02 0.00 dim * es03
· 日志开发者用户
1，创建角色
| 一级字段 | 二级 字段 | 三级字段 | 说明 |
|---|---|---|---|
| cluster | monitor | 集群监控权限；可以查看集群节点列表 | |
| indeices | names | 针对哪些索引有权限 | |
| privileges | read | 读取数据的权限 | |
| write | 写入数据的权限 | ||
| create_index | 创建索引的权限（必须是bakwite开头的索引名） | ||
| view_index_metadata | 索引的元数据查看权限（mappings、settings等） | ||
| manage | 管理索引的增删改查 | ||
| allow_restricted_indices | 是否允许访问以【.】开头的隐藏索引？ |
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT 'https://10.0.0.101:10200/_security/role/log_dev_wa' -H 'Content-Type: application/json' -d '
{
"cluster": ["monitor"],
"indices": [
{
"names": ["bakwite*"],
"privileges": ["read", "write", "create_index", "view_index_metadata", "manage"],
"allow_restricted_indices": false
},
{
"names": [".kibana*"],
"privileges": ["read", "view_index_metadata"]
}
]
}'
2，创建用户【wa_dev】
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT 'https://10.0.0.101:10200/_security/user/wa_dev' -H 'Content-Type: application/json' -d '
{
"password": "123456",
"roles": ["log_dev_wa"],
"full_name": "Application Developer",
"email": "bakwite@bakwite.com"
}'
3，验证用户权限
创建索引验证：只能创建bakwite开头的索引
# 创建索引验证(只能创建bakwite开头的名称)
[root@es01 ~ ]# curl -k -u wa_dev:123456 -X PUT "https://10.0.0.101:10200/test01?pretty"
{
"error" : {
"root_cause" : [
{
"type" : "security_exception",
"reason" : "action [indices:admin/create] is unauthorized for user [wa_dev] with effective roles [log_dev_wa] on indices [test01], this action is granted by the index privileges [create_index,manage,all]"
}
],
"type" : "security_exception",
"reason" : "action [indices:admin/create] is unauthorized for user [wa_dev] with effective roles [log_dev_wa] on indices [test01], this action is granted by the index privileges [create_index,manage,all]"
},
"status" : 403
}
# 创建bakwite开头的索引测试
[root@es01 ~ ]# curl -k -u wa_dev:123456 -X PUT "https://10.0.0.101:10200/bakwite-01?pretty"
{
"acknowledged" : true,
"shards_acknowledged" : true,
"index" : "bakwite-01"
}
· 创建只读（搜索）用户
1，创建角色
| 一级字段 | 二级字段 | 三级字段 | 说明 |
|---|---|---|---|
| applications | application | kibana-.kibana | 应用程序权限配置；【kibana-.kibana】：应用程序名称 |
| privileges | 在kibana中的权限 | ||
| feature_discover.read | 【Discover】页面功能的只读功能 | ||
| feature_dashboard.read | 【dashboard】页面的只读功能 | ||
| resources | space:default | 表示权限应用到哪些资源中；【space:default】默认空间 |
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT 'https://10.0.0.101:10200/_security/role/only_read_wa' -H 'Content-Type: application/json' -d '
{
"indices": [
{
"names": ["bakwite*"],
"privileges": ["read", "view_index_metadata"]
}
],
"applications": [
{
"application": "kibana-.kibana",
"privileges": ["feature_discover.read", "feature_dashboard.read"],
"resources": ["space:default"]
}
]
}'
2，创建用户【wa_read】
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT 'https://10.0.0.101:10200/_security/user/wa_read' -H 'Content-Type: application/json' -d '
{
"password": "123456",
"roles": ["only_read_wa"],
"full_name": "Read-Only Analyst",
"email": "bakwite@bakwite.com"
}'
3，验证用户权限
# 登录kibana查看验证
· 索引数据管理员
1，创建角色
| 一级字段 | 二级字段 | 三级字段 | 说明 |
|---|---|---|---|
| cluster | manage_index_templates | 增删改查索引模板 | |
| manage_ilm | 增删改查索引的生命周期 | ||
| monitor | 监控集群主机列表 | ||
| indices | names | 索引名称 | |
| privileges | monitor | 监控索引 | |
| view_index_metadata | 查看索引元数据（mapping、setting） | ||
| all | 所有权限 |
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT 'https://10.0.0.101:10200/_security/role/index_wa' -H 'Content-Type: application/json' -d '
{
"cluster": ["manage_index_templates", "manage_ilm", "monitor"],
"indices": [
{
"names": ["bakwite*","test*"],
"privileges": ["all"]
},
{
"names": ["*"],
"privileges": ["monitor", "view_index_metadata"]
}
]
}'
2，创建用户
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT 'https://10.0.0.101:10200/_security/user/wa_index' -H 'Content-Type: application/json' -d '
{
"password": "123456",
"roles": ["index_wa"],
"full_name": "index Analyst",
"email": "bakwite@bakwite.com"
}'
3，验证用户权限
# 创建一个test开头的索引
[root@es01 ~ ]# curl -k -u wa_index:123456 -X PUT "https://10.0.0.101:10200/test01?pretty"
{
"acknowledged" : true,
"shards_acknowledged" : true,
"index" : "test01"
}
· kibana仪表盘查看用户
1，创建角色
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT 'https://10.0.0.101:10200/_security/role/kibana_read_wa' -H 'Content-Type: application/json' -d '
{
"cluster": [],
"indices": [
{
"names": ["kibana-metrics-*", "web-analytics-*",".kibana*"],
"privileges": ["read", "view_index_metadata"]
}
],
"applications": [
{
"application": "kibana-.kibana",
"privileges": [
"feature_discover.read",
"feature_dashboard.read",
"feature_visualize.read",
"feature_canvas.read",
"feature_timelion.read",
"feature_maps.read",
"feature_ml.read"
],
"resources": ["space:default"]
}
]
}'
2，创建用户
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT 'https://10.0.0.101:10200/_security/user/wa_read_kibana' -H 'Content-Type: application/json' -d '
{
"password": "123456",
"roles": ["kibana_read_wa"],
"full_name": "Read-Only Analyst",
"email": "bakwite@bakwite.com"
}'
3，验证用户权限
# 登录kibana
· kibana仪表盘编辑用户
1，创建角色
| 一级字段 | 二级字段 | 三级字段 | 说明 |
|---|---|---|---|
| applications | application | kibana-.kibana | 对接的软件名【kubana-*】这样写 |
| privileges | feature_discover.all | 探索数据 | |
| feature_dashboard.all | 仪表盘 | ||
| feature_visualize.all | 操作可视化 | ||
| feature_canvas.all | 动态看板功能 | ||
| feature_timelion.all | 时序分析工具功能 | ||
| feature_maps.all | 地图功能 | ||
| "feature_dev_tools.all" | 开发工具 | ||
| ui:*.all | 界面通用权限 | ||
| api:*.read | API读取权限 |
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT 'https://10.0.0.101:10200/_security/role/dash_test03' -H 'Content-Type: application/json' -d '
{
"cluster": ["monitor"],
"indices": [
{
"names": ["bakwite*",".kibana*"],
"privileges": ["read", "view_index_metadata"]
}
],
"applications": [
{
"application": "kibana-*",
"privileges": [
"feature_discover.all",
"feature_dashboard.all",
"feature_visualize.all",
"feature_canvas.all",
"feature_timelion.all",
"feature_maps.all",
"feature_ml.all",
"ui:*.all",
"api:*.read"
],
"resources": ["*"]
}
]
}'
2，创建用户
[root@es01 ~ ]# curl -k -u elastic:123456 -X PUT 'https://10.0.0.101:10200/_security/user/test03_dash' -H 'Content-Type: application/json' -d '
{
"password": "123456",
"roles": ["dash_test03"],
"full_name": "Read-Only Analyst",
"email": "bakwite@bakwite.com"
}'
3，测试用户权限
# 登录kibana
3，删除用户与角色
# 删除角色
[root@es01 ~ ]# curl -k -u elastic:123456 -X DELETE 'https://10.0.0.101:10200/_security/role/index_wa'
# 删除用户
[root@es01 ~ ]# curl -k -u elastic:123456 -X DELETE 'https://10.0.0.101:10200/_security/user/wa_index'
4，查看用户与角色
· 查看用户
1，查看所有用户
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:10200/_security/user?pretty'
{
"elastic" : {
"username" : "elastic",
"roles" : [
"superuser"
],
"full_name" : null,
"email" : null,
"metadata" : {
"_reserved" : true
},
"enabled" : true
......
"test03_dash" : {
"username" : "test03_dash",
"roles" : [
"dash_test03"
],
"full_name" : "Read-Only Analyst",
"email" : "bakwite@bakwite.com",
"metadata" : { },
"enabled" : true
}
}
2，查看单个用户
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:10200/_security/user/test03_dash?pretty'
{
"test03_dash" : {
"username" : "test03_dash",
"roles" : [
"dash_test03"
],
"full_name" : "Read-Only Analyst",
"email" : "bakwite@bakwite.com",
"metadata" : { },
"enabled" : true
}
}
· 查看角色
[root@es01 ~ ]# curl -k -u elastic:123456 -X GET 'https://10.0.0.101:10200/_security/role/dash_test03?pretty'
{
"dash_test03" : {
"cluster" : ["monitor"],
"indices" : [{
"names" : ["bakwite*",".kibana*"],
"privileges" : ["read", "view_index_metadata"],
"allow_restricted_indices" : false
} ],
"applications" : [
{
"application" : "kibana-.kibana",
"privileges" : [
"feature_discover.all",
"feature_dashboard.all",
"feature_visualize.all",
"feature_canvas.all",
"feature_timelion.all",
"feature_maps.all",
"feature_ml.all",
"ui:*.all",
"api:*.read"
],
"resources" : [
"*"
]
}
],
"run_as" : [ ],
"metadata" : { },
"transient_metadata" : {"enabled" : true}
}
}
十一、ES汇总
1，ES集群角色
# 集群角色
[root@es01 ~ ]# vim /tools/es8/elasticsearch-8.18.8/config/elasticsearch.yml
...
node.roles: ["master","data","ingest"]
# node.roles: []
| 角色 | 作用说明 |
|---|---|
| master | 【管理节点】：各个节点的状态管理与监控，数据存储到哪里、与数据状态、权限管理、数据类型、索引元数据管理 |
| data | 【数据存储节点】：存储数据（如果小吞吐量，也充当协调节点） |
| ingest | 【数据加工预处理节点】：数据加工预处理，数据合并、排序等工作、格式转换、数据过滤等； |
| 设置为空 | 表示协调节点 |
2，企业ES集群架构
注意：只有跨地域高可用的集群状态下，才使用5个master，否则3个足够用；
| 集群规模 | 节点角色 | 管理数据量 | 配置 | 适用场景 |
|---|---|---|---|---|
| 3台 | 混合角色（master, data, ingest） | 小于1TB | 4-8核/16-32GB | 小型网站 |
| 5-10台 | 3台master 2-7台（data，ingest） |
1TB到10TB | master：2-4核/4-8GB data/ingest：8-16核/32-64GB |
每日GB数据产生 |
| 15-30台 | 3台master 2-4台（ingest） 2-4台（协调） 5-15台（data） |
10TB到100TB | master：2-4核/4-8GB data：16-32核/64-128GB ingest：8-16核/16-32GB |
大型电商 日志平台 实时分析 高并发 复杂查询 |
| 30台+ | 3或5台master 2-4台（ingest） 4-8台（协调） 21+台（data） |
100TB 到 *PB | master：2-4核/4-8GB data：16-32核/64-128GB ingest：8-16核/16-32GB |
海量日志 物联网数据 长期归档 要求极致成本效益 |
3，ES数据流转过程
· 存储流程
客户端请求存储数据流程：假设我们6台ES集群，有一个索引【index01】,主分片为2，副本分片为1；
- 客户端向任意一个节点发起存储请求；（每个节点默认都有【协调器】，可以单独配置）；
- 任意节点的【协调器】，会找到集群的master节点询问该索引【index01】的所有分片位置；
- 获取到分片位置后，协调节点通过文档ID计算该文档要存储到那个分片中；【hash(文档ID) % 分片数量】
- 计算好后，将数据交给ingest数据处理器，将数据处理成可存储格式；（加入元数据信息等操作）；
- 最后，将数据存储到计算好的副本中，同时副本复制数据；存储完成。
· 查询流程
数据查询流程：
- 客户端请求查询到任意一台主机；（每个节点默认都有【协调器】，可以单独配置）；
- 协调器向master节点获取索引分片信息；
- 协调节点判断：数据的主分片和副本分片哪个更清闲，谁清闲就查谁；
- 确定查哪个分片后，优化查询语句，进入数据主机查询数据；
- 协调节点查询后，将数据打包返回给客户端用户；就此查询完毕；
Discussion
评论
